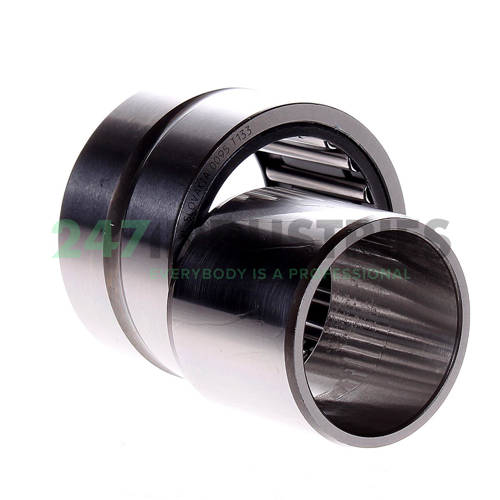

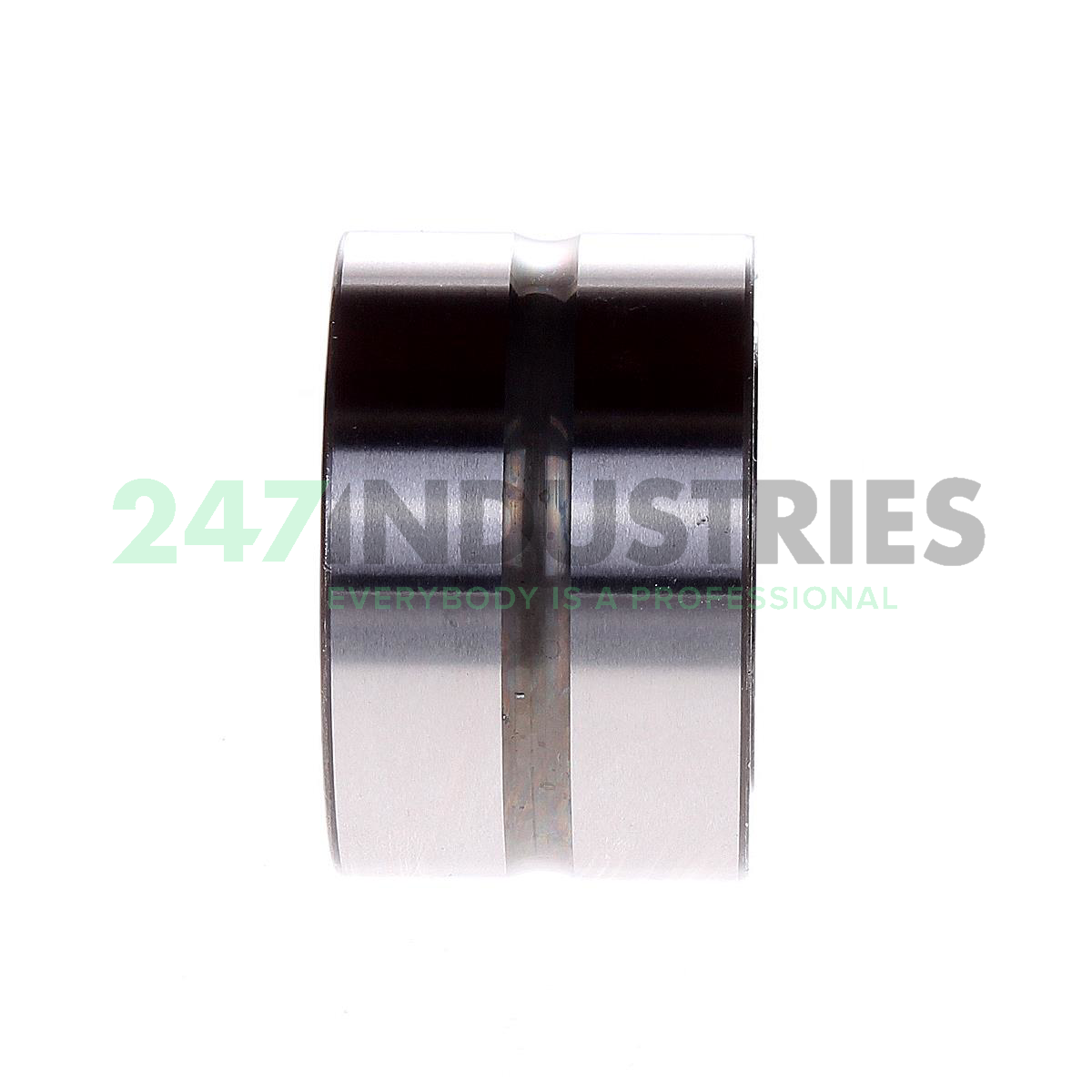

NA6906-XL INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 30
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 74 pcs on Tue 14 Jul
2. Brand INA
3. Item number NA6906-XL INA
4. Also known as 0507441860000
   NA6906

5. EAN 4012802702743
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 71000
2. Radial Dynamic Load Rating Cr (N) 49000
3. Limiting speed (n G) 12600
4. Reference speed (n ϑr) 6300
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NA69..-XL, single row, with inner ring, outer ring with 2 bords

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
3. X-life brochure X-life brochure
