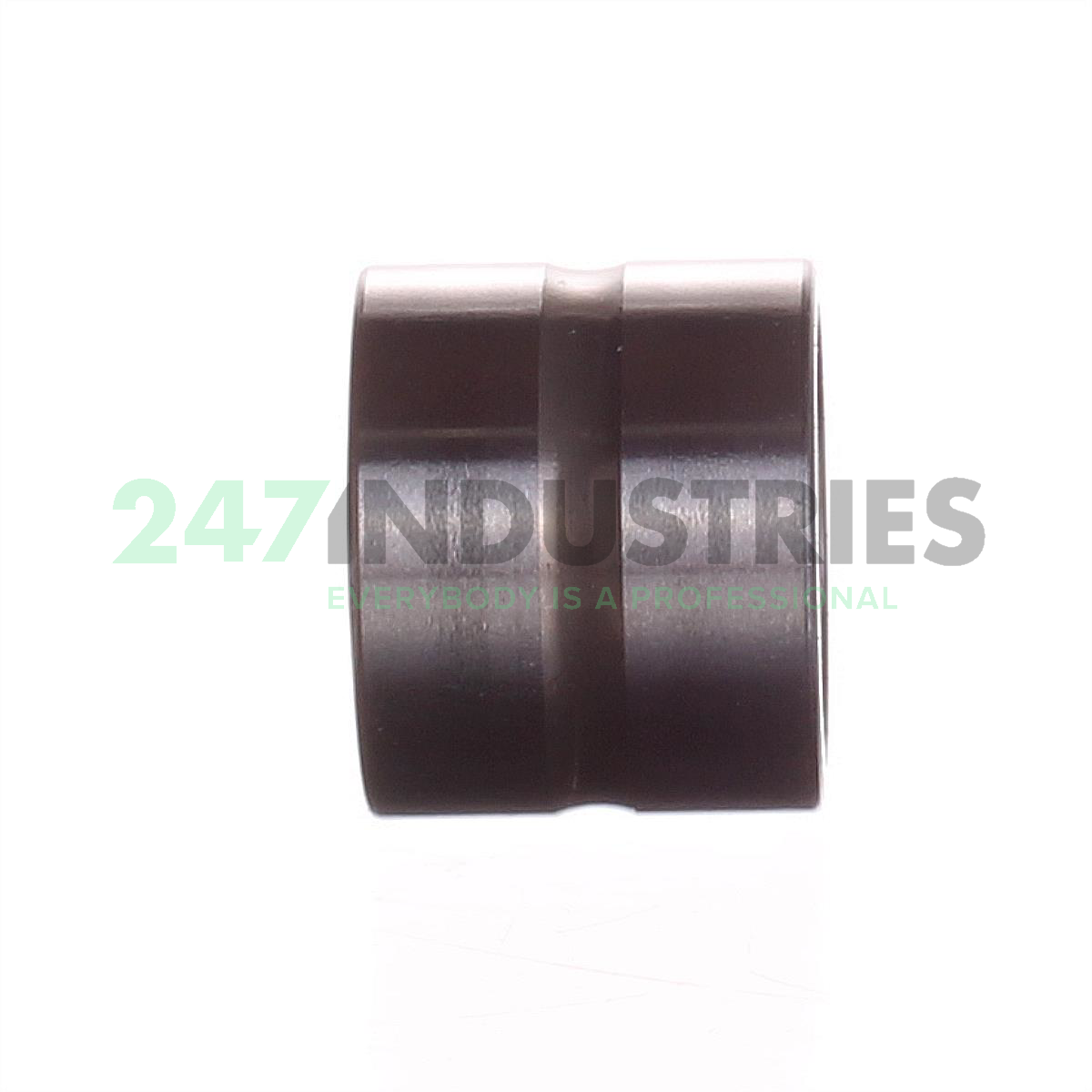

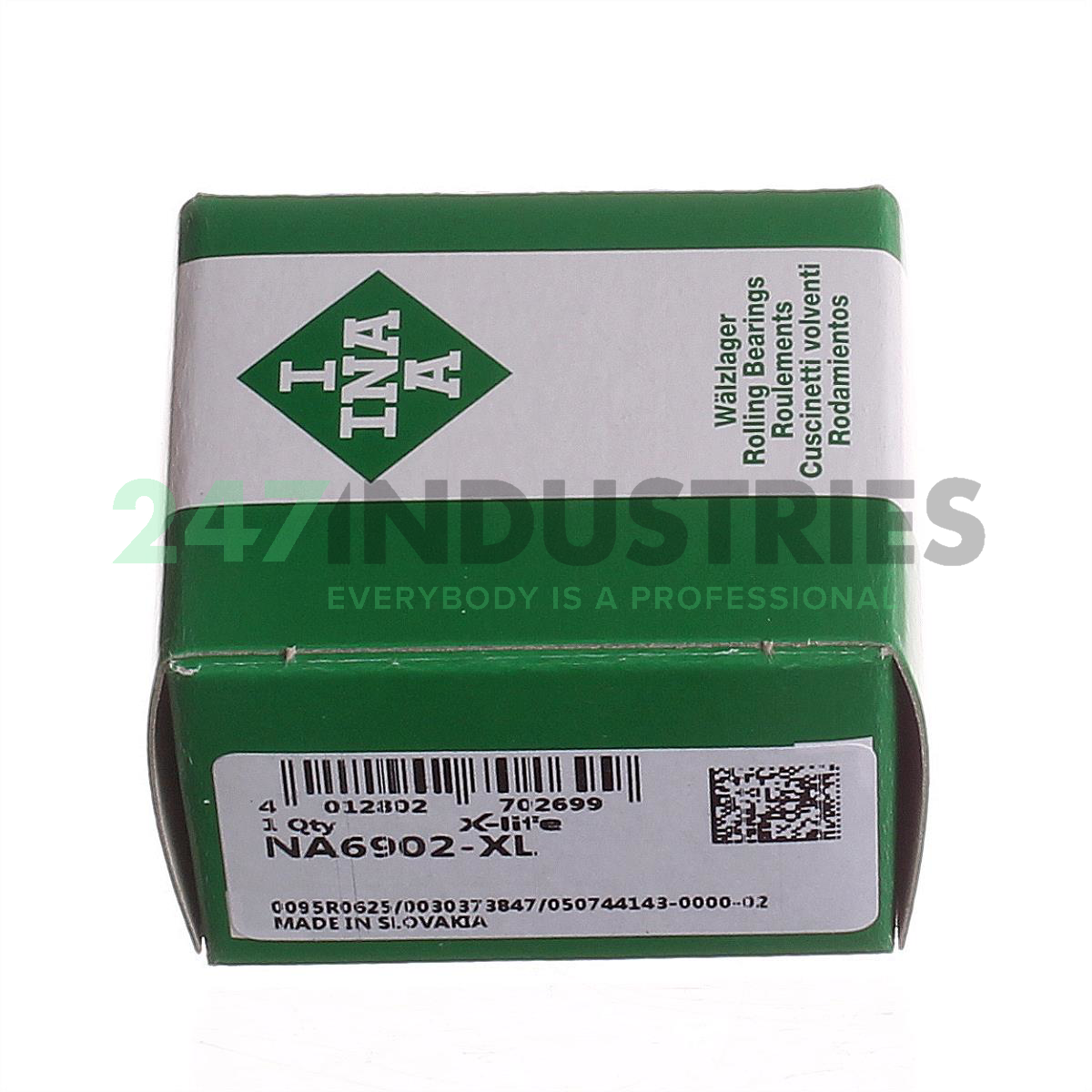

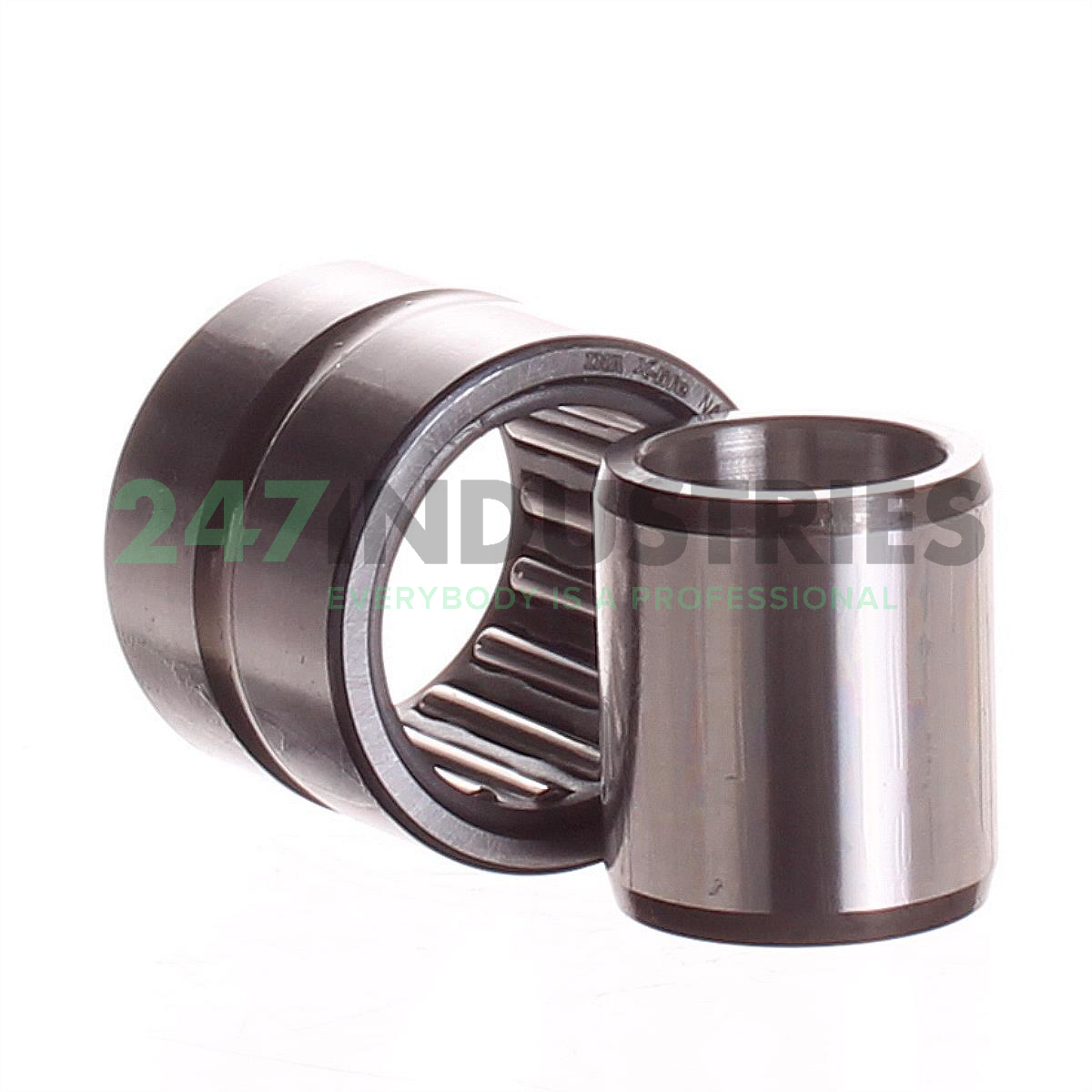

NA6902-XL INA

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 28,00
3. Width (B) MM 23,00
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.9055
7. Width (b) mm 23,00

Suffix description

1. XL X-Life

Technical details

1. Availability 99 pcs
2. Brand INA
3. Item number NA6902-XL INA
4. Also known as 0507441430000
   NA6902

5. EAN 4012802702699
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.064

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25500
2. Radial Dynamic Load Rating Cr (N) 19500
3. Basic static load rating, radial (C 0r) "25500.0000"
4. Limiting speed (n G) "21100.0000"
5. Reference speed (n ϑr) "10900.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearing NA69..-XL, single row, with inner ring, outer ring with 2 bords
