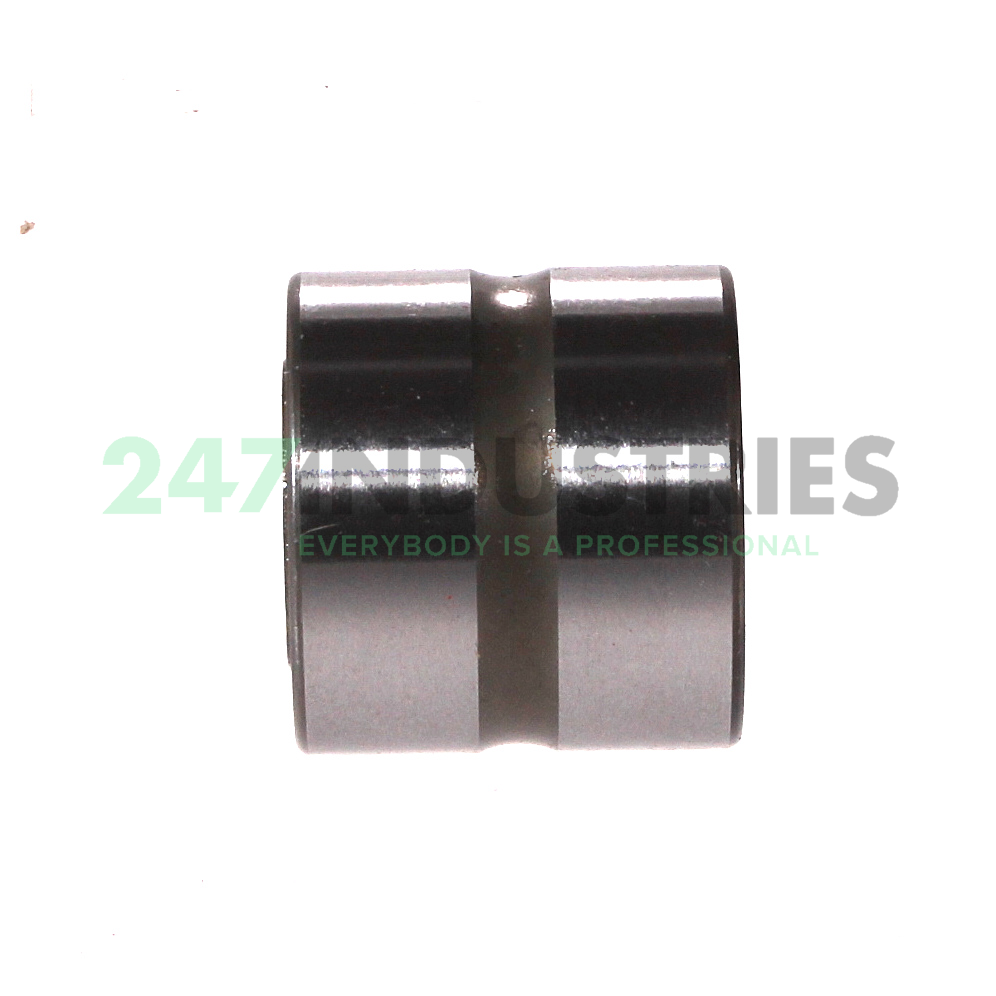

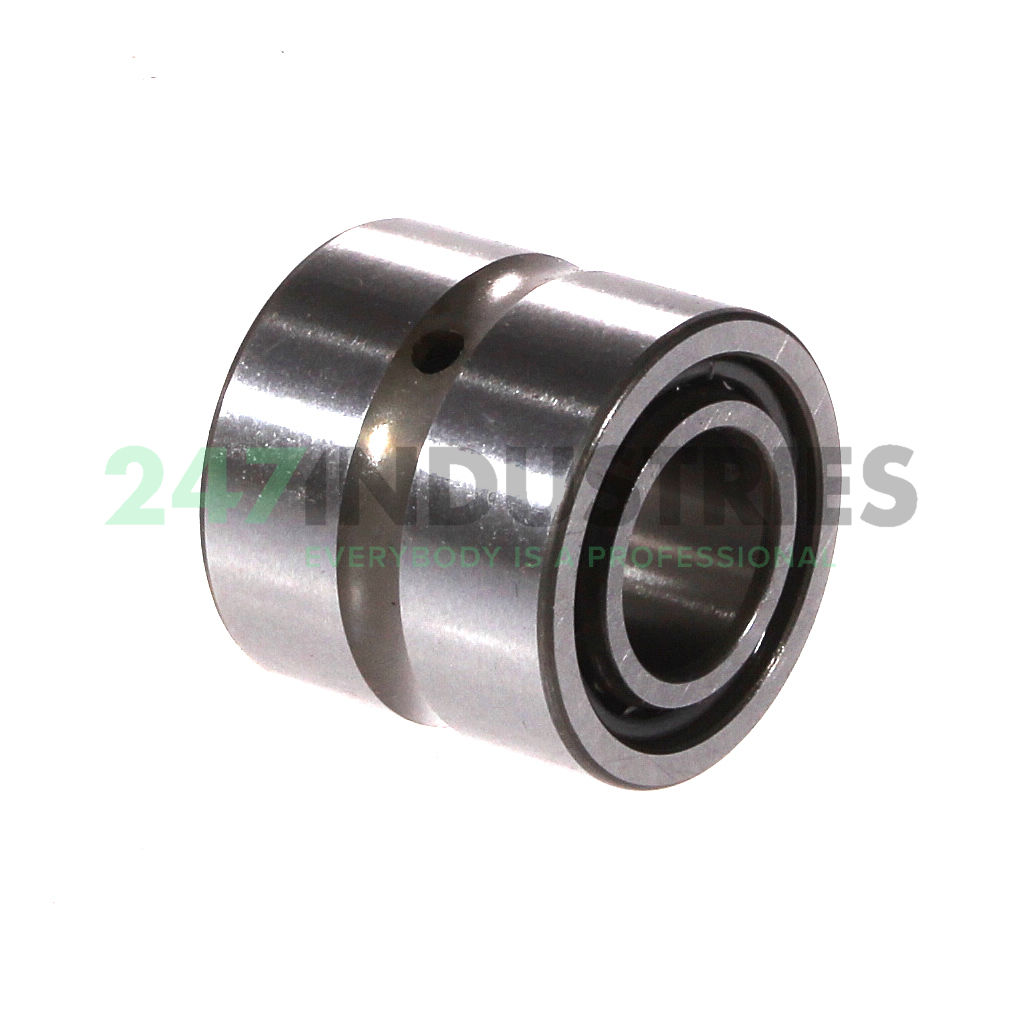

NA6901-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 22
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. XL X-Life

Technical details

1. Availability 456 pcs
2. Brand INA
3. Item number NA6901-XL INA
4. Also known as 0507430070000
   NA6901

5. EAN 4012802732931
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.046

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 21600
2. Radial Dynamic Load Rating Cr (N) 18100
3. Limiting speed (n G) 23200
4. Limiting speed for grease lubrication (n G Grease) 13900
5. Reference speed (n ϑr) 13300
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing NA..-XL

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
3. X-life brochure X-life brochure
