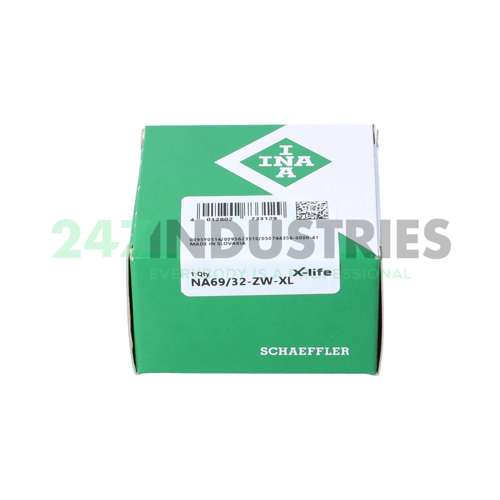

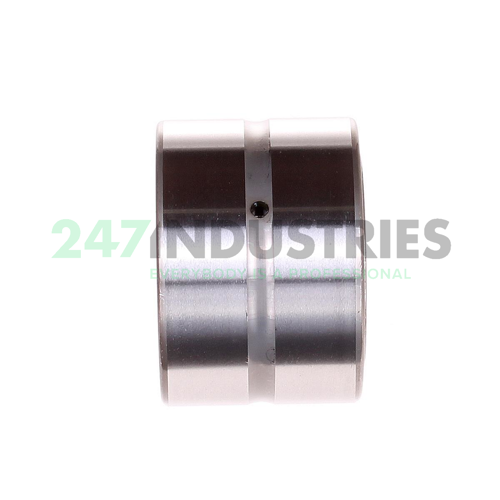

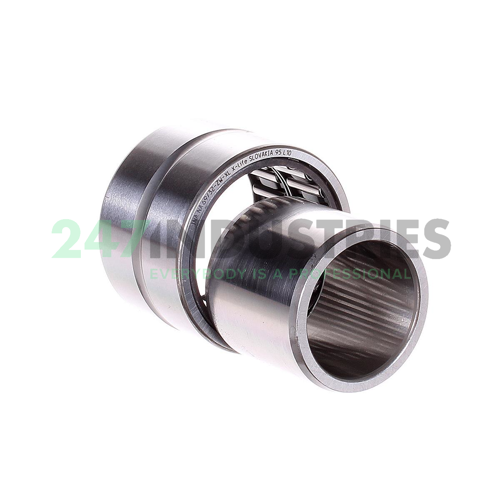

NA69/32-ZW-XL INA

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 52,00
3. Width (B) MM 36,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 2.0472
6. Width (B) Inch 1.4173
7. Width (b) mm 36,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number NA69/32-ZW-XL INA
4. Also known as 0507443560000
   NA69/32-ZW

5. EAN 4012802733129
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.288

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 82000
2. Radial Dynamic Load Rating Cr (N) 53000
3. Basic static load rating, radial (C 0r) "82000.0000"
4. Limiting speed (n G) "11100.0000"
5. Reference speed (n ϑr) "6100.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
