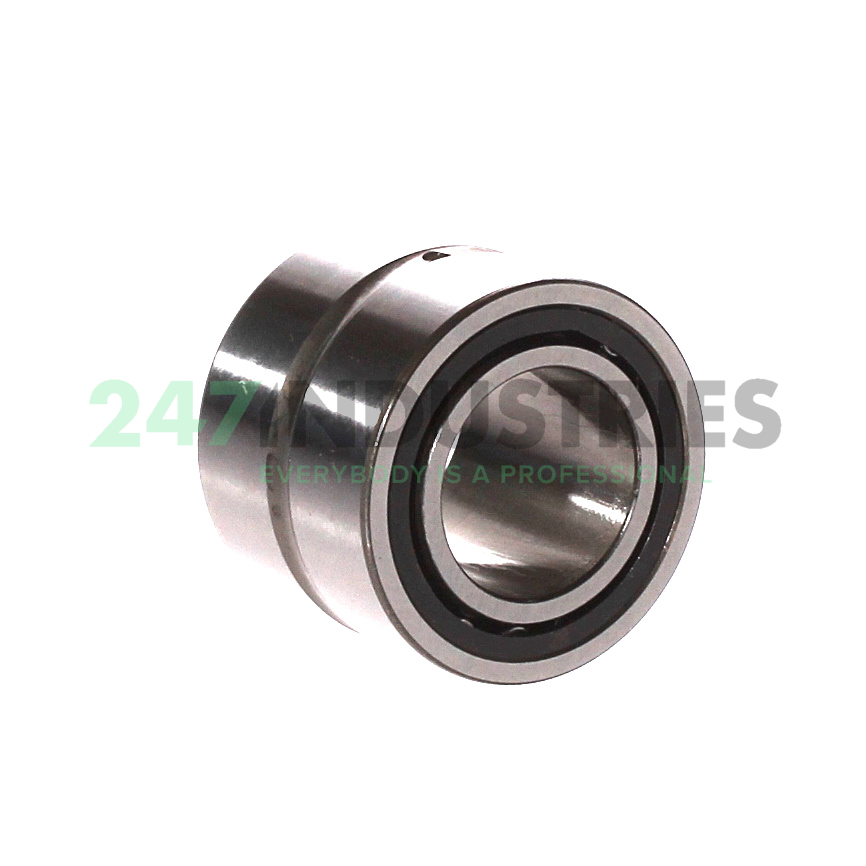

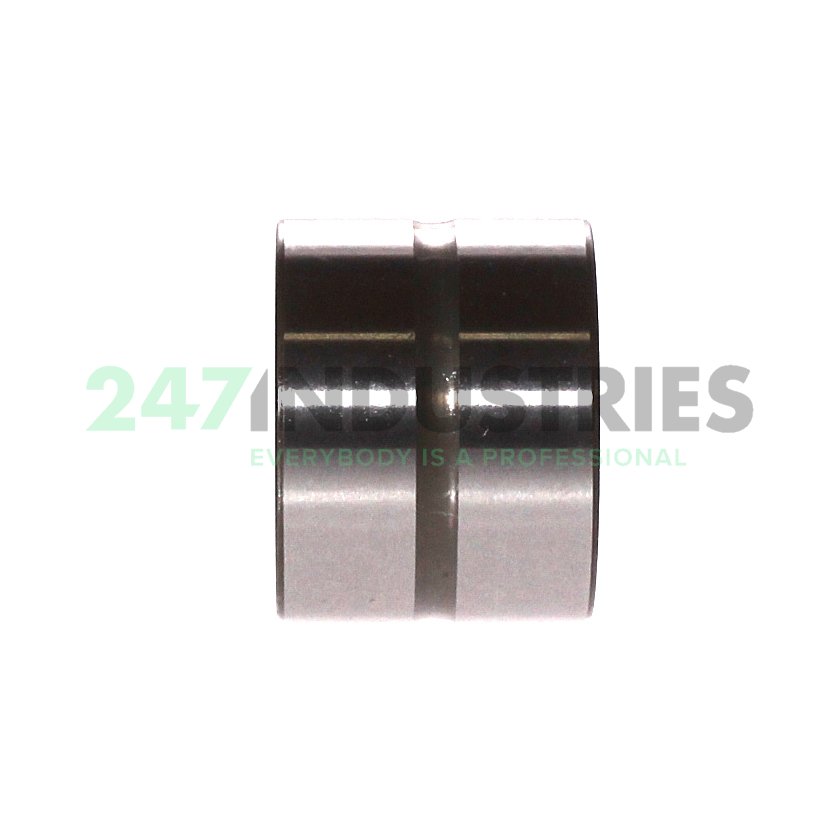

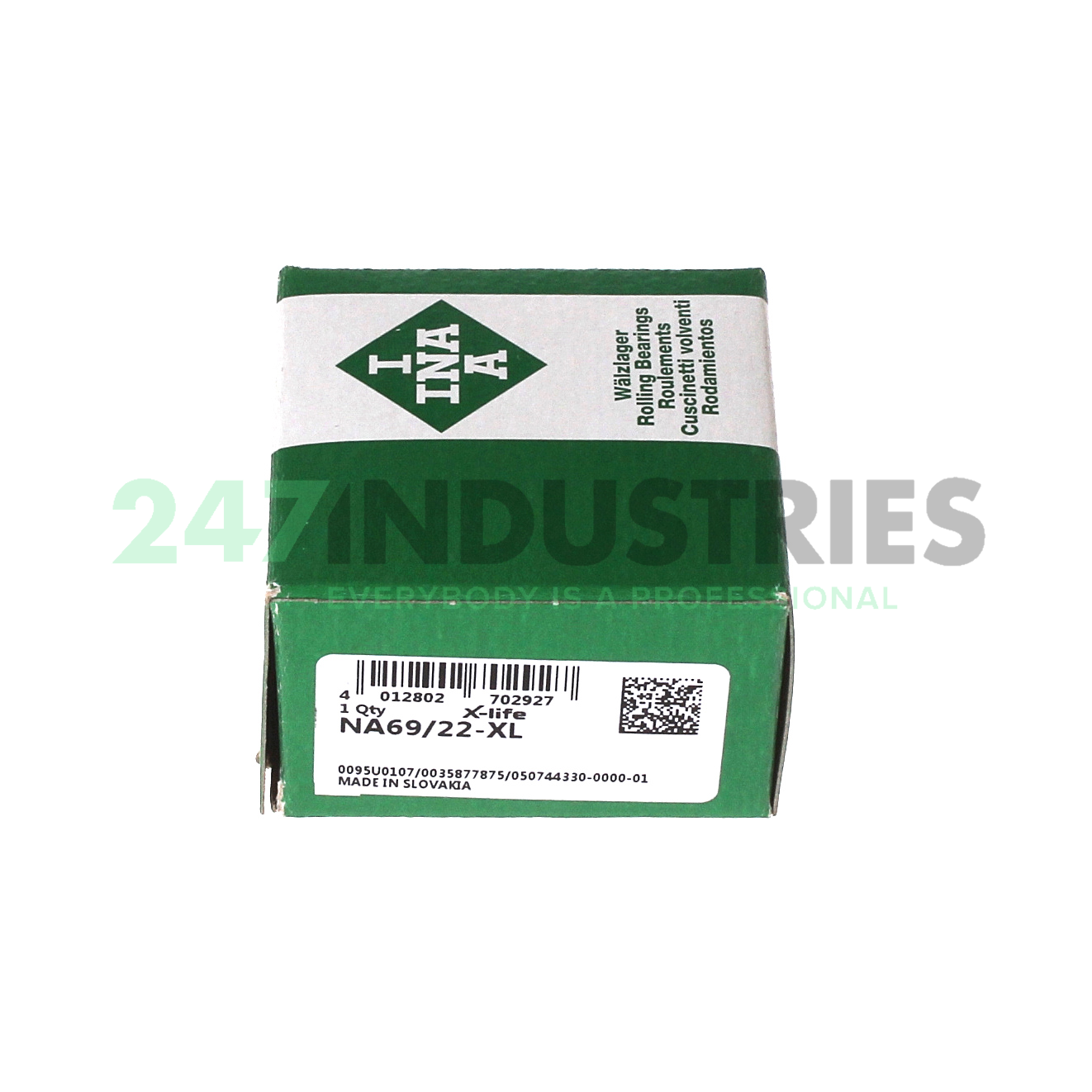

NA69/22-XL INA

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 39
3. Width (B) MM 30
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 1.5354
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 47 pcs
2. Brand INA
3. Item number NA69/22-XL INA
4. Also known as 0507443300000
   NA69/22

5. EAN 4012802702927
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.1447

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 55000
2. Radial Dynamic Load Rating Cr (N) 42000
3. Limiting speed (n G) 15300
4. Limiting speed for grease lubrication (n G Grease) 9200
5. Reference speed (n ϑr) 7900
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing NA..-XL
