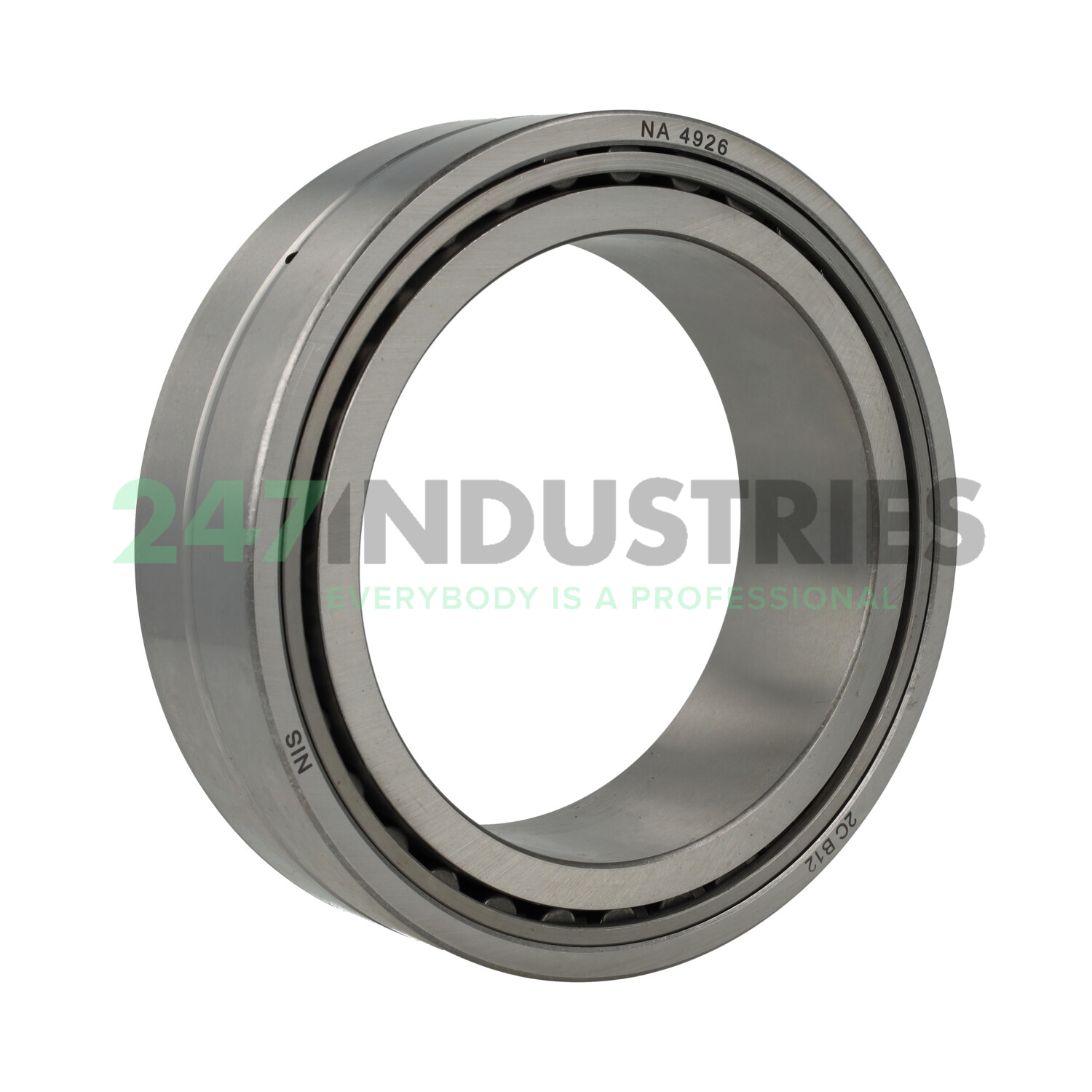

NA4926-XL INA

All dimensions

1. Inner (d) MM 130,00
2. Outer (D) MM 180,00
3. Width (B) MM 50,00
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.9685
7. Width (b) mm 50,00

Suffix description

1. XL X-Life

Technical details

1. Availability 54 pcs
2. Brand INA
3. Item number NA4926-XL INA
4. Also known as 0506616800000
   NA4926

5. EAN 4047643205412
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 3.9

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 470000
2. Radial Dynamic Load Rating Cr (N) 229000
3. Basic static load rating, radial (C 0r) "470000.0000"
4. Limiting speed (n G) "3100.0000"
5. Limiting speed for grease lubrication (n G Grease) "1850.0000"
6. Reference speed (n ϑr) "2000.0000"
7. ECLASS number 23-05-09-07
8. ECLASS2 number 23-05-09-07
9. Medias description Radial roller bearing NA..-XL

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
