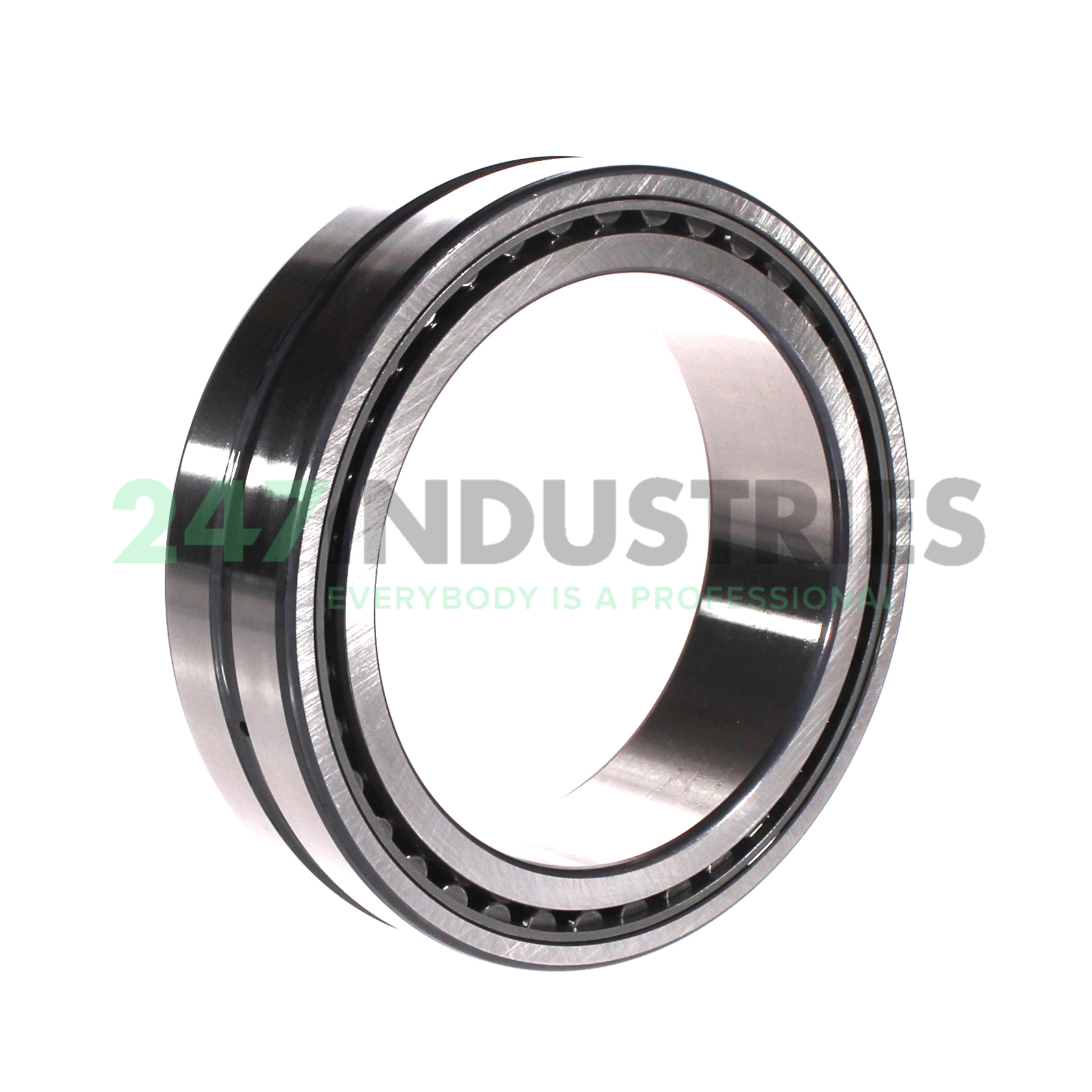

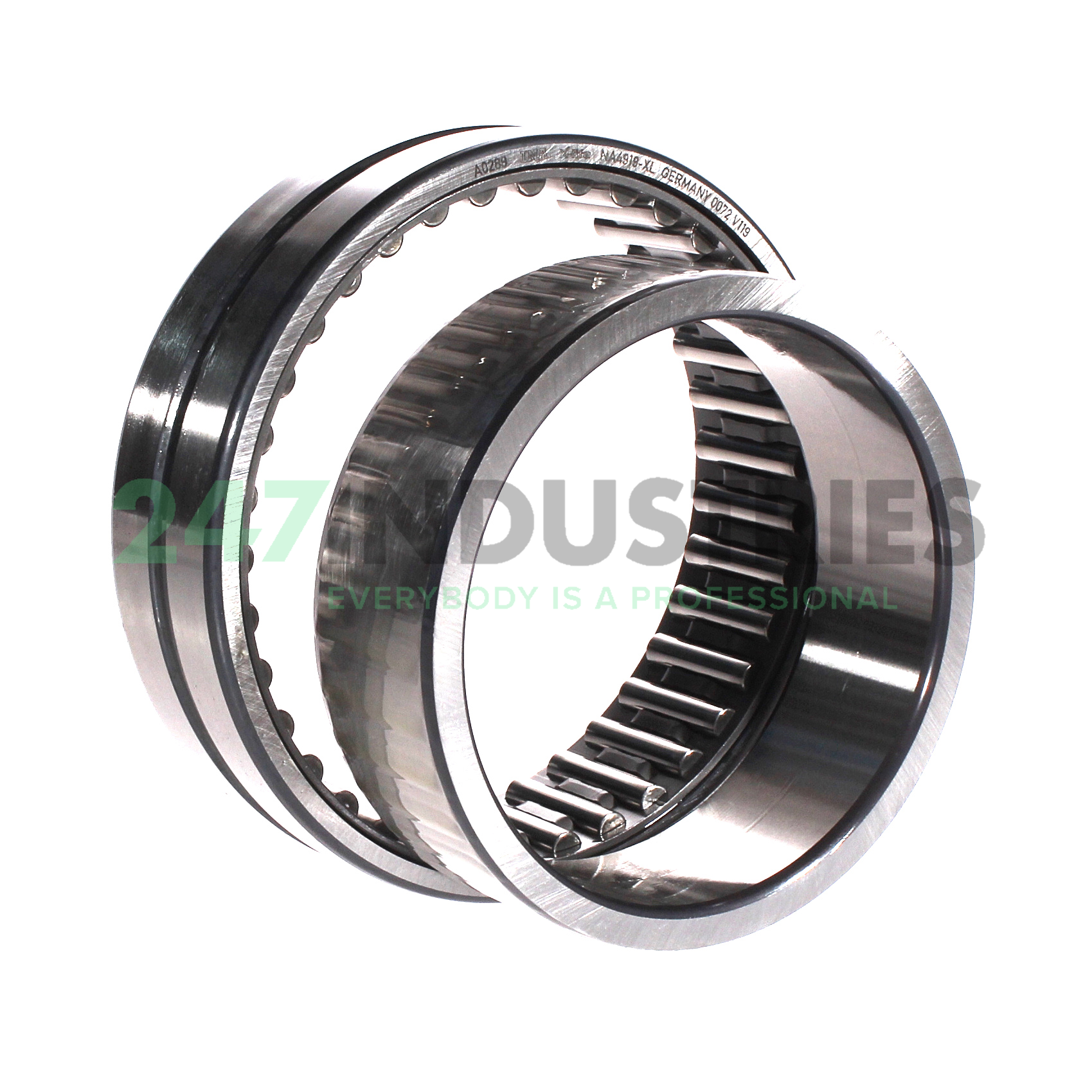

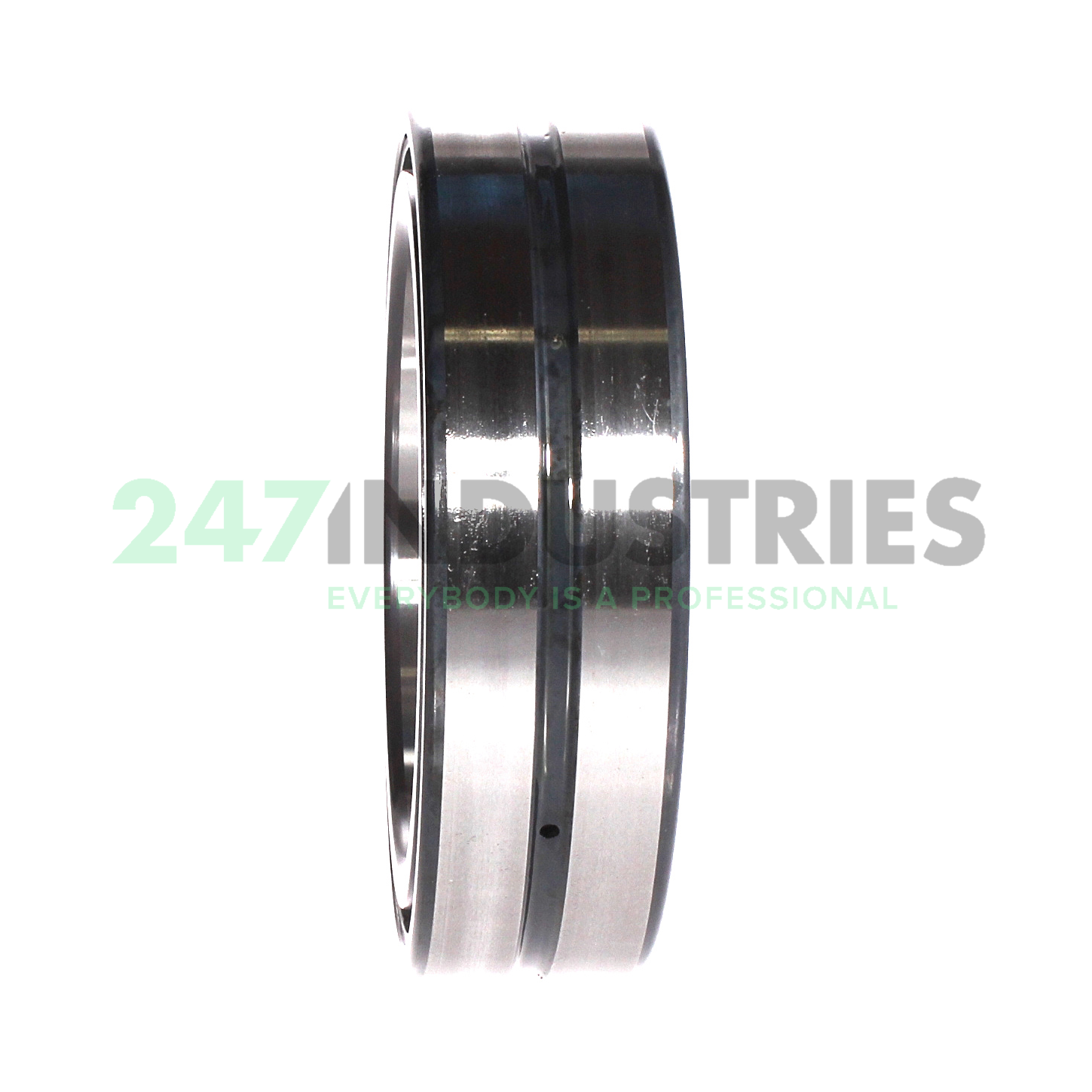

NA4919-XL INA

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 130
3. Width (B) MM 35
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 18 pcs
2. Brand INA
3. Item number NA4919-XL INA
4. Also known as 0506616390000
   NA4919

5. EAN 4012802845044
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.371

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 260000
2. Radial Dynamic Load Rating Cr (N) 131000
3. Limiting speed (n G) 4200
4. Limiting speed for grease lubrication (n G Grease) 2500
5. Reference speed (n ϑr) 2400
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing NA..-XL

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
