NA4916-XL INA

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 110
3. Width (B) MM 30
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 19 pcs
2. Brand INA
3. Item number NA4916-XL INA
4. Also known as 0506616040000
   NA4916

5. EAN 4012802212587
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.8202

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 174000
2. Radial Dynamic Load Rating Cr (N) 101000
3. Limiting speed (n G) 5100
4. Reference speed (n ϑr) 2900
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07

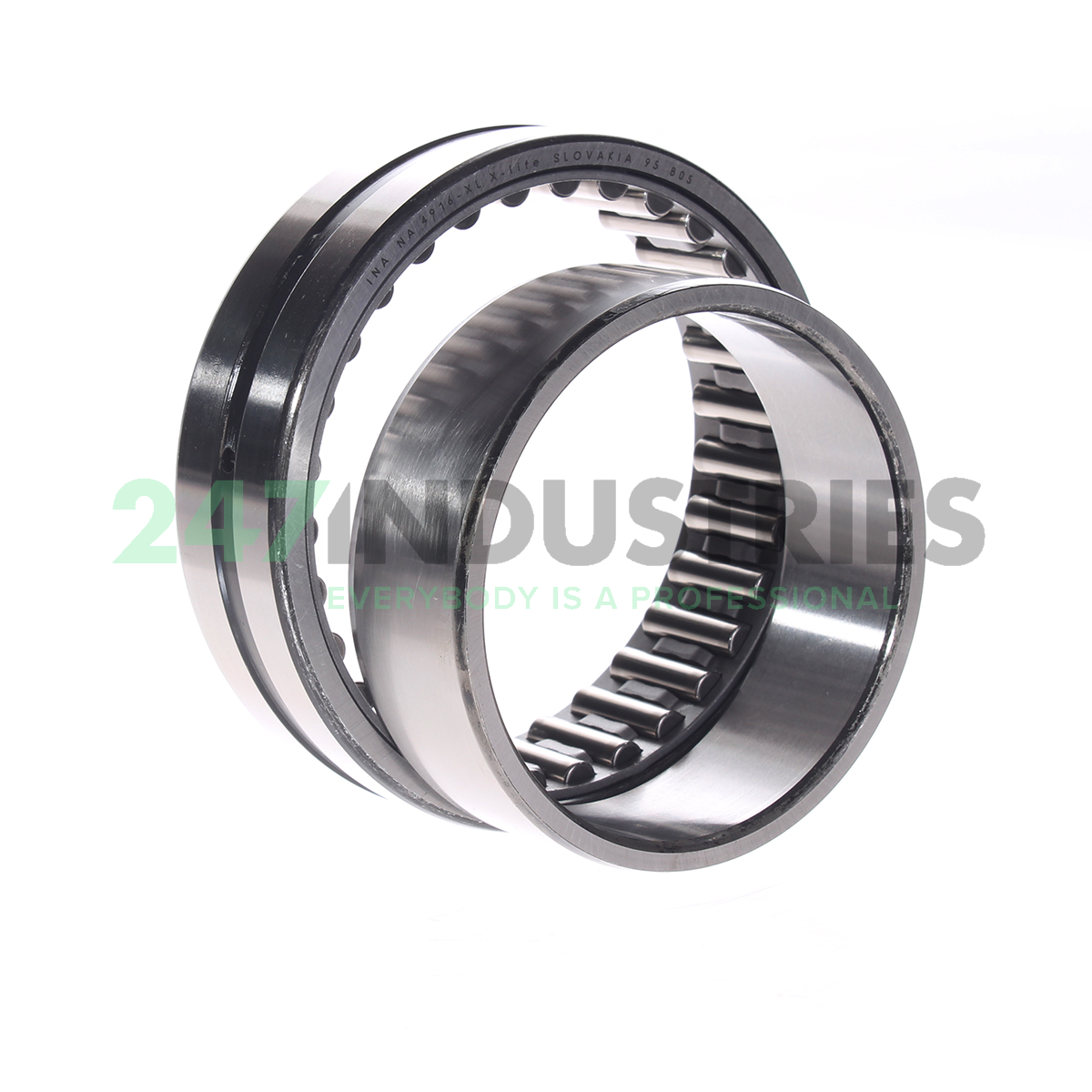

7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords
