NA4914-XL INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 100
3. Width (B) MM 30
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 47 pcs
2. Brand INA
3. Item number NA4914-XL INA
4. Also known as 0504765800000
   NA4914

5. EAN 4012802731705
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.728

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 156000
2. Radial Dynamic Load Rating Cr (N) 95000
3. Limiting speed (n G) 5700
4. Reference speed (n ϑr) 3250
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07

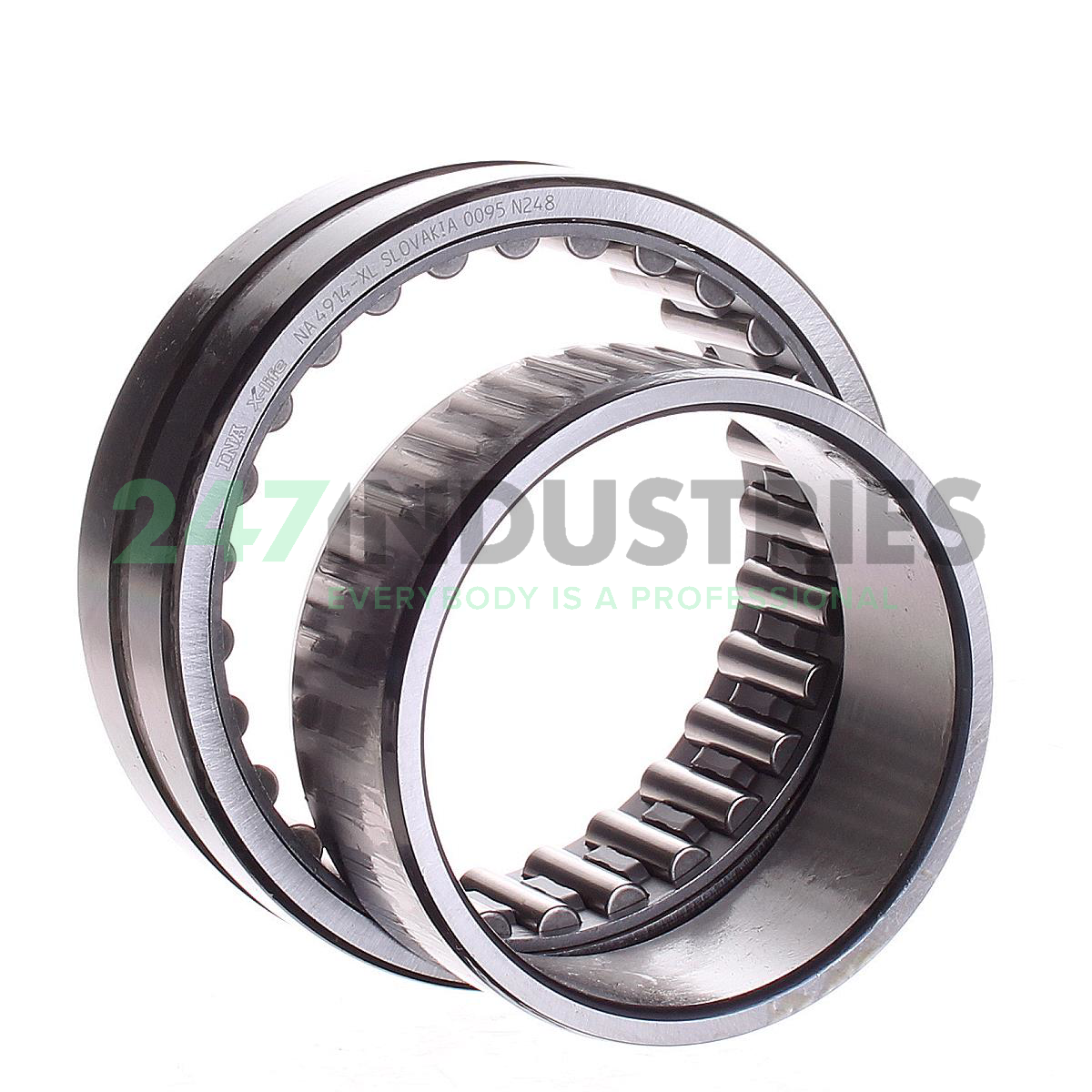

7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords
