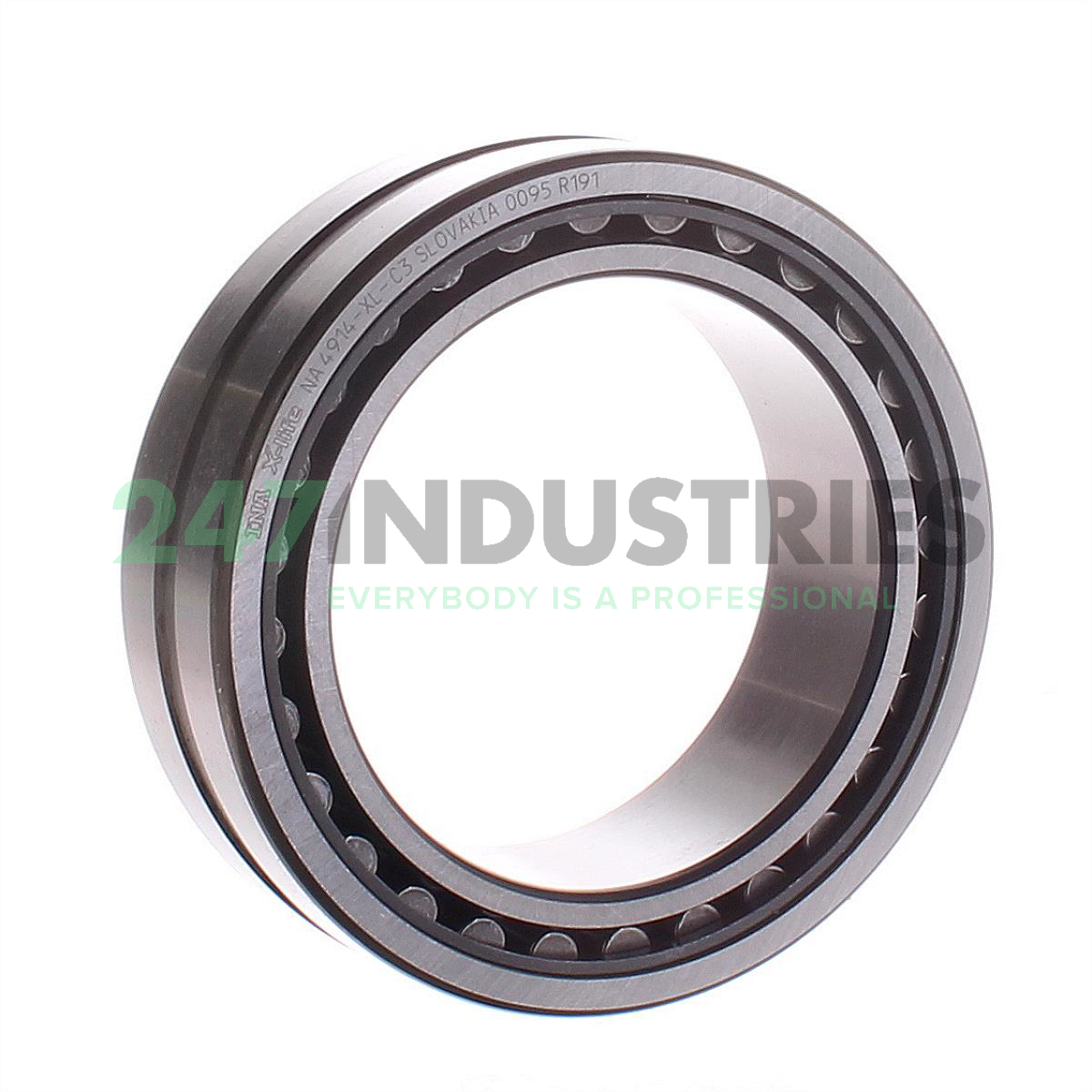

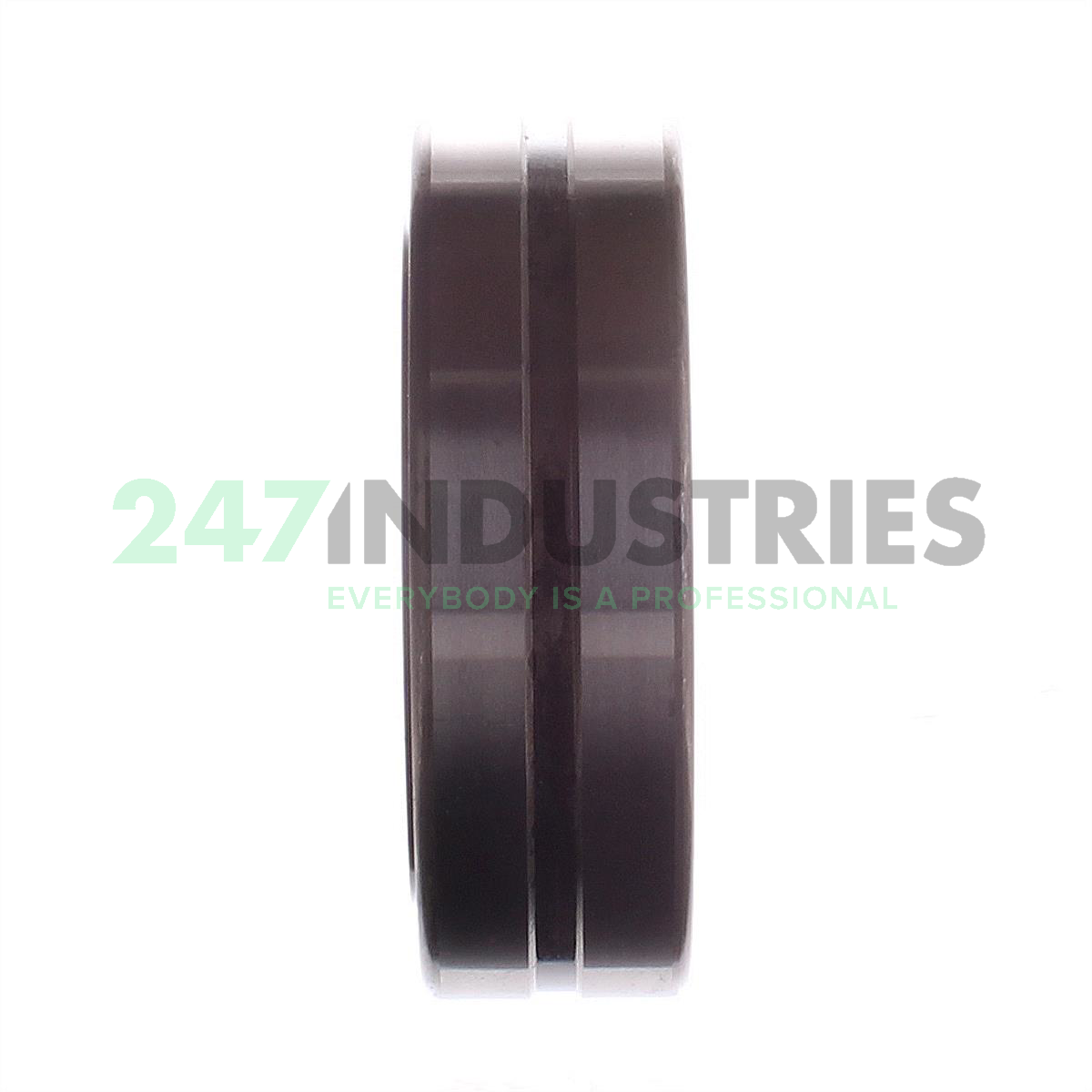

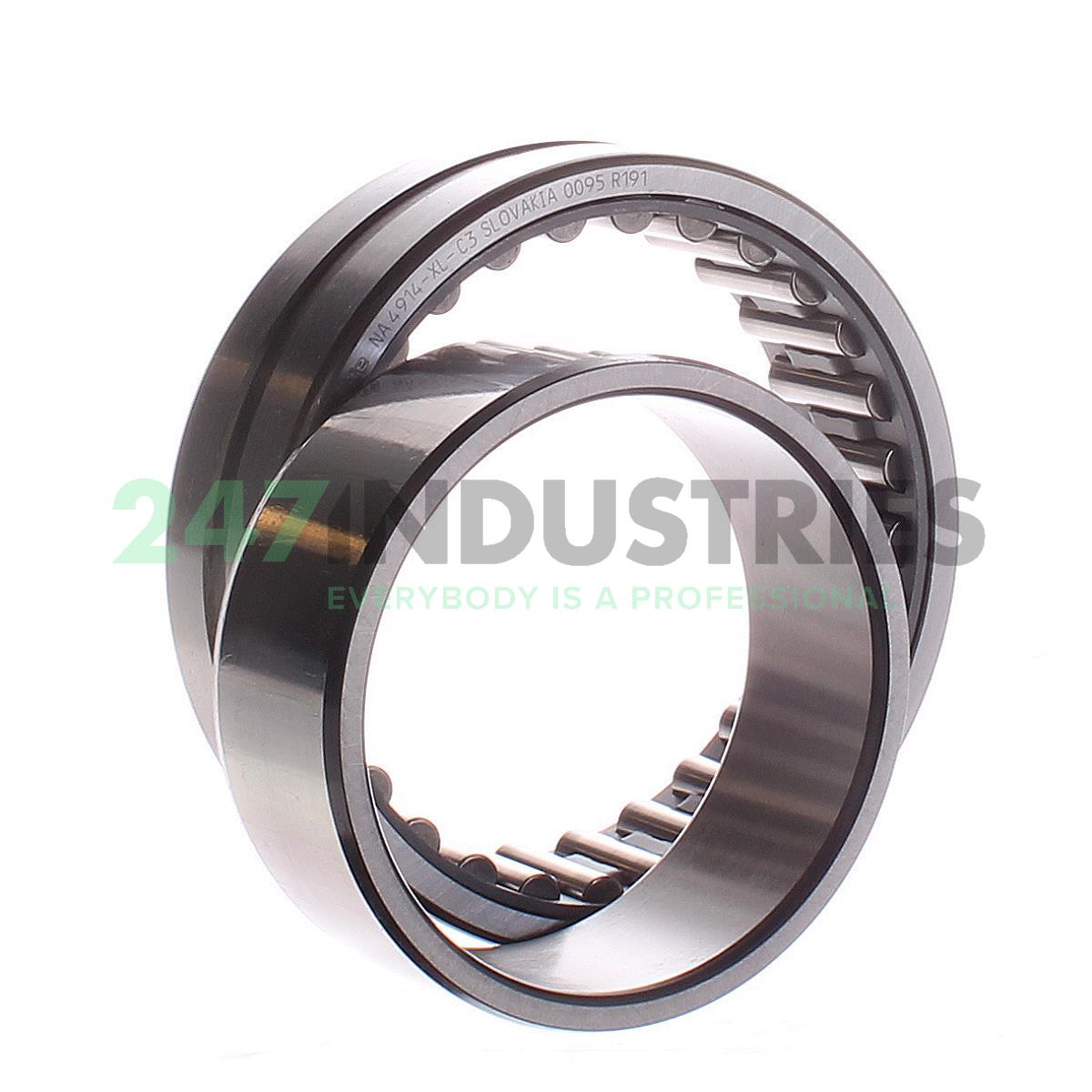

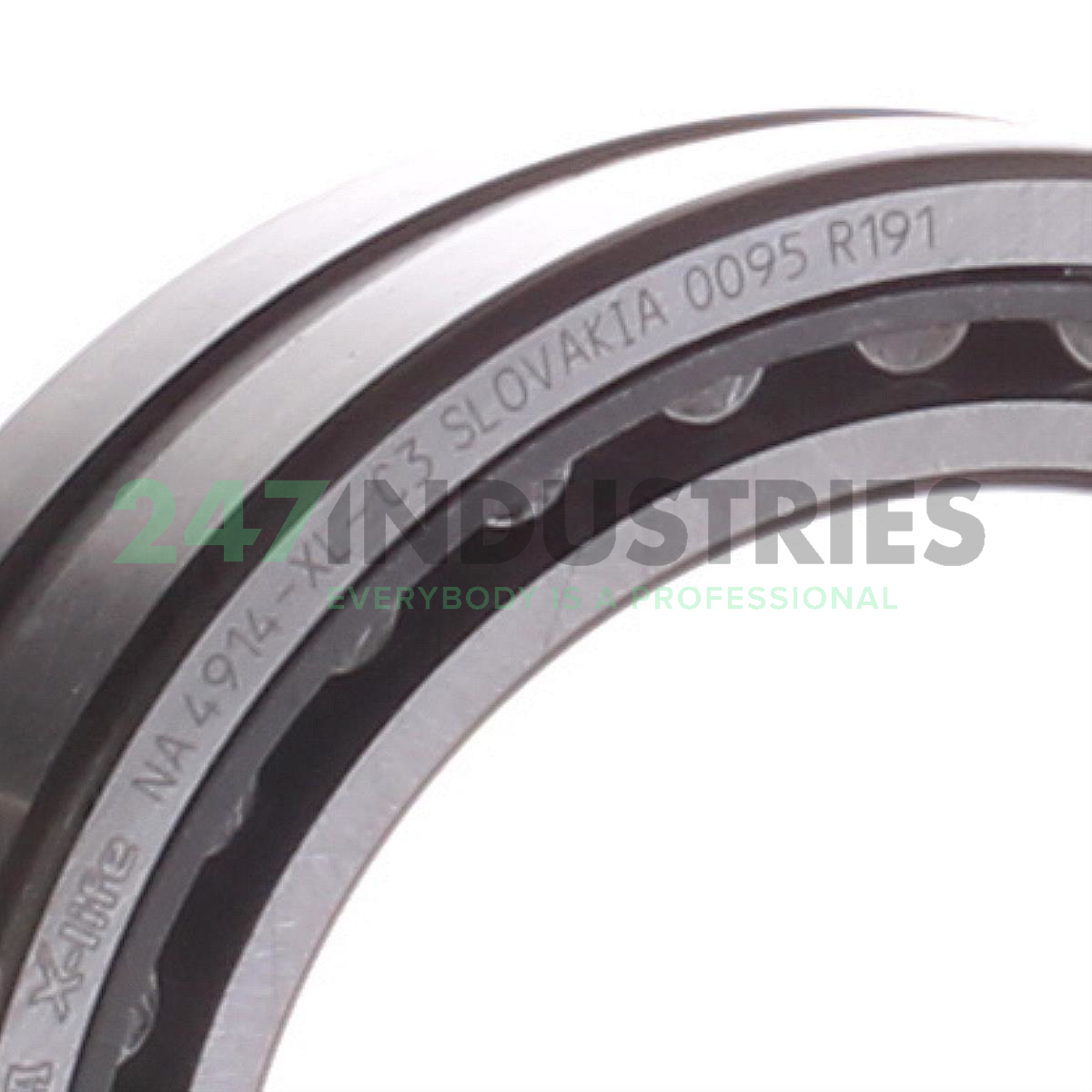

NA4914-XL-C3 INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 100
3. Width (B) MM 30
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 41 pcs
2. Brand INA
3. Item number NA4914-XL-C3 INA
4. Also known as 0504765800030
   NA4914-C3

5. EAN 4012802702422
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.728

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 156000
2. Limiting speed (n G) 5700
3. Reference speed (n ϑr) 3250
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
