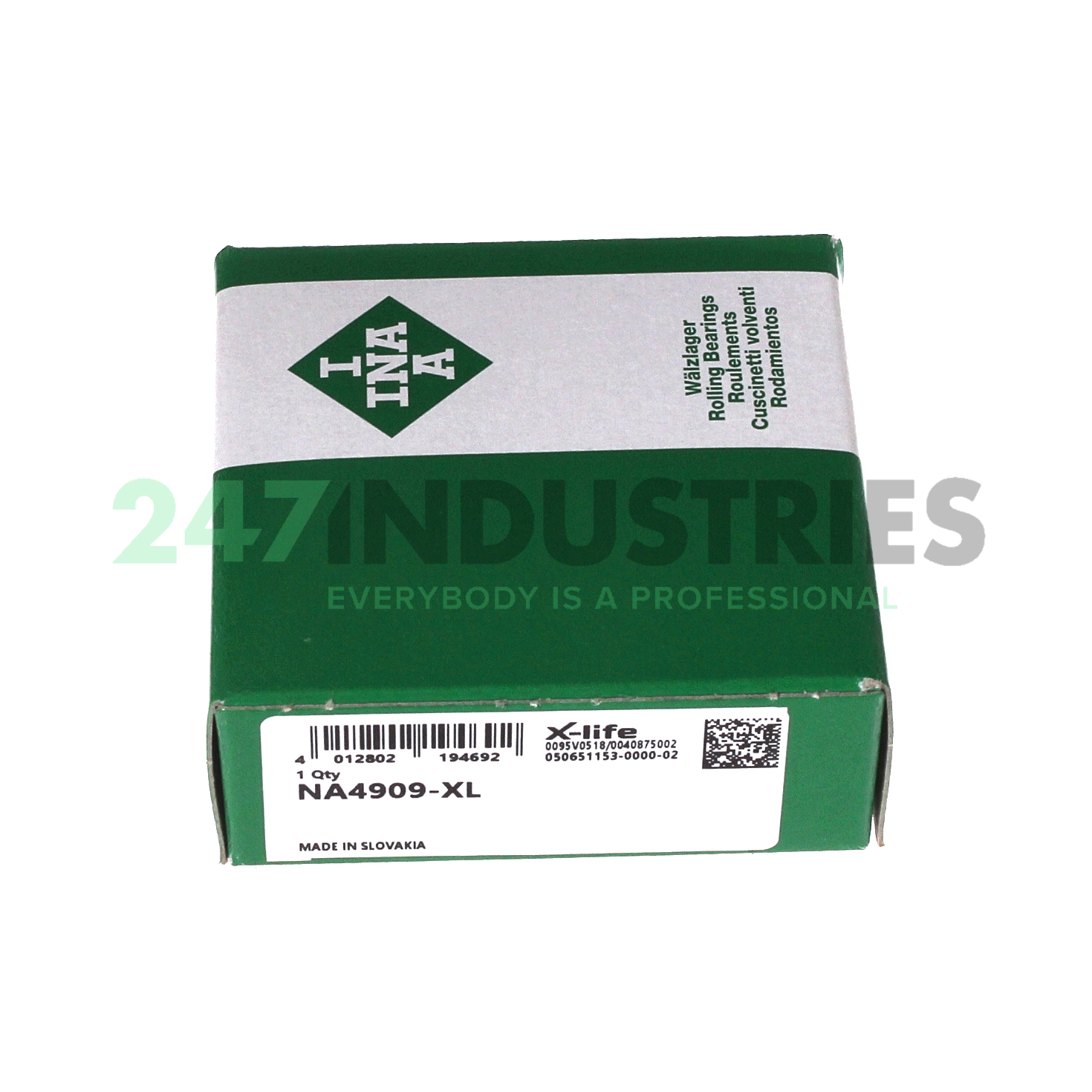

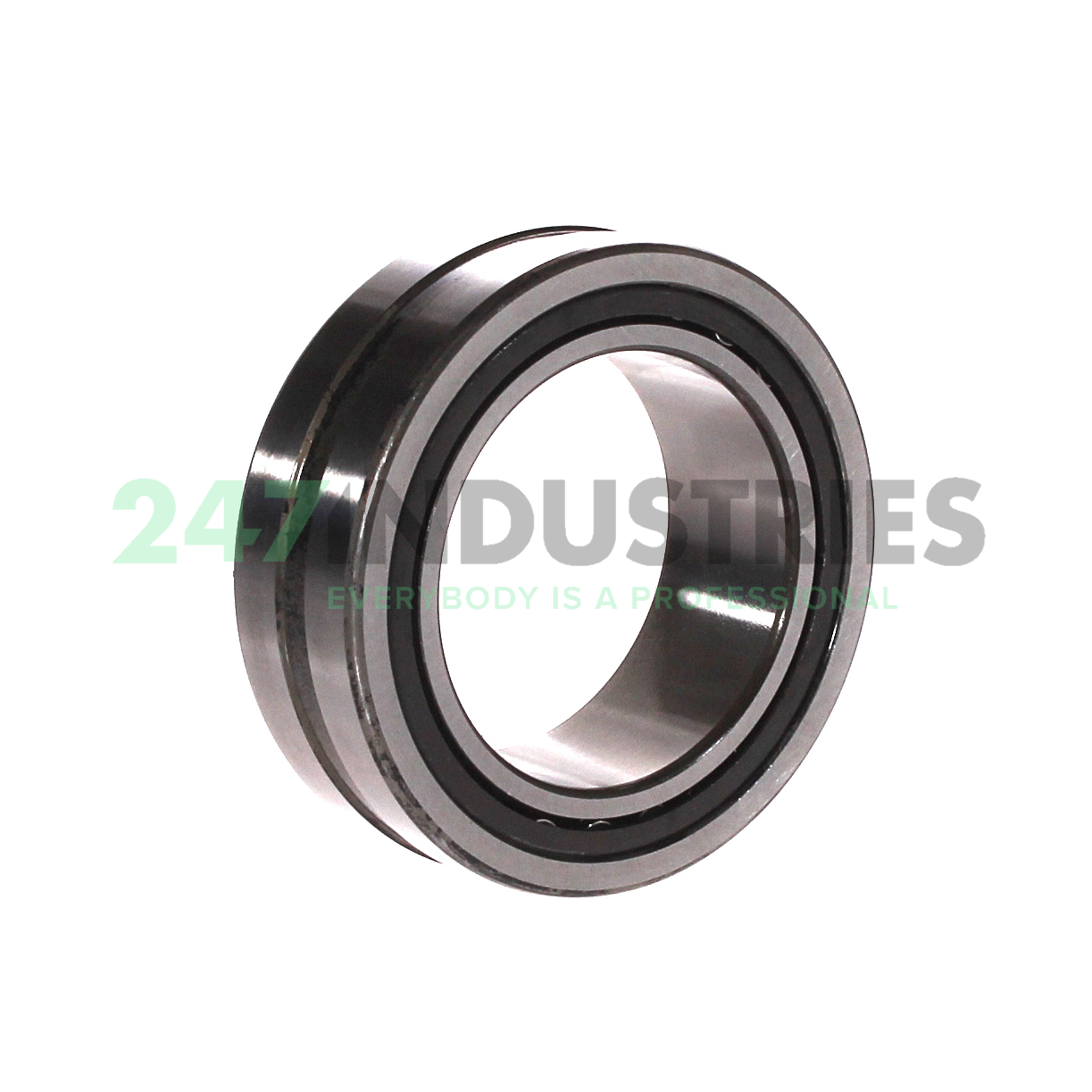

NA4909-XL INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 68
3. Width (B) MM 22
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. XL X-Life

Technical details

1. Availability 61 pcs
2. Brand INA
3. Item number NA4909-XL INA
4. Also known as 0506511530000
   NA4909

5. EAN 4012802194692
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.271

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 73000
2. Radial Dynamic Load Rating Cr (N) 51000
3. Limiting speed (n G) 8600
4. Limiting speed for grease lubrication (n G Grease) 5200
5. Reference speed (n ϑr) 4700
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing NA..-XL
