NA4908-2RSR-XL INA

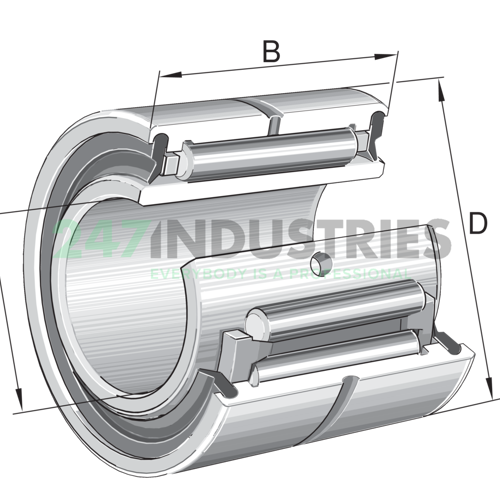

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.9055
7. Width inner ring (B) mm 23

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 45 pcs
2. Brand INA
3. Item number NA4908-2RSR-XL INA
4. Also known as 0507752430000
   NA4908-2RSR

5. EAN 4012802735093
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.23

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 53000
2. Radial Dynamic Load Rating Cr (N) 41000
3. Basic static load rating, radial (C 0r) "53000.0000"
4. Limiting speed for grease lubrication (n G Grease) 5500
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NA49..-2RSR, dimension series 49, lip seals on both sides
