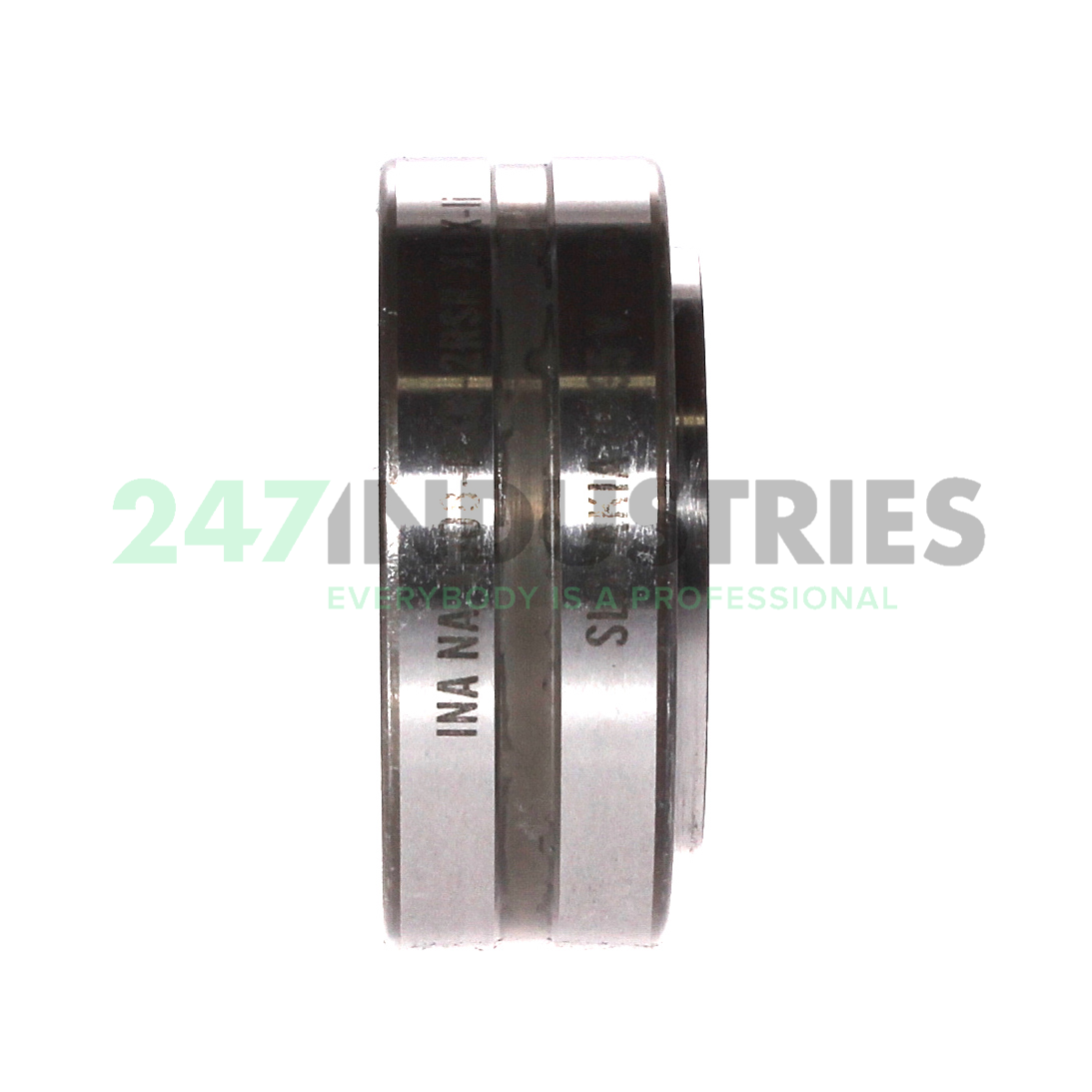

NA4908-2RSR-XL-C3 INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.9055
7. Width inner ring (B) mm 23

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. XL X-Life
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number NA4908-2RSR-XL-C3 INA
4. Also known as 0507752430030
   NA4908-2RSR

5. EAN 4012802735109
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.23

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 53000
2. Limiting speed for grease lubrication (n G Grease) 5500
3. ECLASS number 23-05-09-07
4. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
