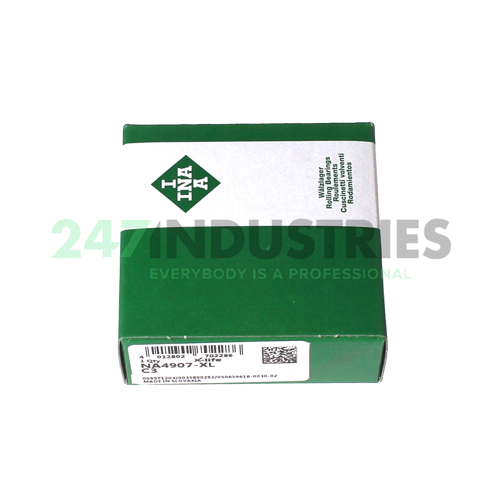

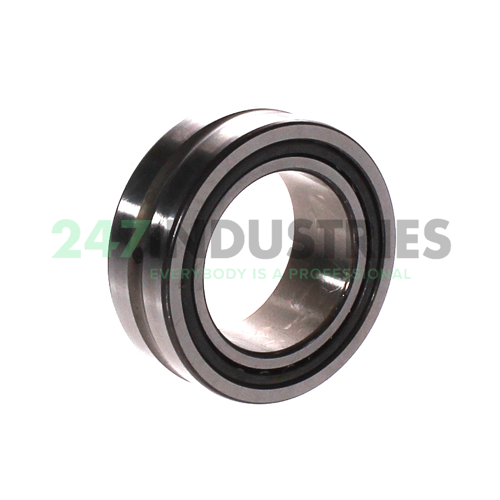

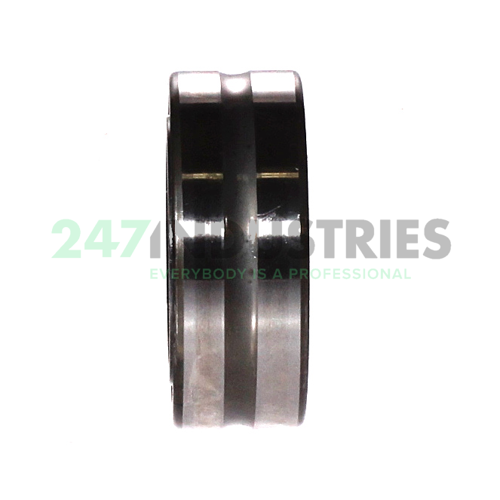

NA4907-XL-C3 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 55
3. Width (B) MM 20
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number NA4907-XL-C3 INA
4. Also known as 0506596180030
   NA4907-C3

5. EAN 4012802702286
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.173

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 50000
2. Limiting speed (n G) 10700
3. Reference speed (n ϑr) 5800
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
