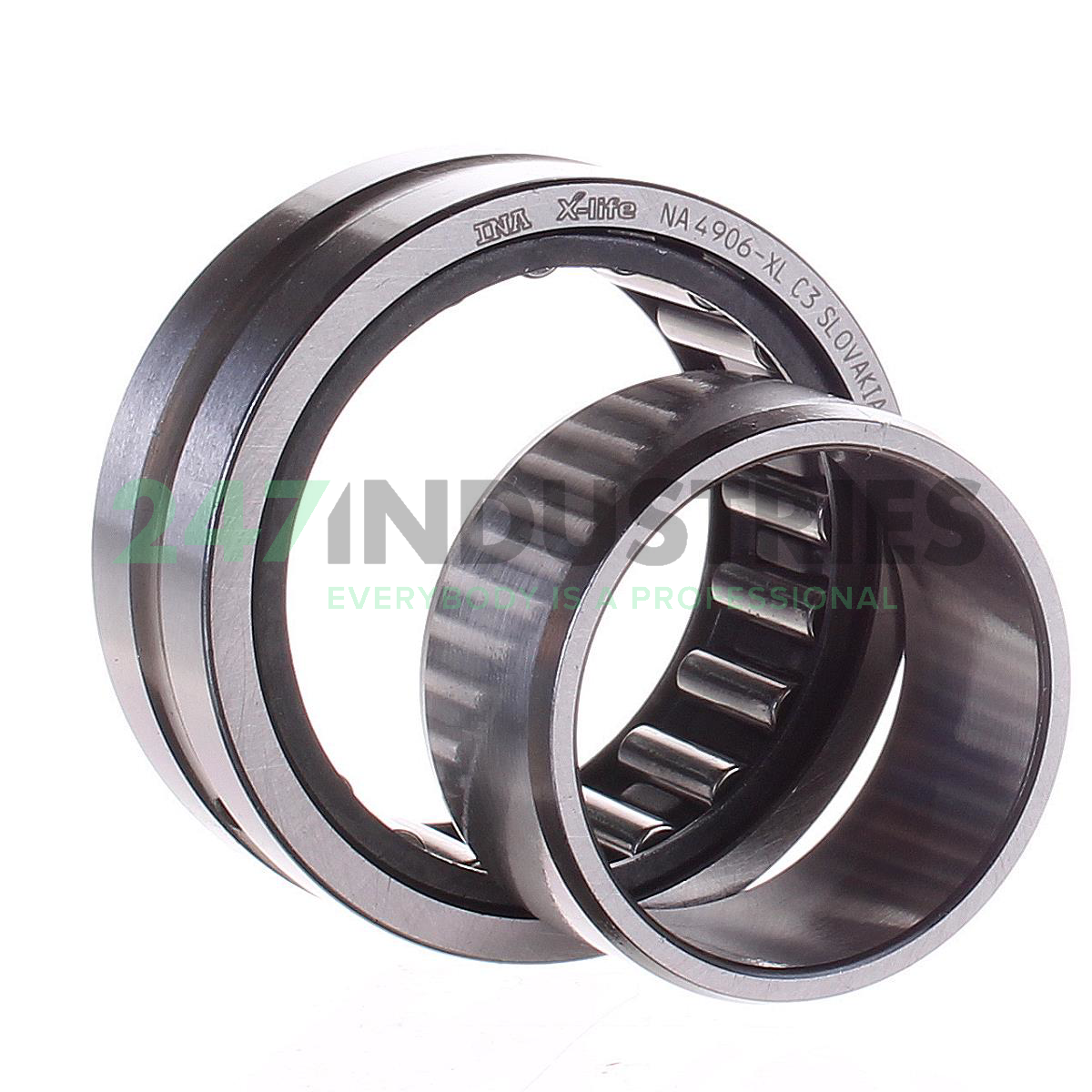

NA4906-XL-C3 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 17
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 131 pcs
2. Brand INA
3. Item number NA4906-XL-C3 INA
4. Also known as 0506596000030
   NA4906-C3

5. EAN 4012802471014
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.101

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 35500
2. Radial Dynamic Load Rating Cr (N) 28500
3. Limiting speed (n G) 12600
4. Reference speed (n ϑr) 6600
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
