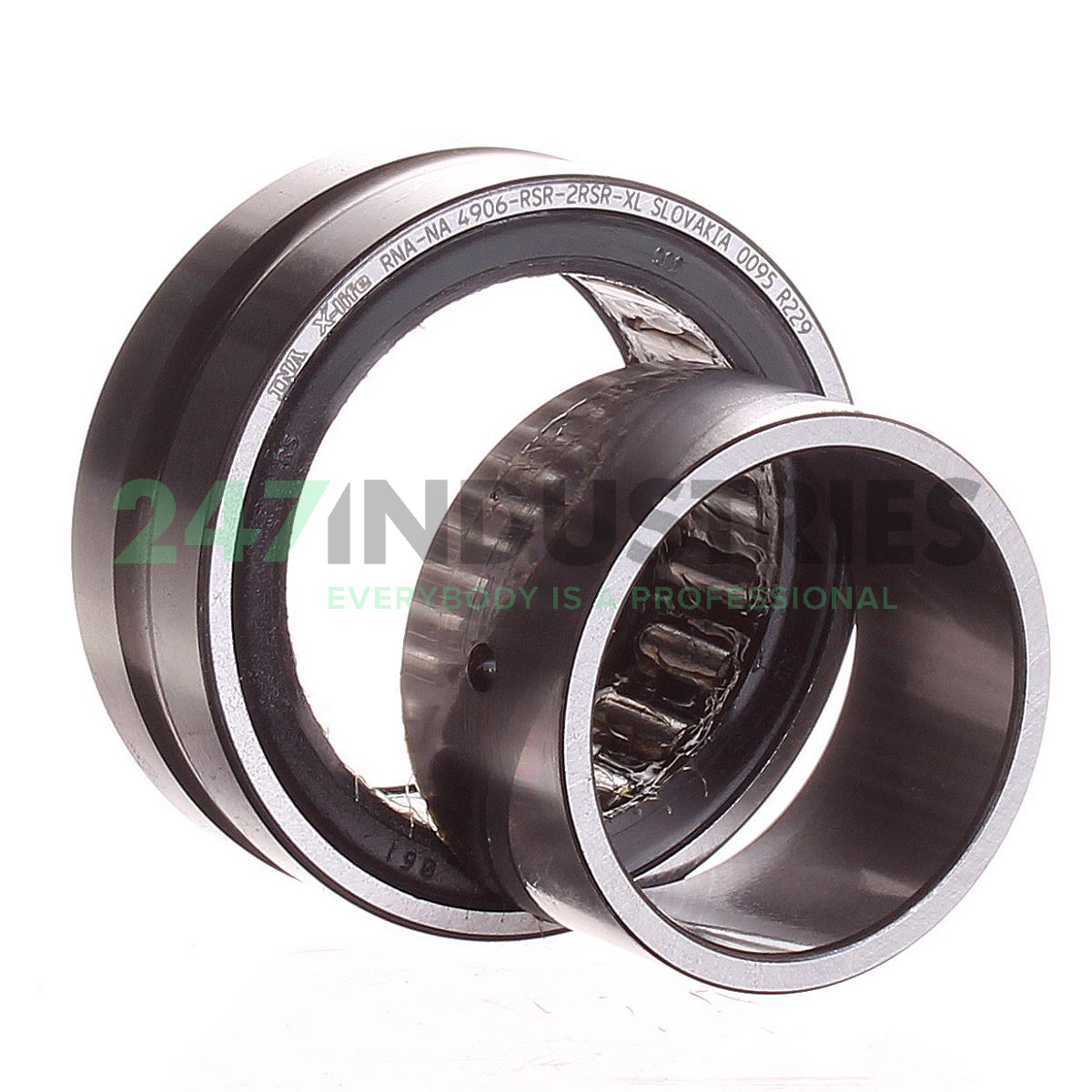

NA4906-2RSR-XL INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 18
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.7087
7. Width inner ring (B) mm 18

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 106 pcs on Mon 13 Jul
2. Brand INA
3. Item number NA4906-2RSR-XL INA
4. Also known as 0507752270000
   NA4906-2RSR

5. EAN 4012802272796
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.104

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 28500
2. Radial Dynamic Load Rating Cr (N) 23900
3. Limiting speed for grease lubrication (n G Grease) 7500
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
6. Medias description Needle roller bearings NA49..-2RSR, dimension series 49, lip seals on both sides
