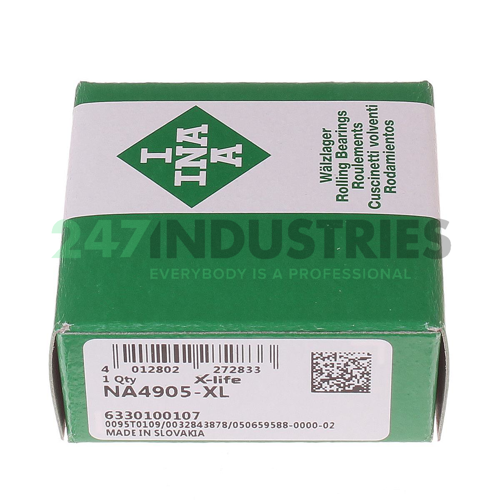

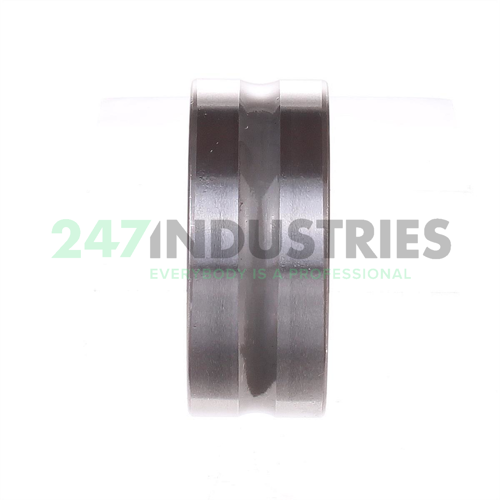

NA4905-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 42
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. XL X-Life

Technical details

1. Availability 79 pcs
2. Brand INA
3. Item number NA4905-XL INA
4. Also known as 0506595880000
   NA4905

5. EAN 4012802272833
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.088

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 31500
2. Radial Dynamic Load Rating Cr (N) 26500
3. Limiting speed (n G) 14400
4. Reference speed (n ϑr) 7700
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords
