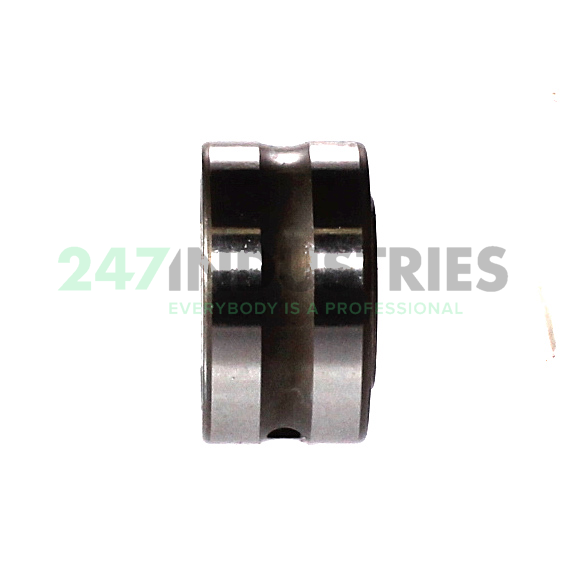

NA4901-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 13
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. XL X-Life

Technical details

1. Availability 79 pcs
2. Brand INA
3. Item number NA4901-XL INA
4. Also known as 0506594300000
   NA4901

5. EAN 4012802420920
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.026

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 10900
2. Radial Dynamic Load Rating Cr (N) 10600
3. Limiting speed (n G) 23200
4. Reference speed (n ϑr) 14200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords
