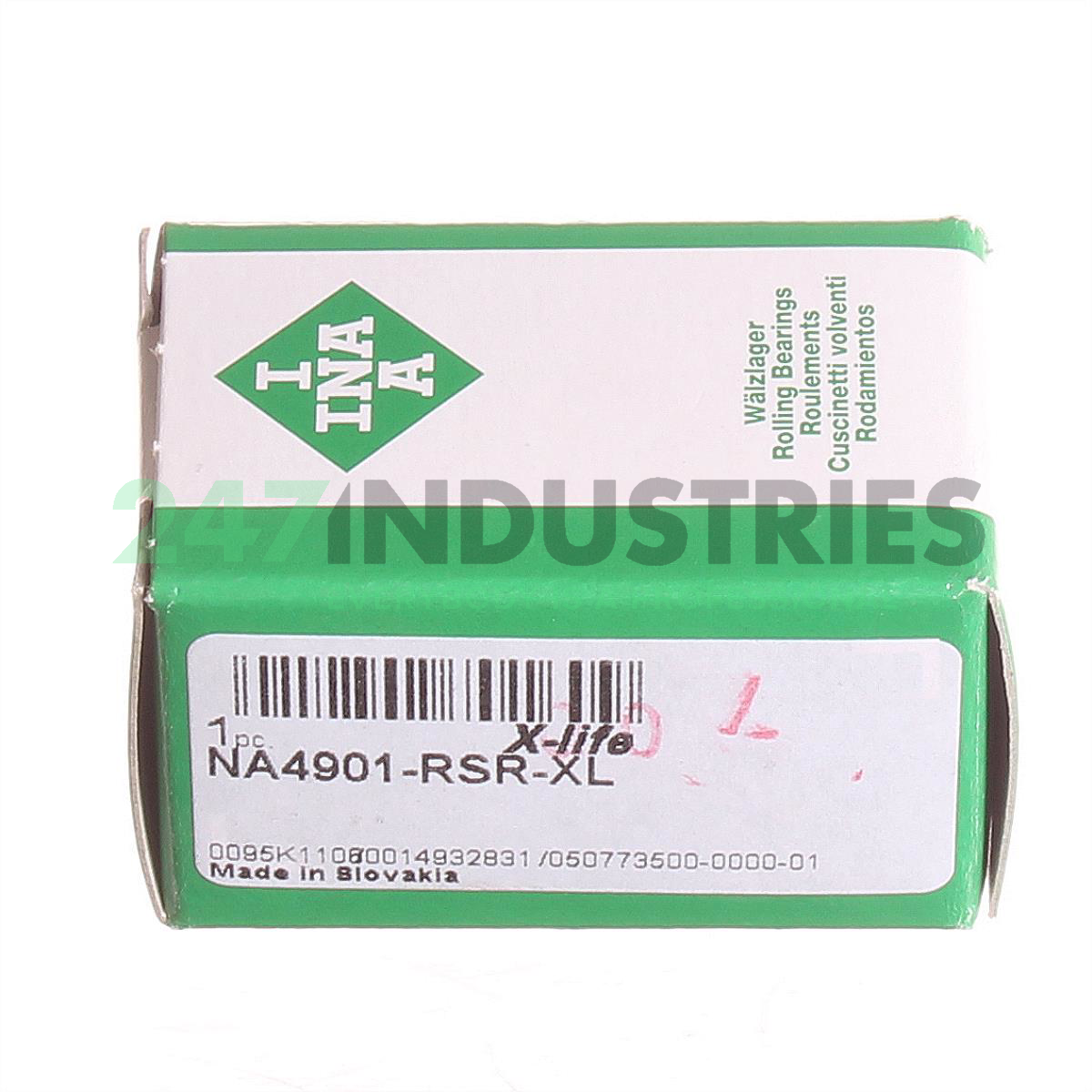

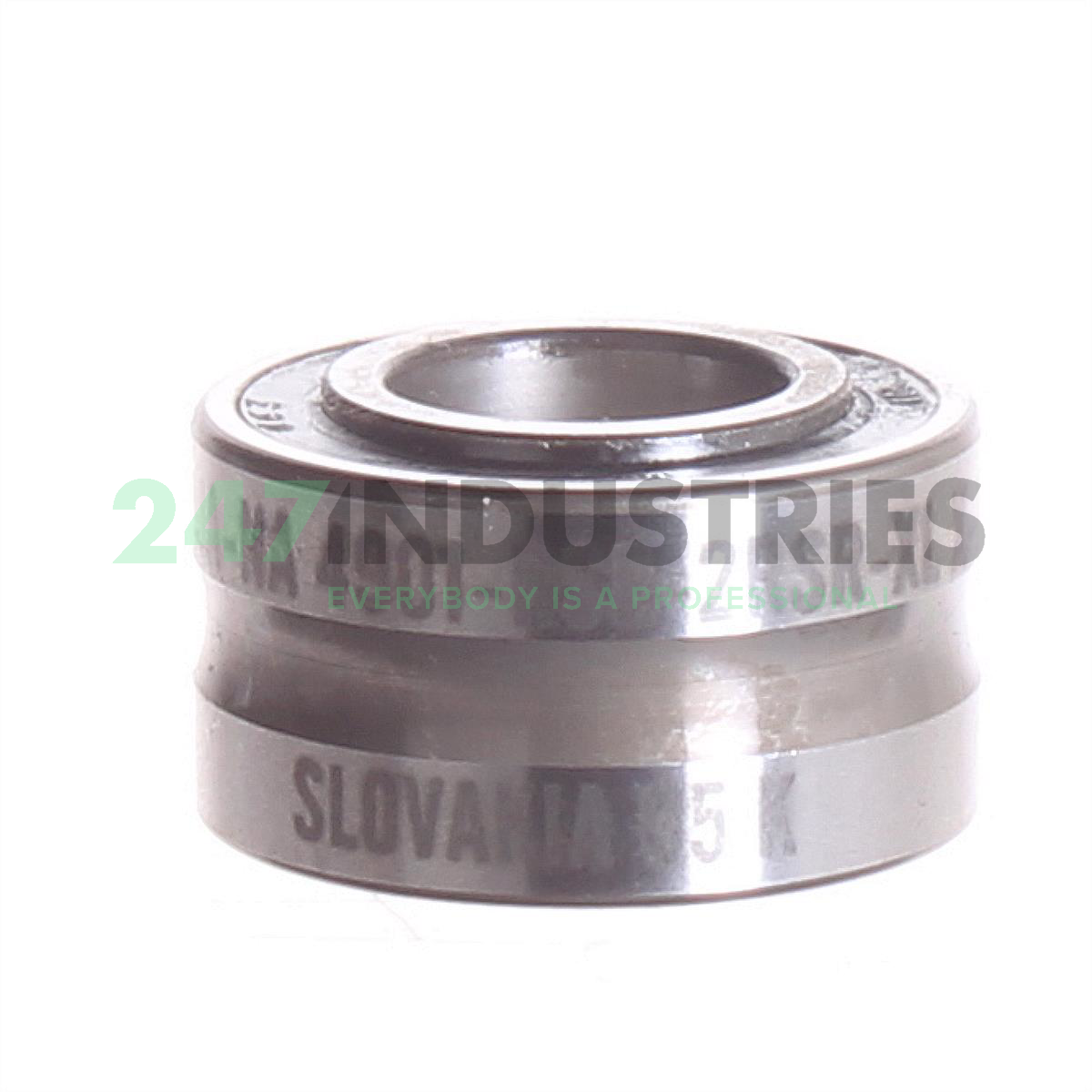

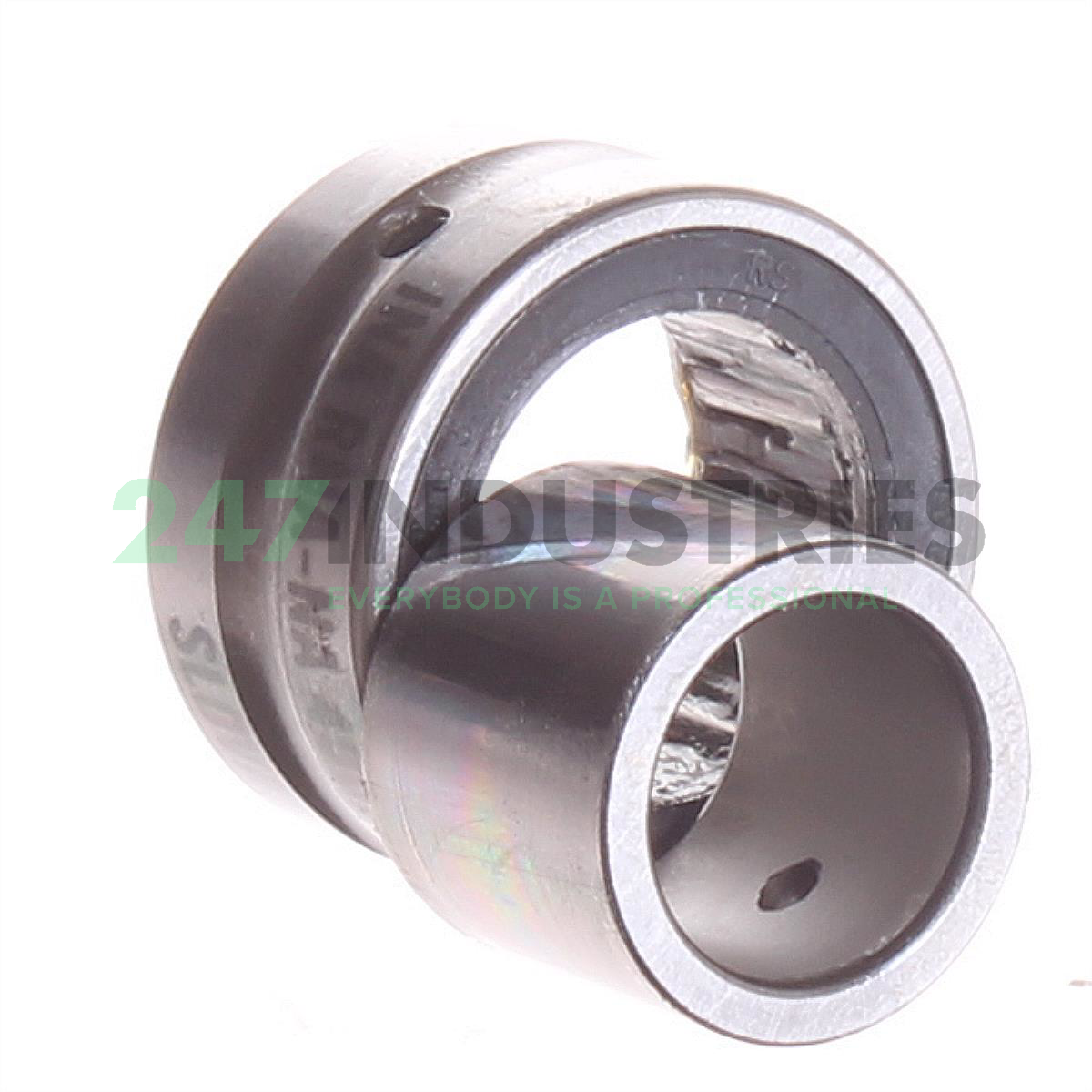

NA4901-RSR-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 14
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.5512
7. Width inner ring (B) mm 14

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type
2. XL X-Life

Technical details

1. Availability 31 pcs
2. Brand INA
3. Item number NA4901-RSR-XL INA
4. Also known as 0507735000000
   NA4901-RSR

5. EAN 4012802701609
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.028

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8300
2. Radial Dynamic Load Rating Cr (N) 8600
3. Limiting speed for grease lubrication (n G Grease) 13900
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
6. Medias description Needle roller bearings NA49..-RSR, dimension series 49, lip seal on one side

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
