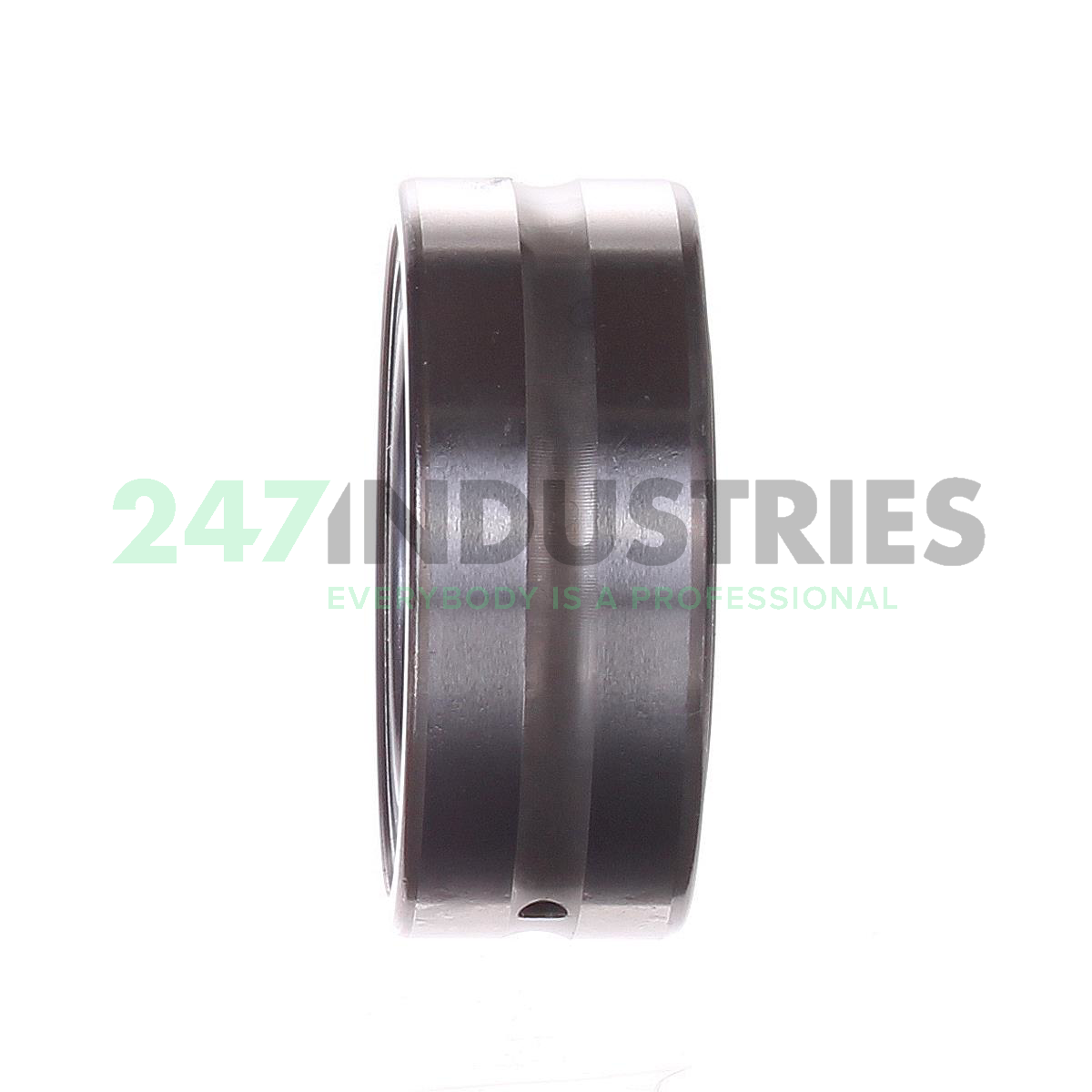

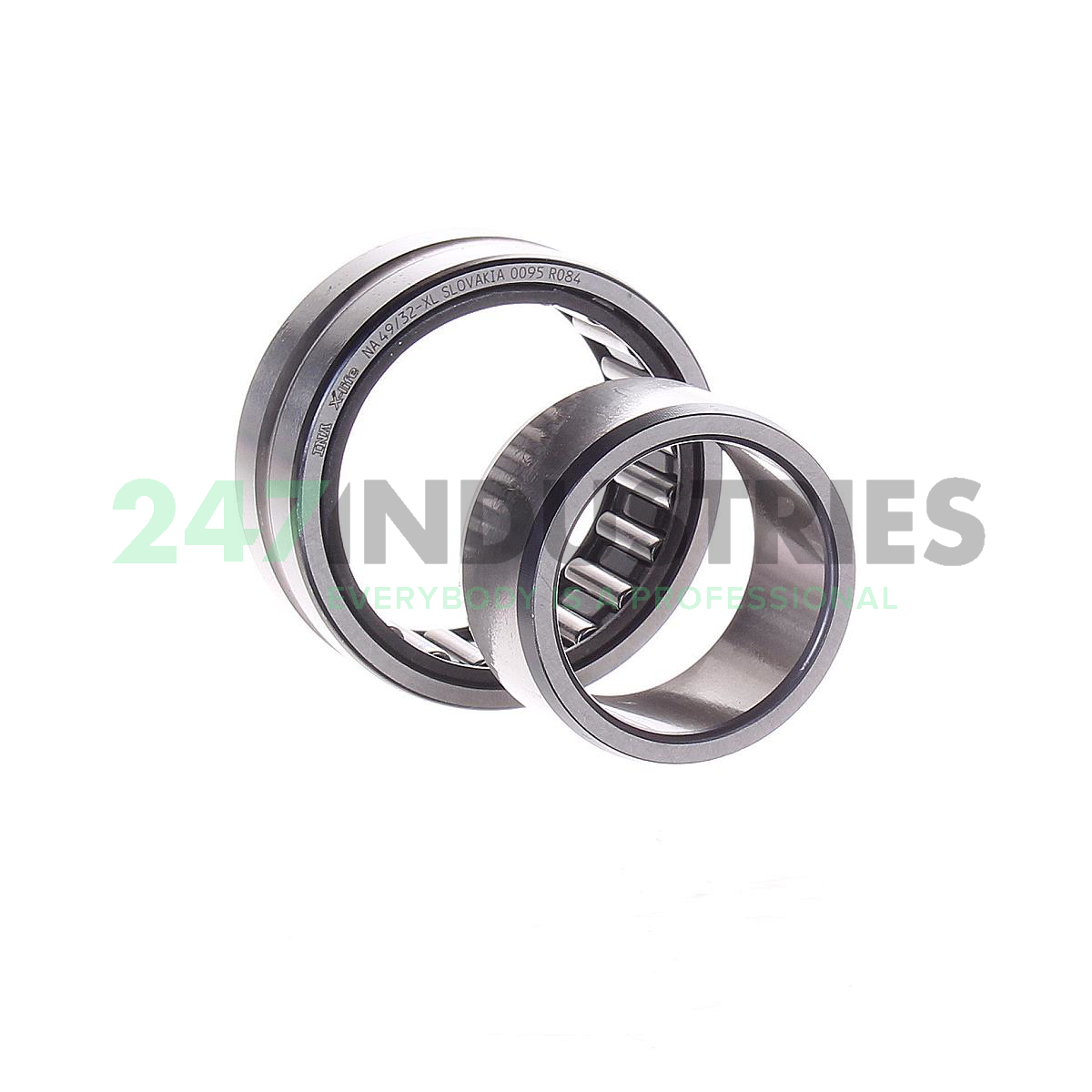

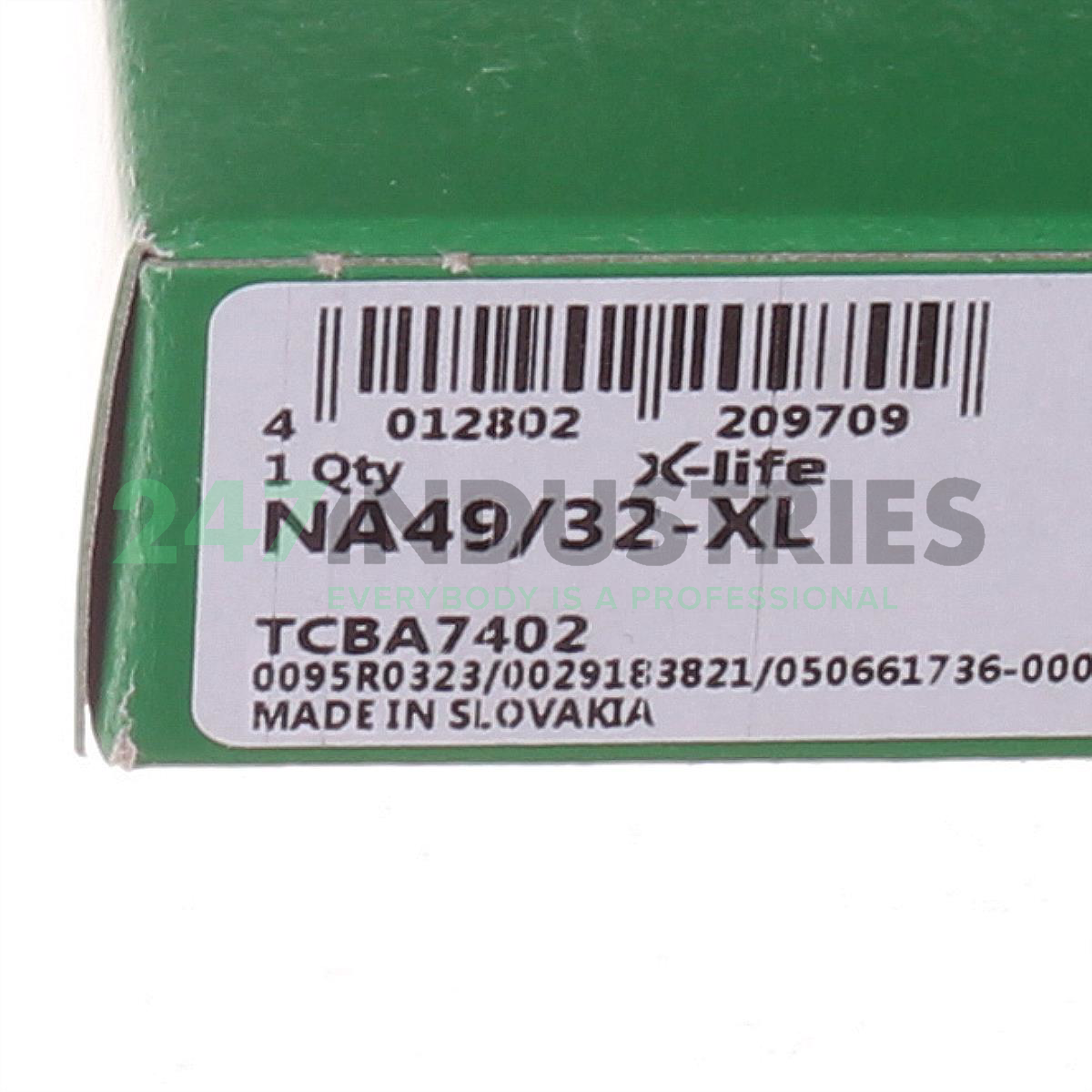

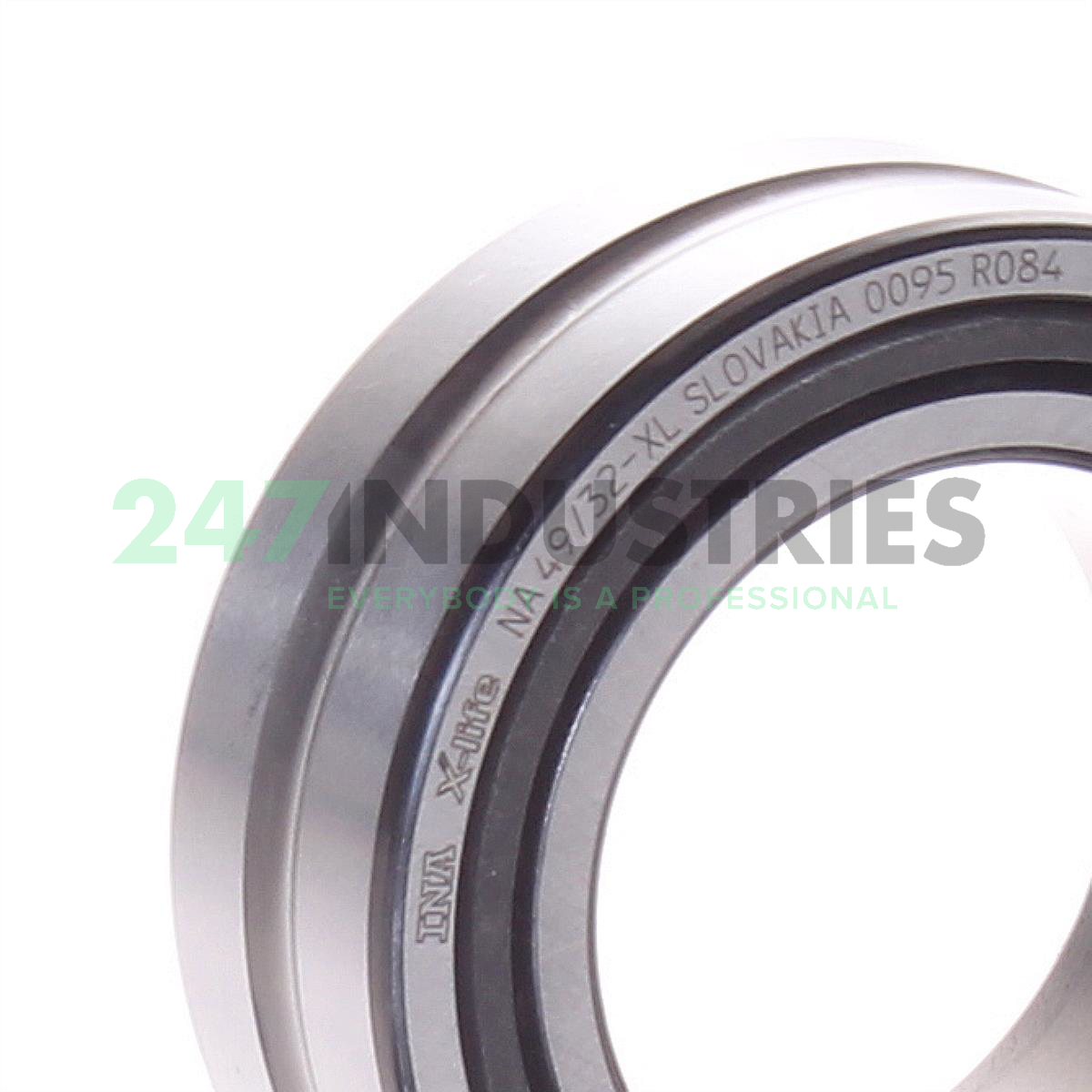

NA49/32-XL INA

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 52
3. Width (B) MM 20
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 42 pcs
2. Brand INA
3. Item number NA49/32-XL INA
4. Also known as 0506617360000
   NA49/32

5. EAN 4012802209709
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.158

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 47500
2. Radial Dynamic Load Rating Cr (N) 34500
3. Limiting speed (n G) 11100
4. Reference speed (n ϑr) 6000
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NA49..-XL, single row, with inner ring, outer ring with 2 bords
