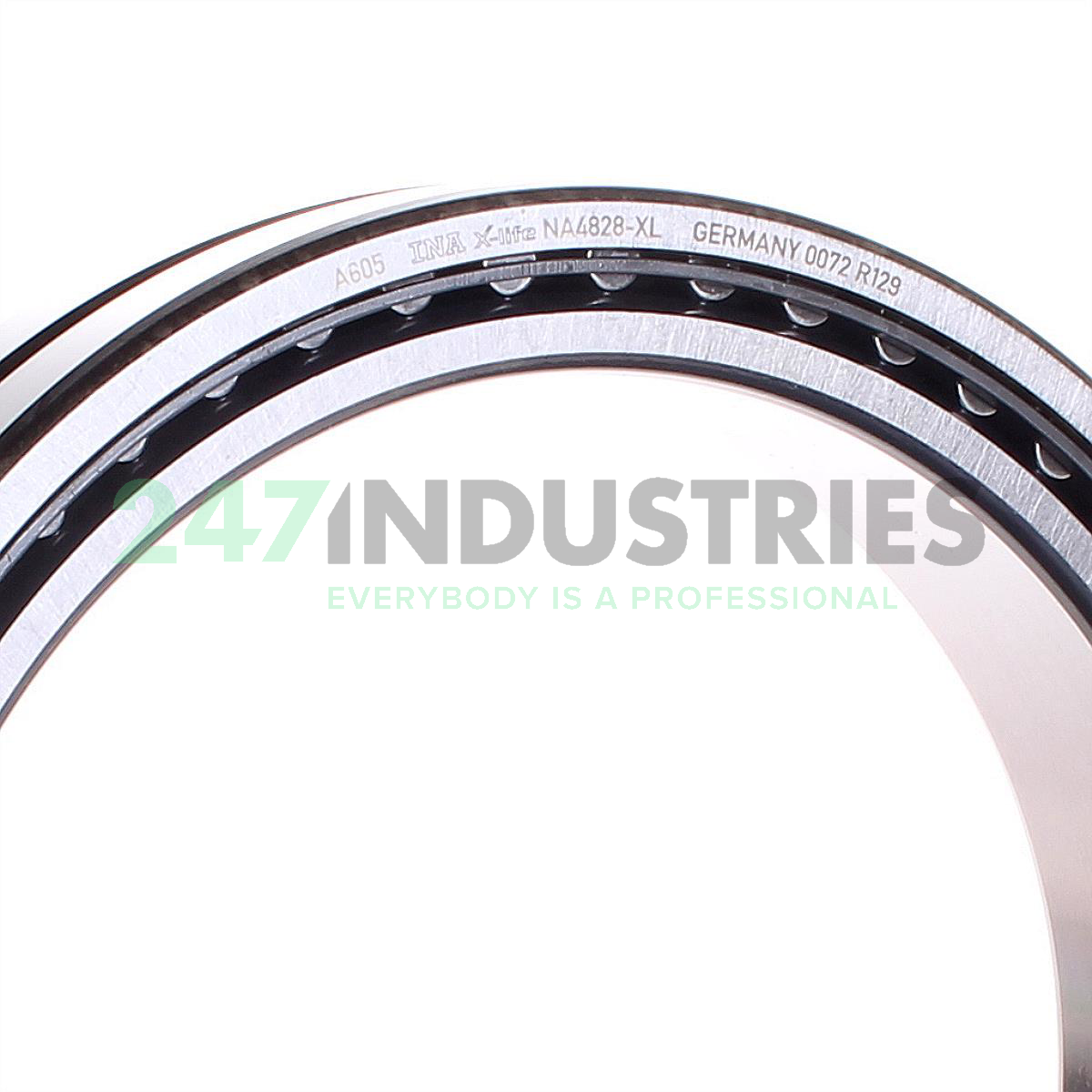

NA4828-XL INA

All dimensions

1. Inner (d) MM 140,00
2. Outer (D) MM 175,00
3. Width (B) MM 35,00
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 6.8898
6. Width (B) Inch 1.3780
7. Width (b) mm 35,00

Suffix description

1. XL X-Life

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number NA4828-XL INA
4. Also known as 0507684920000
   NA4828

5. EAN 4012802844887
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.92

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 325000
2. Radial Dynamic Load Rating Cr (N) 136000
3. Basic static load rating, radial (C 0r) "325000.0000"
4. Limiting speed (n G) "3050.0000"
5. Reference speed (n ϑr) "1810.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearing NA..-XL, single row, with inner ring, outer ring with 2 bords
