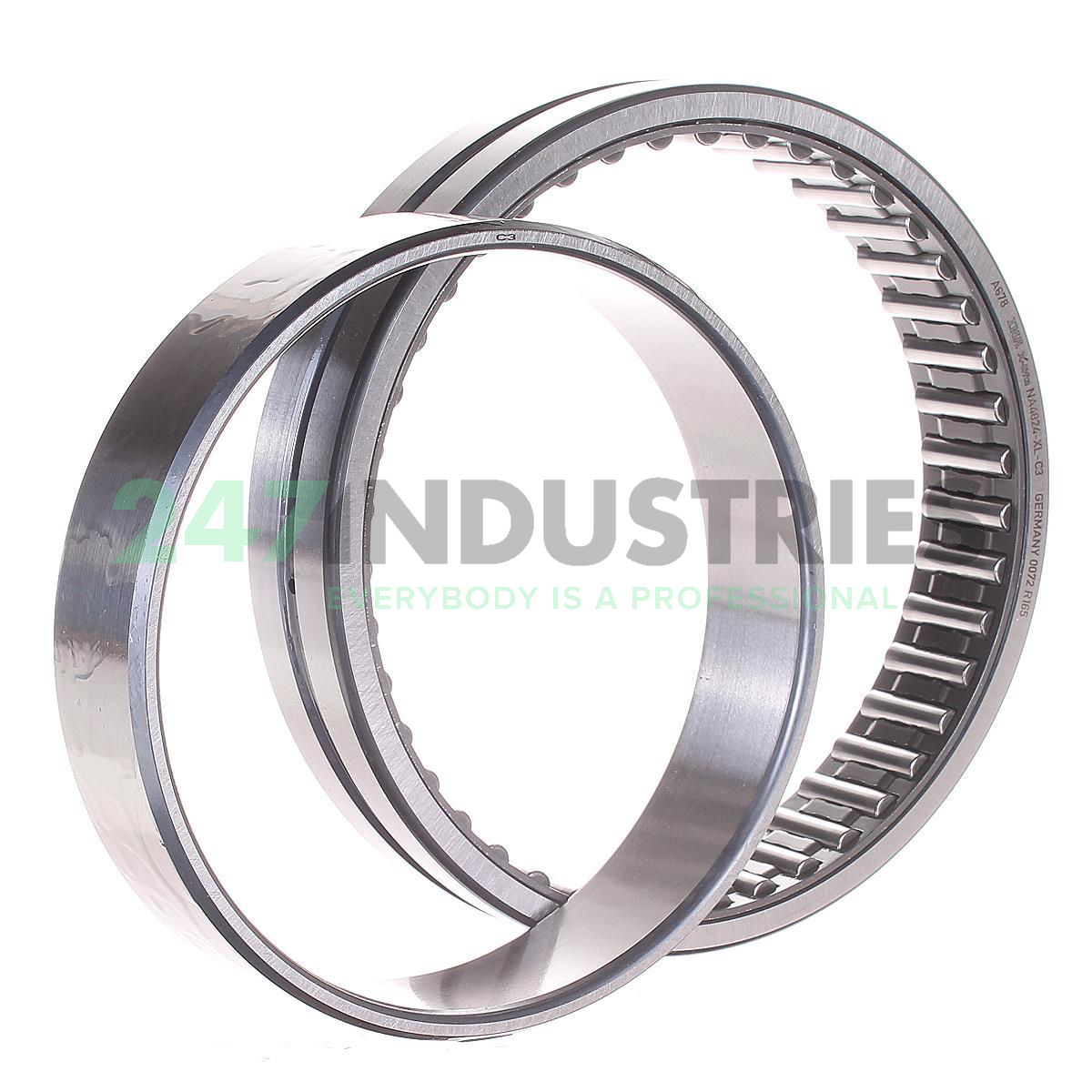

NA4824-XL-C3 INA

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 150
3. Width (B) MM 30
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 21 pcs
2. Brand INA
3. Item number NA4824-XL-C3 INA
4. Also known as 0507684760030
   NA4824-C3

5. EAN 4054363037360
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.17

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 239000
2. Limiting speed (n G) 3600
3. Reference speed (n ϑr) 2070
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
