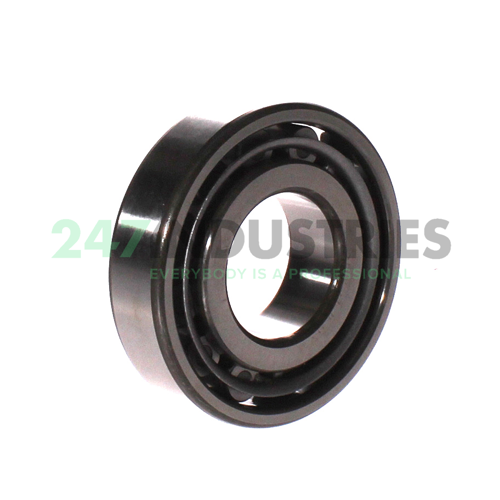

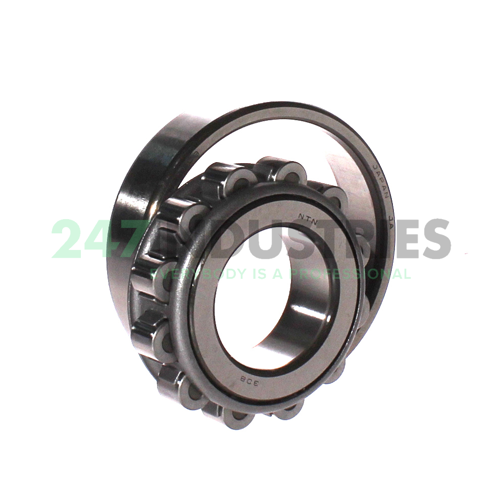

N308C3 NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number N308C3 NTN
4. EAN 4547359151398
5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.66

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
