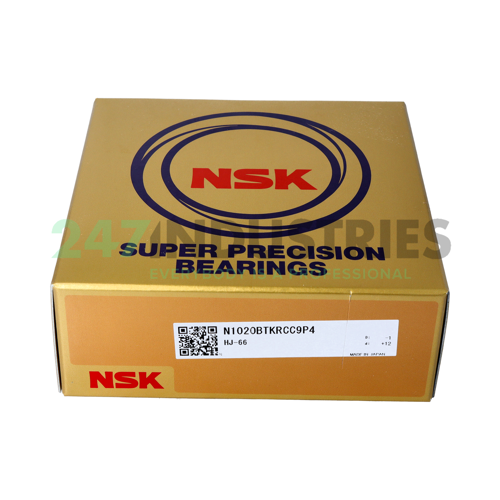

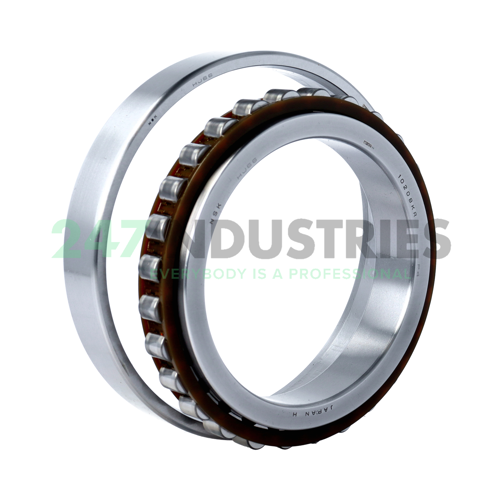

N1020BTKRCC9P4 NSK

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 150
3. Width (B) MM 24
4. Inner (d) Inch 3.937
5. Outer (D) Inch 5.9055
6. Width (B) Inch 0.9449

Suffix description

1. B Internal Design Modification
2. T Glass Fibre Reinforced Polyamide Cage
3. KR Ultra Precision Tapered Bore (1:12)
4. CC9 Clearance CC9 Is Applicable To Cylindrical Roller Bearings With Tapered Bores In ISO Tolerance Classes 5 And 4
5. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number N1020BTKRCC9P4 NSK
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.451

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P4 Precision (Higher than P5)
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
