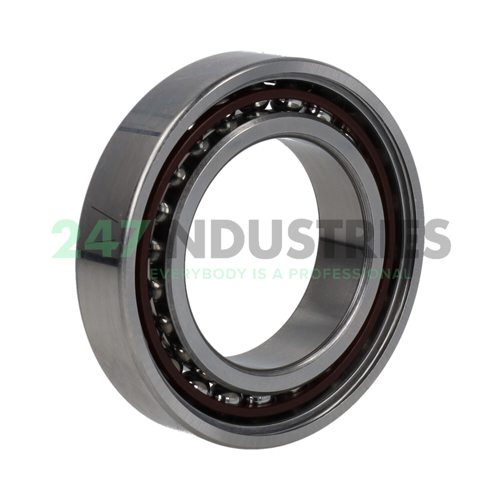

ML7008CVUJ74S SNR

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906

Suffix description

1. C 15° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. U Universal Single Bearing
4. J74S Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 7 Light Preload
6. S 4S ISO 2 For Run-Out ISO 4 For Other Characteristics

Technical details

1. Availability 1 pc
2. Brand SNR
3. Item number ML7008CVUJ74S SNR
4. EAN 3413520549121
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.185

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4S Precision (Higher than P4)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
