MCYRR50SX McGill

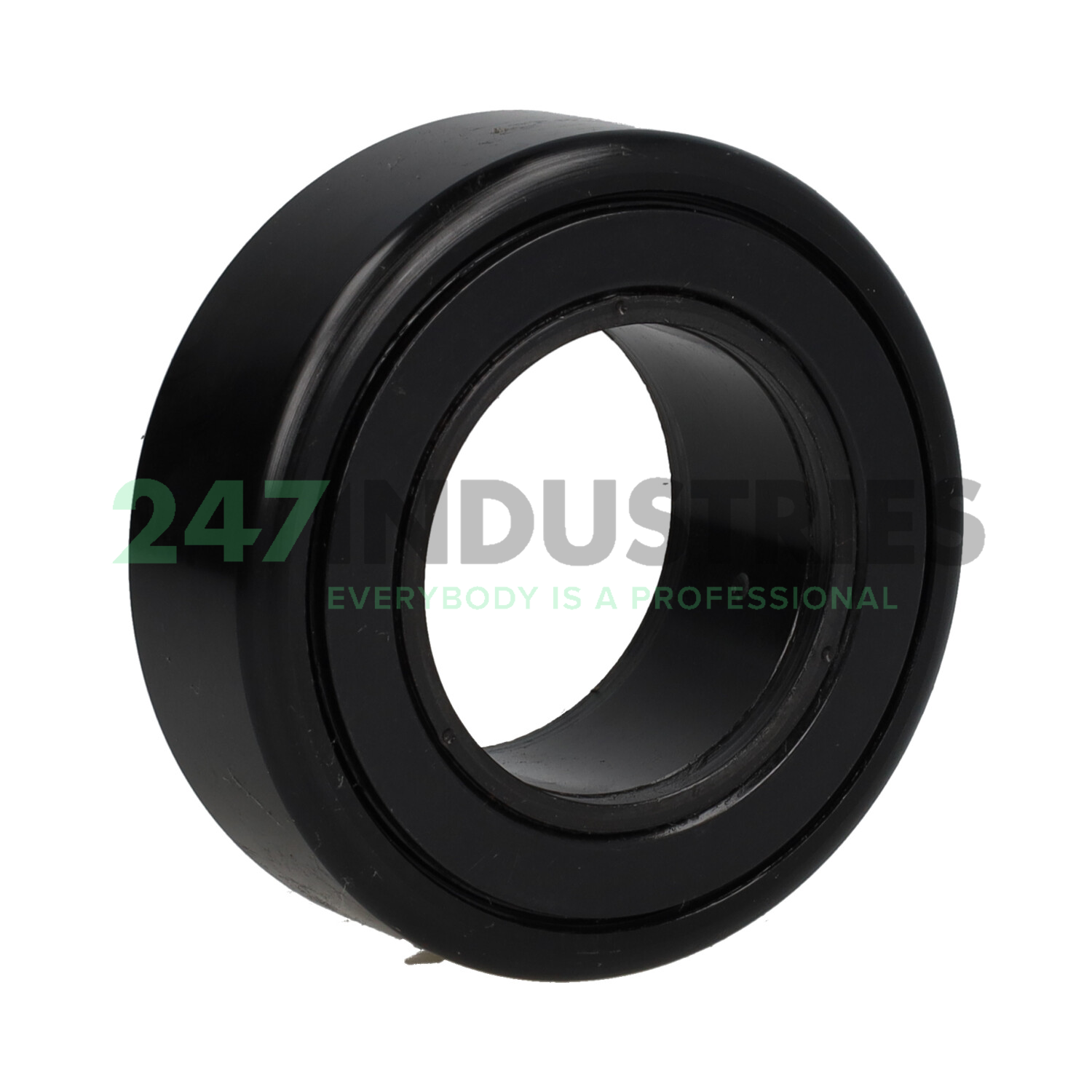

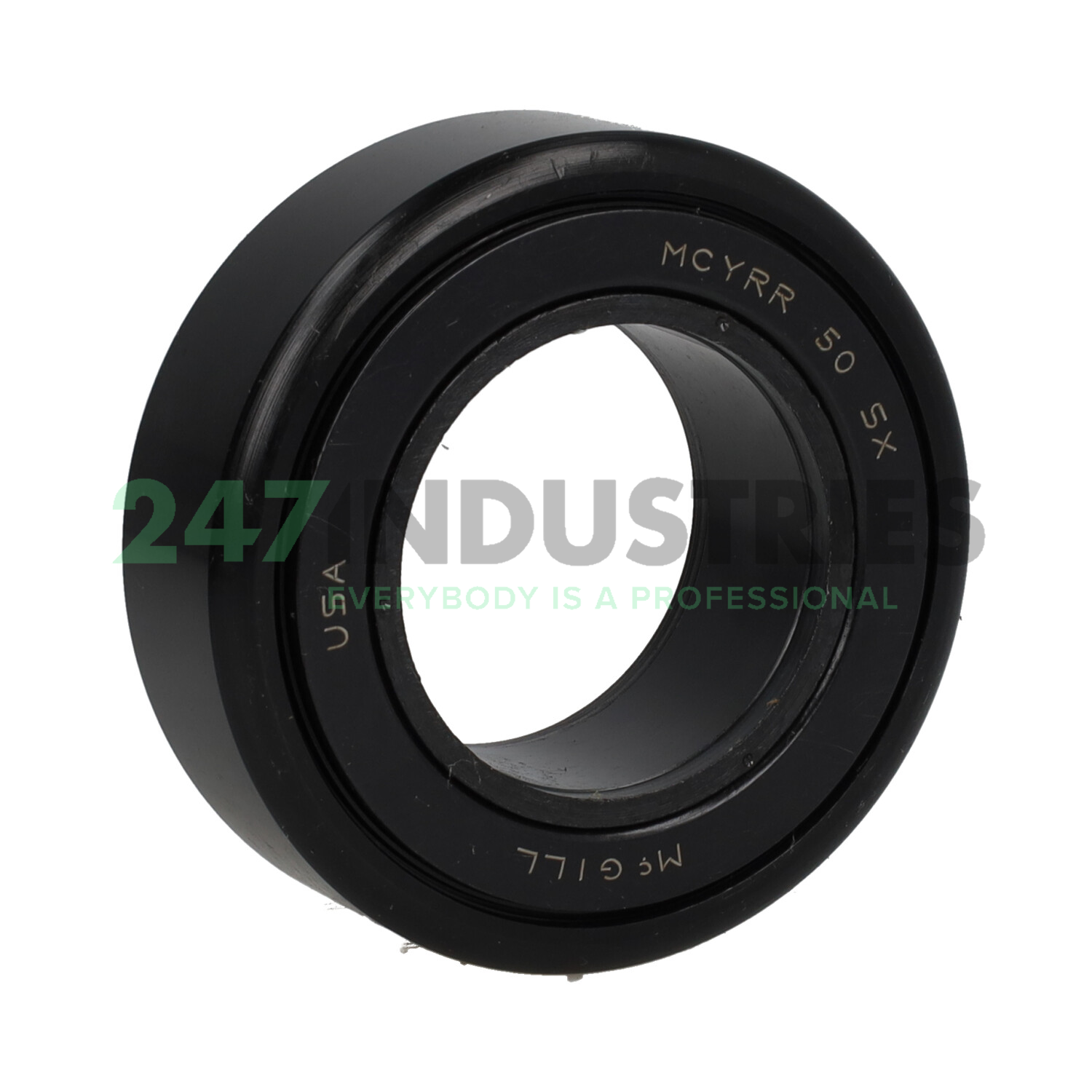

Yoke type track roller with needle rollers

Stock
10 pcs in stock and ready for shipment
Brand McGill
Article number MCYRR50SX McGill
Inside diameter 50mm
Outside diameter 90mm
Width 30mm
Product description

The MCYRR50SX McGill is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The MCYRR50SX McGill is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: MCYRR50SX McGill

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 90
  3. Width (B) MM 30
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 3.5433
  6. Width (B) Inch 1.1811

Suffix description

  1. S Cam Follower, Camrol, Sealed Version
  2. X Cylindrical Running Surface

Technical details

  1. Availability 10 pcs
  2. Brand McGill
  3. Item number MCYRR50SX McGill
  4. Also known as NATR50-X-PP-A
  5. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.98

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Running Surface Cylindrical
