MCFR47SX McGill

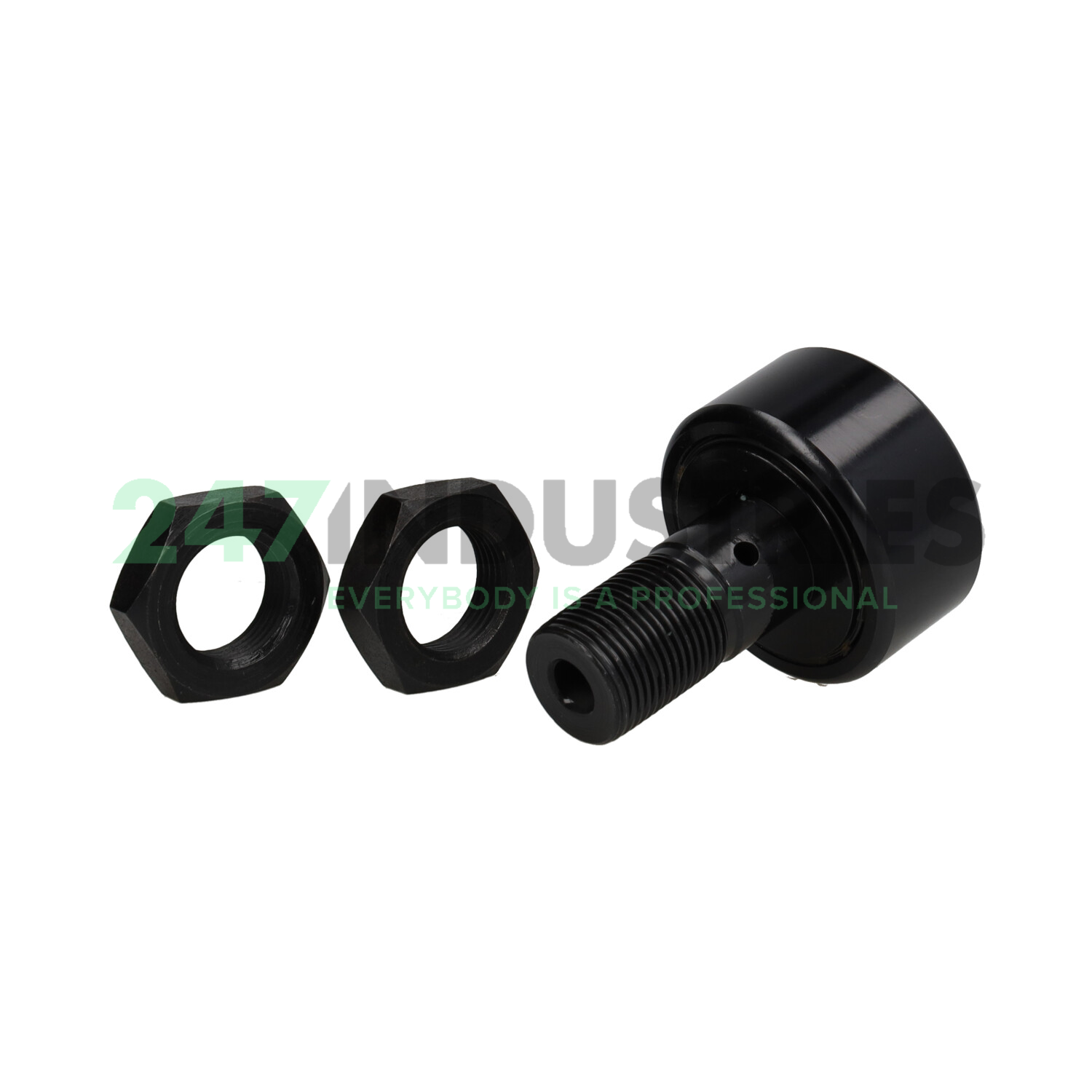

Cam follower with needle rollers

Stock
2 pcs in stock and ready for shipment
Brand McGill
Article number MCFR47SX McGill
Inside diameter 20mm
Outside diameter 47mm
Width 24mm
Product description

The MCFR47SX McGill is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The MCFR47SX McGill is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: MCFR47SX McGill

Product
Dimensions/Properties
Stock
Price ex VAT
KR47-X-PP-A INA
KR47-X-PP-A INA
Guaranteed same day shipment on orders placed before 18:00h (CET)
78,16 ex VAT
KR47-X-PP-A INA
Guaranteed same day shipment on orders placed before 18:00h (CET)

5 pcs
78,16 ex VAT
KR47PPXA SKF
KR47PPXA SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
91,71 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
KR47PPXA SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

5 pcs
91,71 ex VAT
KR47PPX SKF
KR47PPX SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
91,71 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
KR47PPX SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
91,71 ex VAT
KR47PPX AKN
KR47PPX AKN
Guaranteed same day shipment on orders placed before 18:00h (CET)
45,63 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
KR47PPX AKN
Guaranteed same day shipment on orders placed before 18:00h (CET)

10 pcs
45,63 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 24
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.9449

Suffix description

  1. S Cam Follower, Camrol, Sealed Version
  2. X Cylindrical Running Surface

Technical details

  1. Availability 2 pcs
  2. Brand McGill
  3. Item number MCFR47SX McGill
  4. Also known as KR47-X-PP-A
  5. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.385

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Cylindrical
