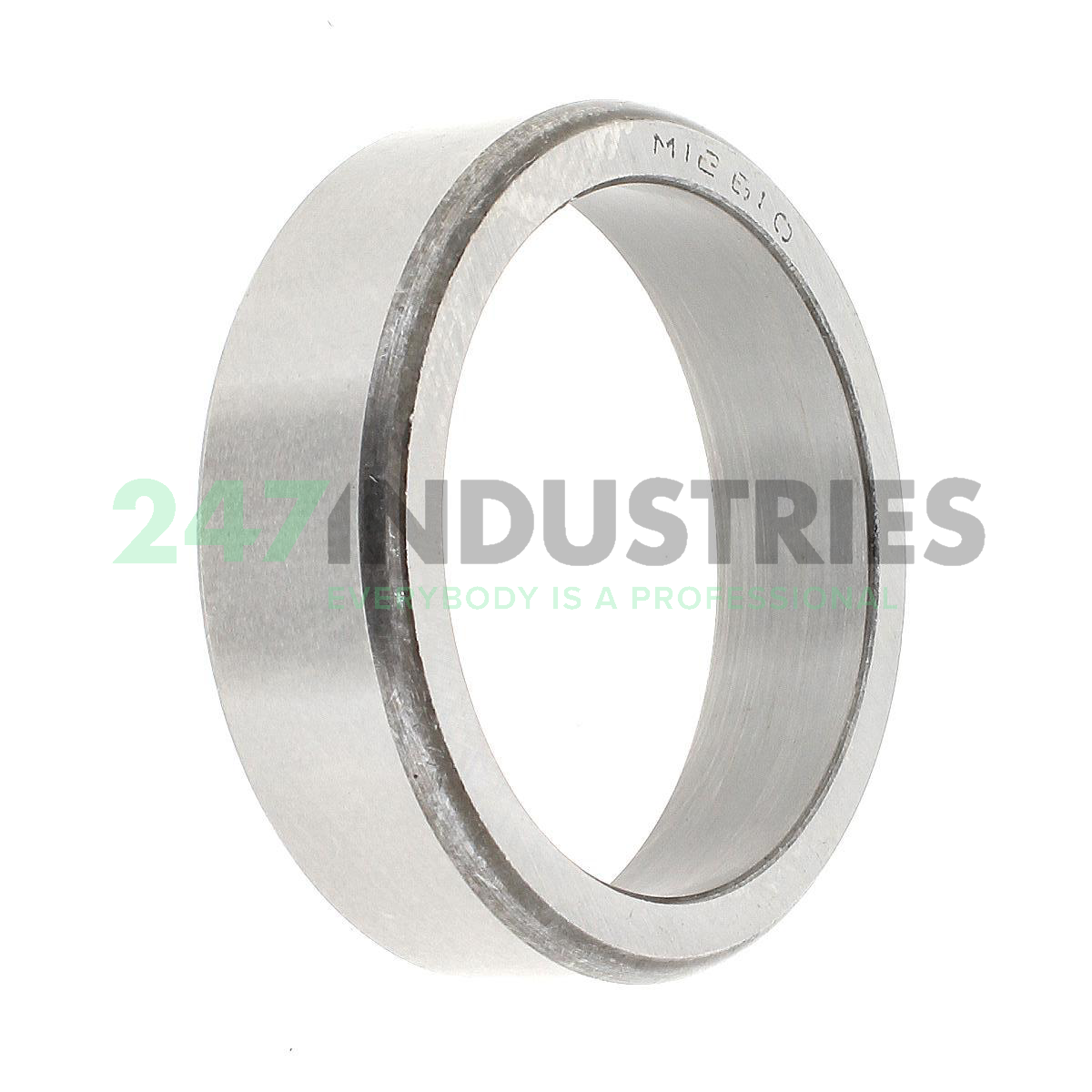

M12610 A&S - Fersa

Cup for single-row tapered roller bearing

Stock
not in stock
Brand A&S - Fersa
Article number M12610 A&S - Fersa
Outside diameter 50mm
Width 13,97mm
Product description

The M12610 A&S - Fersa is a cup for a single-row tapered roller bearing. This cup is an outer ring that can be combined with a separately available cone (the cage with rolling elements), to form a complete tapered roller bearing. The outer and inner rings have conical raceways and the roller elements are conical as well. This design enables tapered roller bearings to absorb radial and axial forces (in one direction). The greater the angle between the outer ring and the centre line of the bearing, the greater the axial load capacity.

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the M12610 A&S - Fersa with a matching cone from the same manufacturer.

Read more Show less
Help with this product

Similar to: M12610 A&S - Fersa

Product
Dimensions/Properties
Stock
Price ex VAT

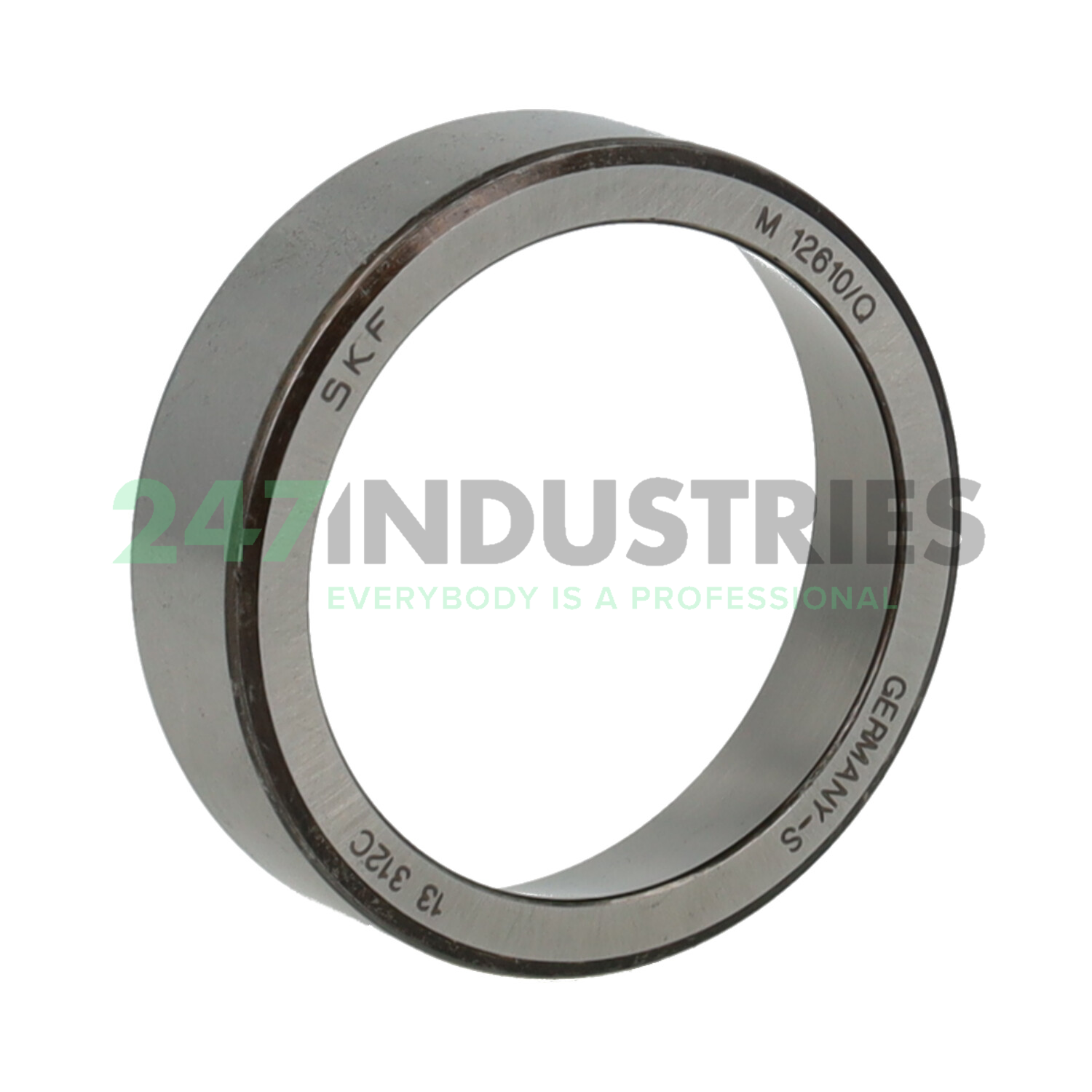

M12610/Q SKF
M12610/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
8,24 ex VAT
  • Inside diameter 0mm
  • Outside diameter 50,00mm
  • Width 13,97mm
M12610/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
8,24 ex VAT

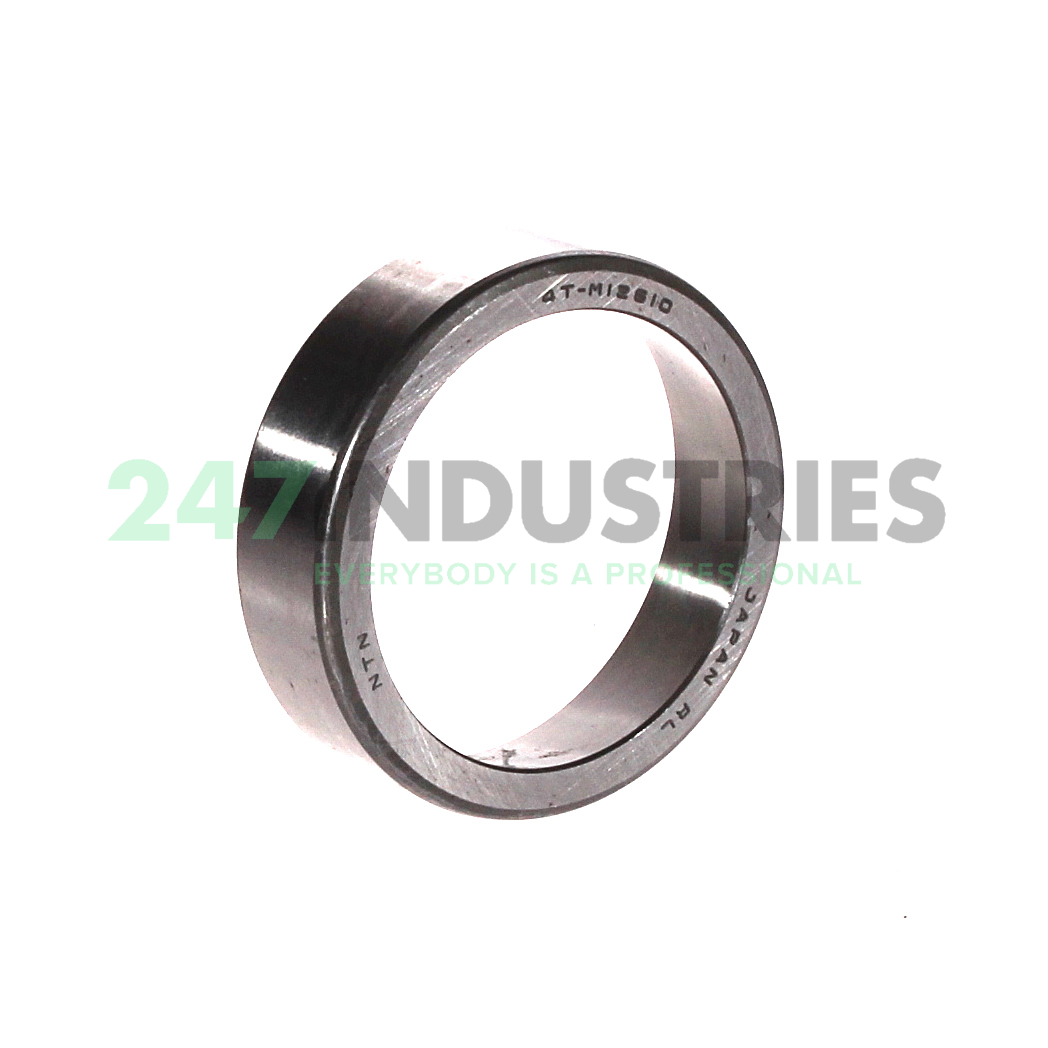

4T-M12610 NTN
4T-M12610 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
3,56 ex VAT
  • Inside diameter 0mm
  • Outside diameter 50,00mm
  • Width 13,97mm
4T-M12610 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
3,56 ex VAT
M12610 Peer
M12610 Peer
Guaranteed same day shipment on orders placed before 18:00h (CET)
2,19 ex VAT
  • Inside diameter 0mm
  • Outside diameter 50,00mm
  • Width 13,97mm
M12610 Peer
Guaranteed same day shipment on orders placed before 18:00h (CET)

228 pcs
2,19 ex VAT
M12610 Neutral
M12610 Neutral
Guaranteed same day shipment on orders placed before 18:00h (CET)
1,22 ex VAT
  • Inside diameter 0mm
  • Outside diameter 50,00mm
  • Width 13,97mm
M12610 Neutral
Guaranteed same day shipment on orders placed before 18:00h (CET)

13 pcs
1,22 ex VAT

Product specifications

All dimensions

  1. Outer (D) MM 50
  2. Width (B) MM 13,97
  3. Outer (D) Inch 1.9687
  4. Width (B) Inch 0.55

Technical details

  1. Availability 0 pcs
  2. Brand A&S - Fersa
  3. Item number M12610 A&S - Fersa
  4. Category Cup for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.06
Show all details Show less
