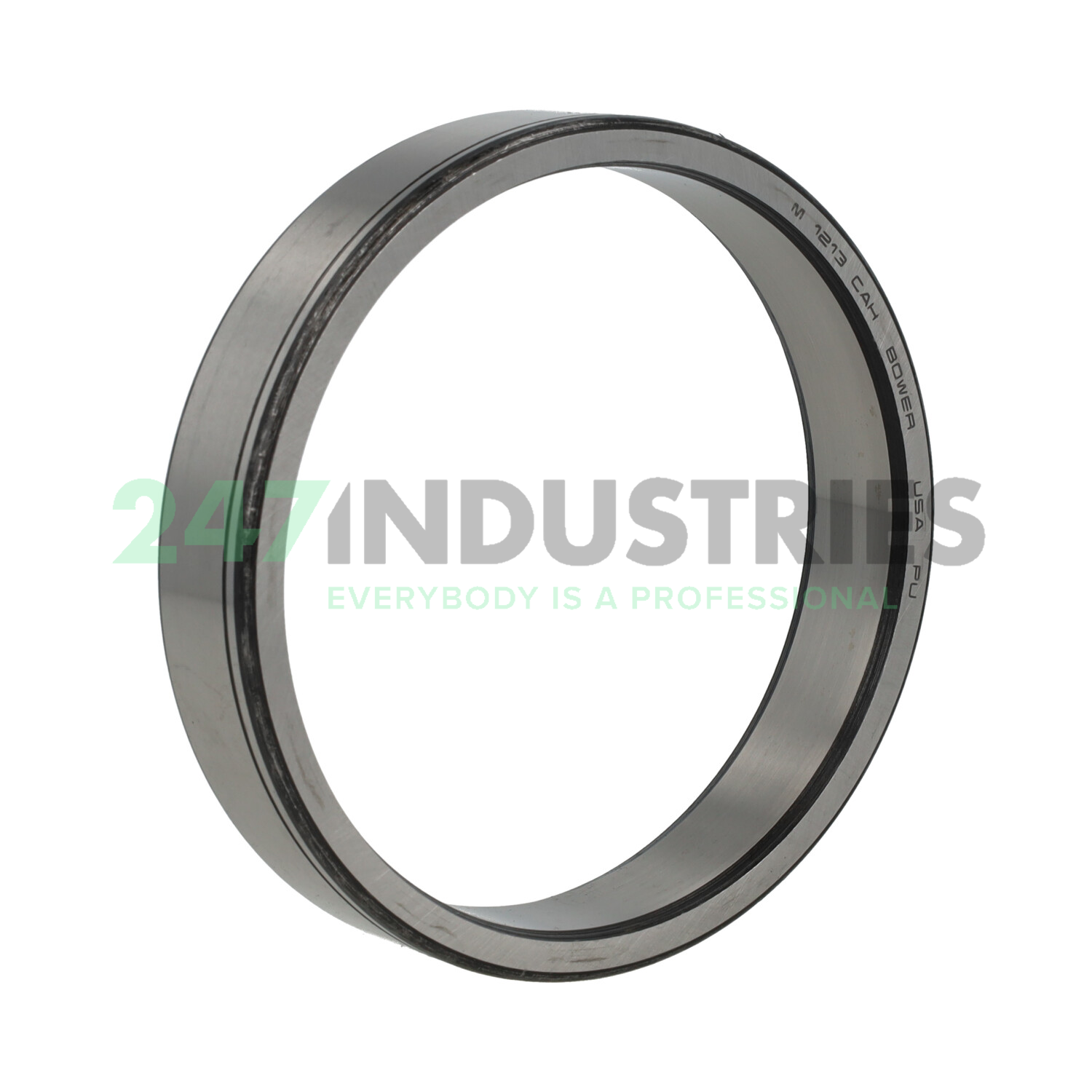

M1213CAH Federal Mogul

All dimensions

1. Inner (d) MM 0,00
2. Outer (D) MM 120,00
3. Width (B) MM 23,00
4. Inner (d) Inch 0.0000
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055

Suffix description

1. C Plain Outer Ring
2. A Oversized O.D. For Heavy Press Fit in Standard Housing Bore
3. H Blind Dowel Hole in Outer Ring O.D

Technical details

1. Availability 0 pcs
2. Brand Federal Mogul
3. Item number M1213CAH Federal Mogul
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.438

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
