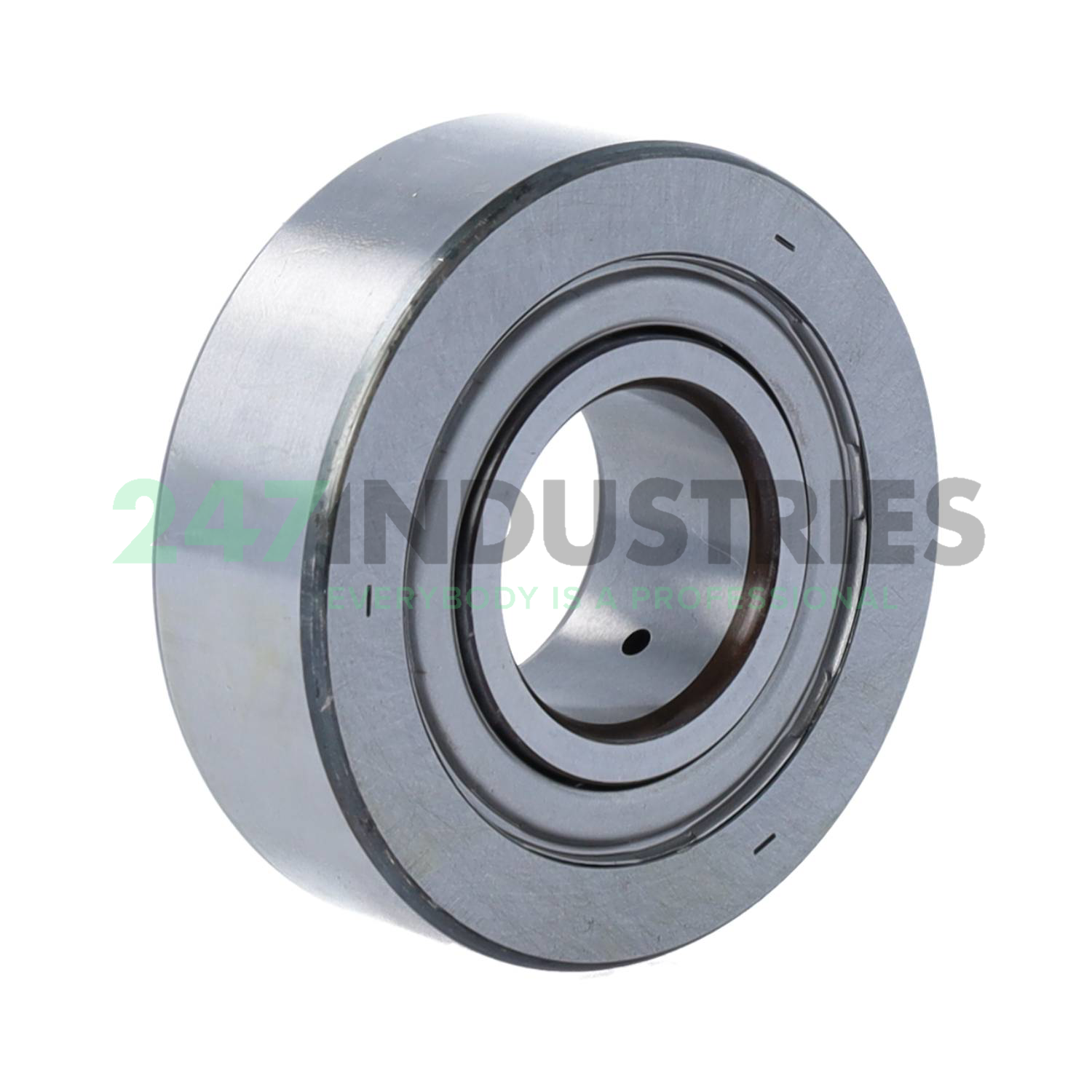

LZ3205B-2ZRSTNG YRLN5 NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 20,6
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.811

Suffix description

1. B 25° Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. S Lubrication Hole In Inner Ring
4. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66
5. YRL Lubricant, Operating Temperature -30 ~ 120°C
6. N Normal Filling 35%

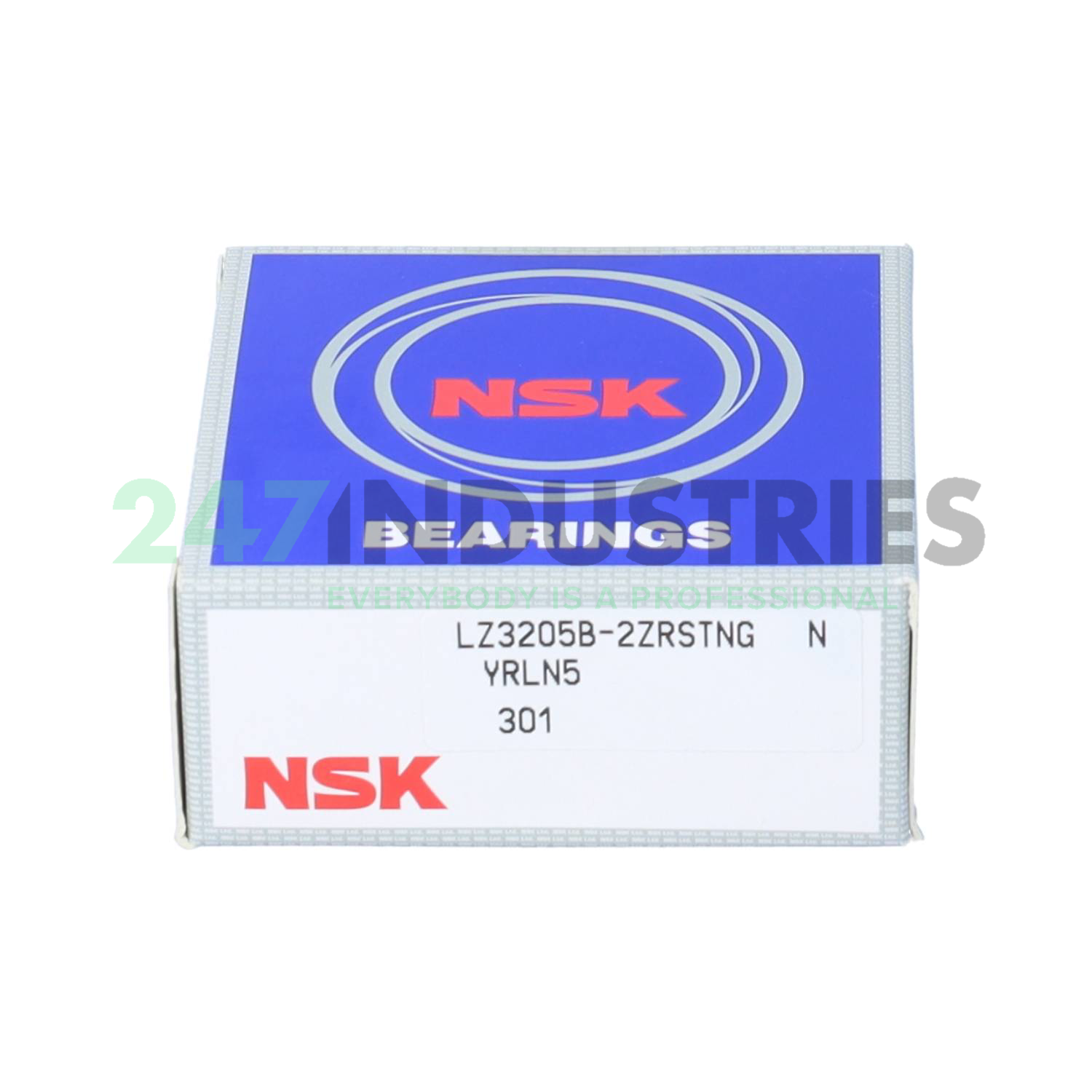

7. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 56 pcs
2. Brand NSK
3. Item number LZ3205B-2ZRSTNG YRLN5 NSK
4. Also known as 305705C-2Z
   542705
   LR5205KDD
   LR5205-X-2Z

5. Category Support Roller

Weight and Dimensions

1. Weight (kg) 0.32

Product Properties

1. Seal ZZ/2Z - Steel Seal on Two Sides
2. Running Surface Cylindrical
