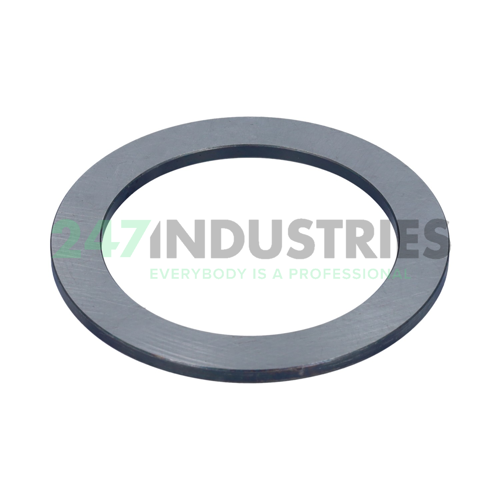

LS7095 INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 95
3. Width (B) MM 5,25
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.2067
7. Outside diameter track washer (D) mm 95
8. Width (b) mm 5,25
9. Chamfer width (a min) mm 1,5

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number LS7095 INA
4. Also known as 0000550770000

5. EAN 4012801026178
6. Category Washer for Needle Roller Thrust Bearings

Weight and Dimensions

1. Weight (kg) 0.123

Data from Schaeffler (medias)

1. Chamfer angle 45
2. ECLASS number 23-05-91-90
3. ECLASS2 number 23-05-91-90
4. Medias description Bearing washers, suitable for AXK and K811
