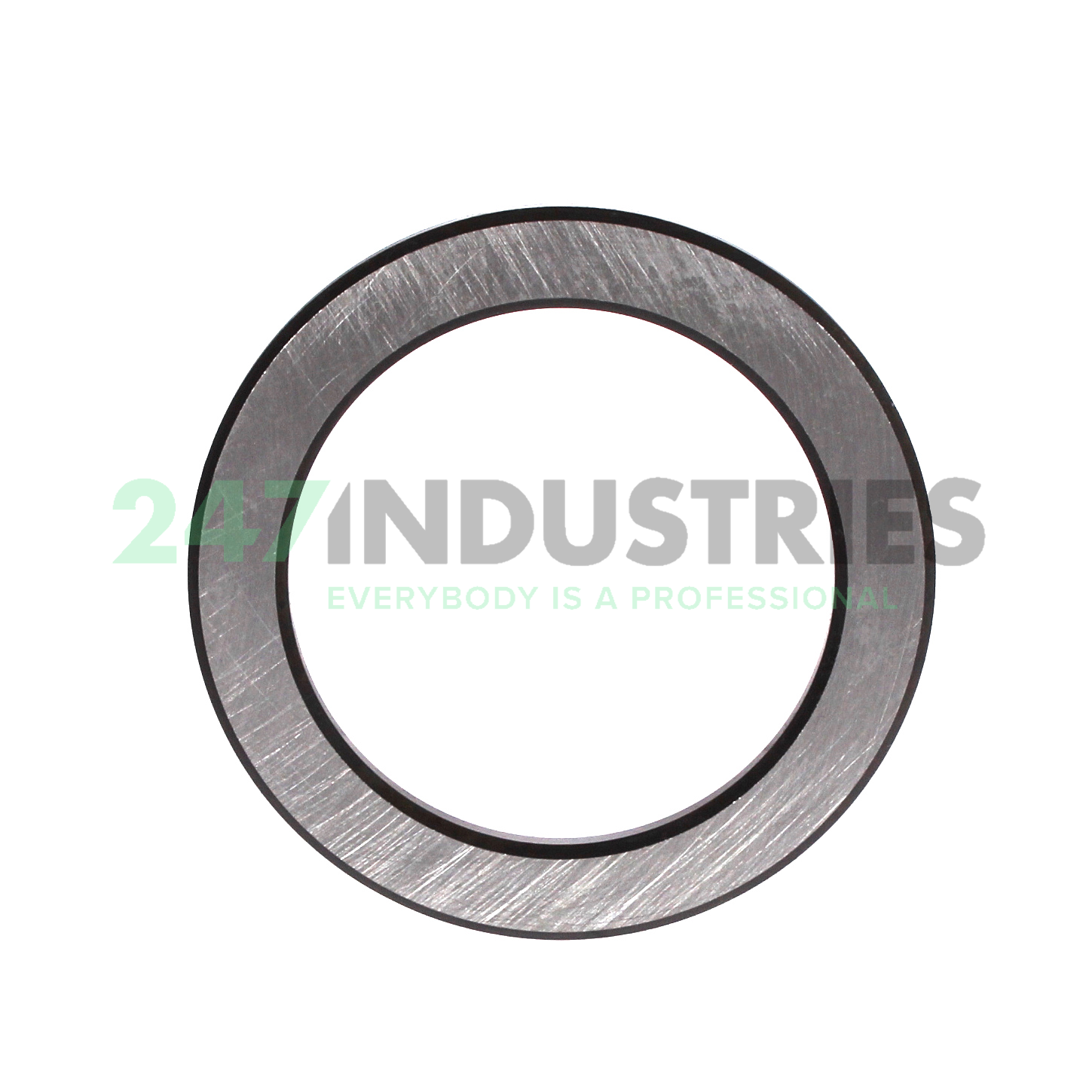

LS6590 INA

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 90
3. Width (B) MM 5,25
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.2067
7. Outside diameter track washer (D) mm 90
8. Width (b) mm 5,25
9. Chamfer width (a min) mm 1,5

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number LS6590 INA
4. Also known as 0000551740000

5. EAN 4012802713947
6. Category Washer for Needle Roller Thrust Bearings

Weight and Dimensions

1. Weight (kg) 0.115

Data from Schaeffler (medias)

1. Chamfer angle 45
2. ECLASS number 23-05-91-90
3. ECLASS2 number 23-05-91-90
4. Medias description Bearing washers, suitable for AXK and K811
