LR5006NPPU GL ZEN

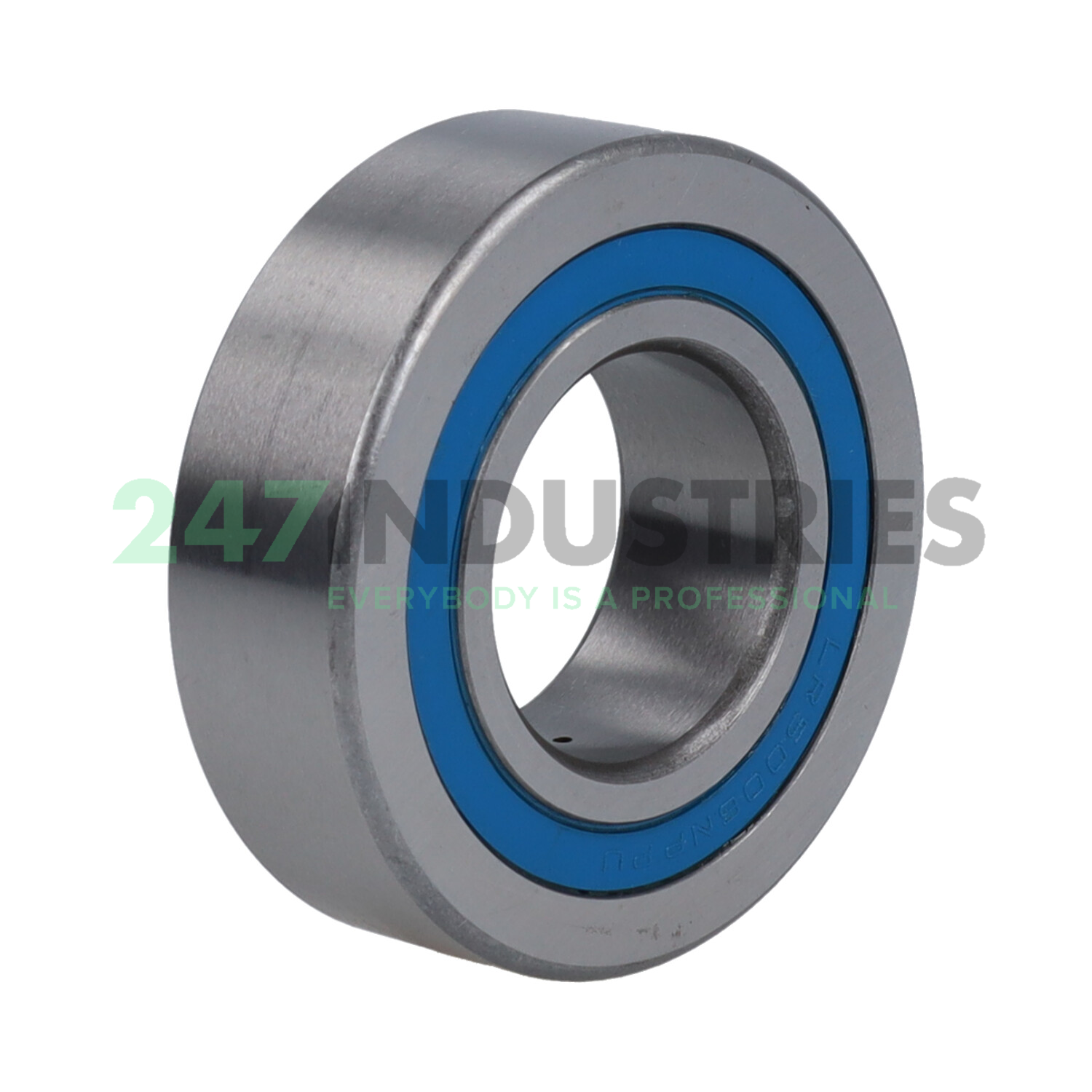

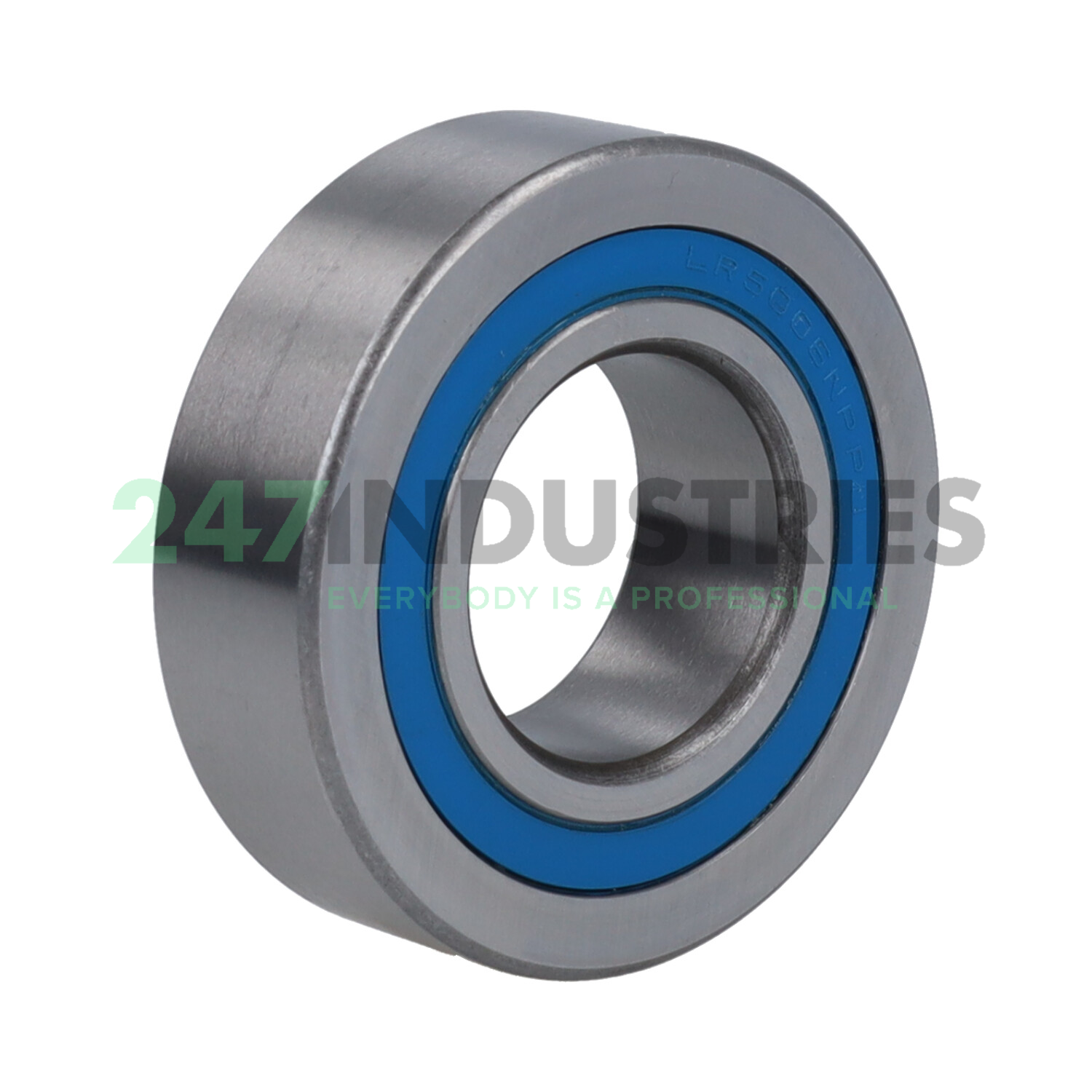

Ball-bearing yoke type track roller

Stock
3 pcs in stock and ready for shipment
Brand ZEN
Article number LR5006NPPU GL ZEN
Inside diameter 30mm
Outside diameter 62mm
Width 19mm
Product description

The LR5006NPPU GL ZEN is a ball-bearing Yoke type track roller, of which the rolling elements combine low friction with high precision. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The LR5006NPPU GL ZEN is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: LR5006NPPU GL ZEN

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 62
  3. Width (B) MM 19
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 0.748

Suffix description

  1. NPP Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
  2. U Crowned Outside Surface
  3. GL Grease Lubricant

Technical details

  1. Availability 3 pcs
  2. Brand ZEN
  3. Item number LR5006NPPU GL ZEN
  4. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.25

Product Properties

  1. Seal 2RZ - Rubber and Steel Seal
  2. Running Surface Standard
