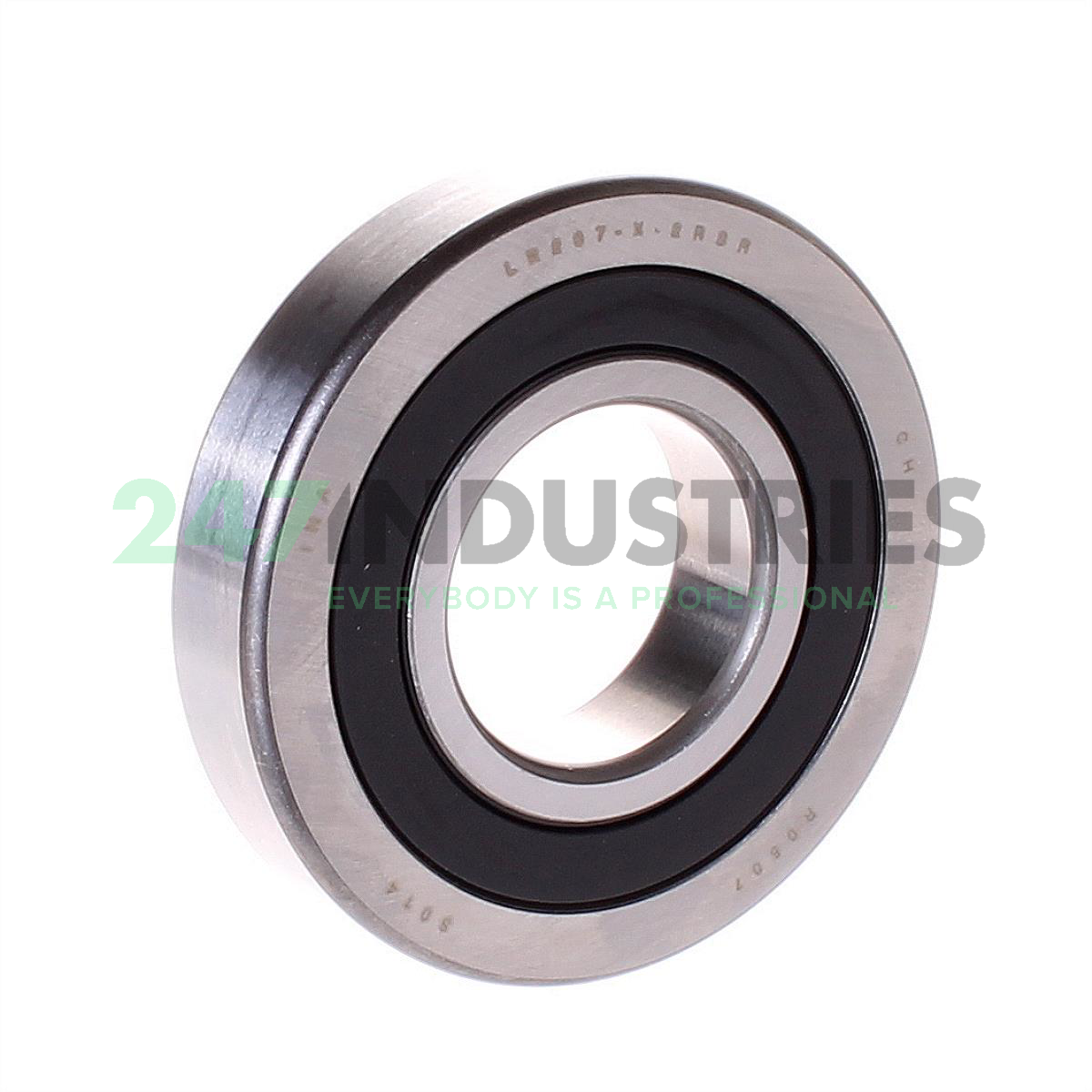

LR207-X-2RSR>A INA

Ball-bearing yoke type track roller

Stock
not in stock
Brand INA
Article number LR207-X-2RSR>A INA
Product description

The LR207-X-2RSR>A INA is a ball-bearing Yoke type track roller, of which the rolling elements combine low friction with high precision. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The LR207-X-2RSR>A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: LR207-X-2RSR>A INA

Loading similair products

Product specifications

All dimensions

  1. Height (C) mm 17

Suffix description

  1. X Cylindrical Running Surface
  2. 2RSR Rubber Seals At Each Side Of The Bearing, Temperature Range -30 ~ 120℃
  3. >A Alteration In Internal Construction. Identical To Old Notation

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number LR207-X-2RSR>A INA
  4. Also known as LR207NPP
  5. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.4

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 21900
  2. Basic static load rating, radial (C 0r) 12400
  3. Speed on permanent grease lubrication (n D G) 4500
Show all details Show less
