LM78310C Timken

15,03 ex VAT
€ 18,18 in VAT
€ 18,18 in VAT
15,03 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

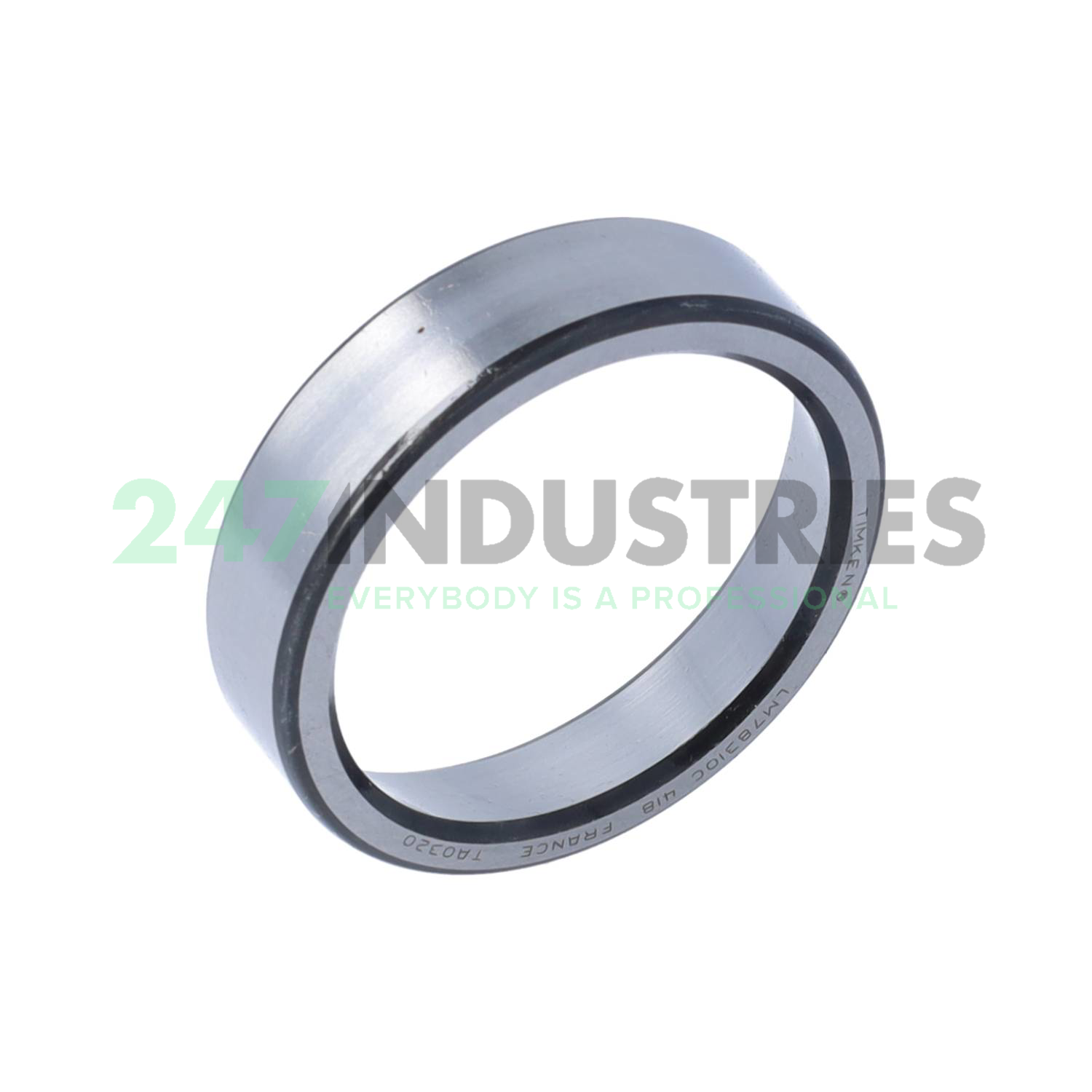

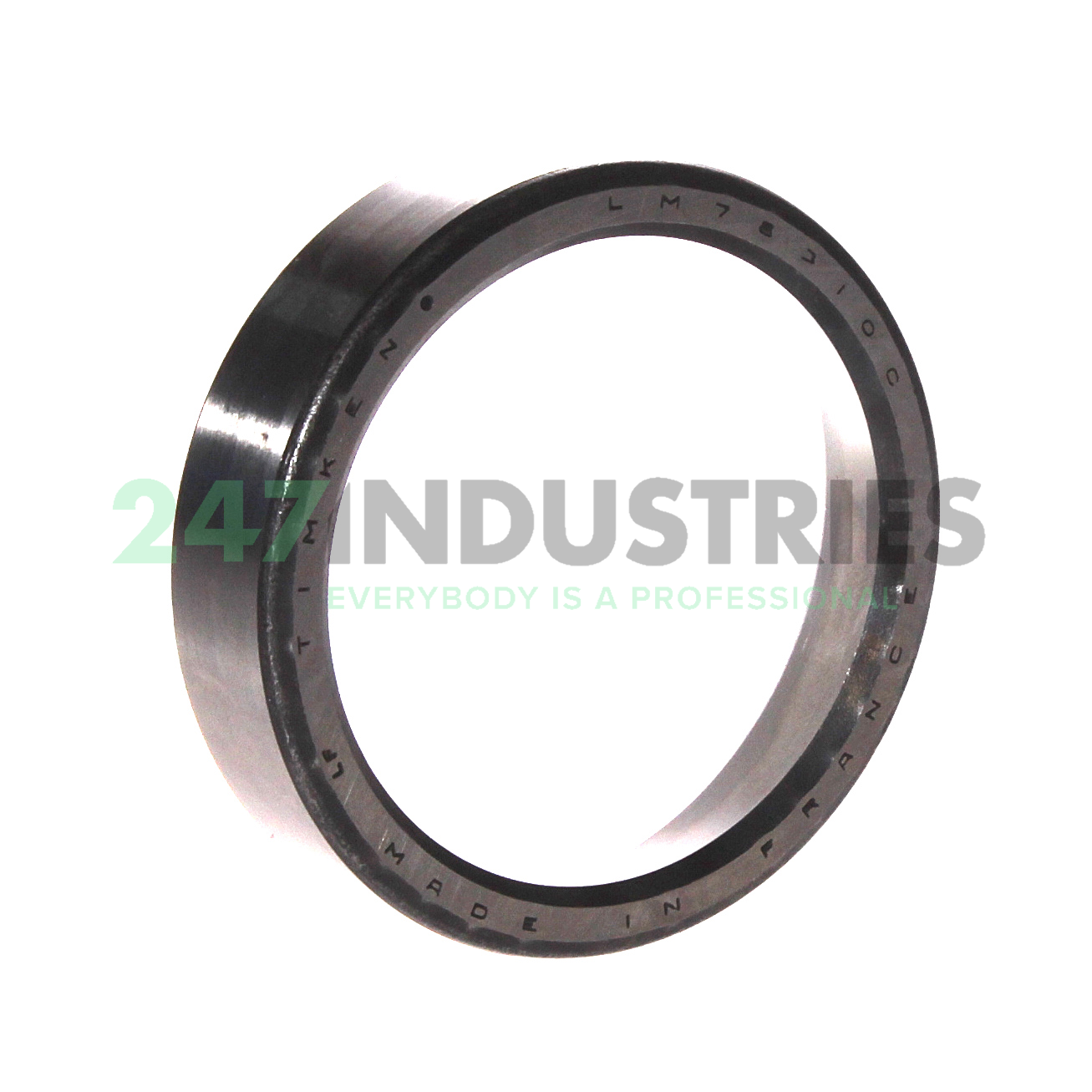

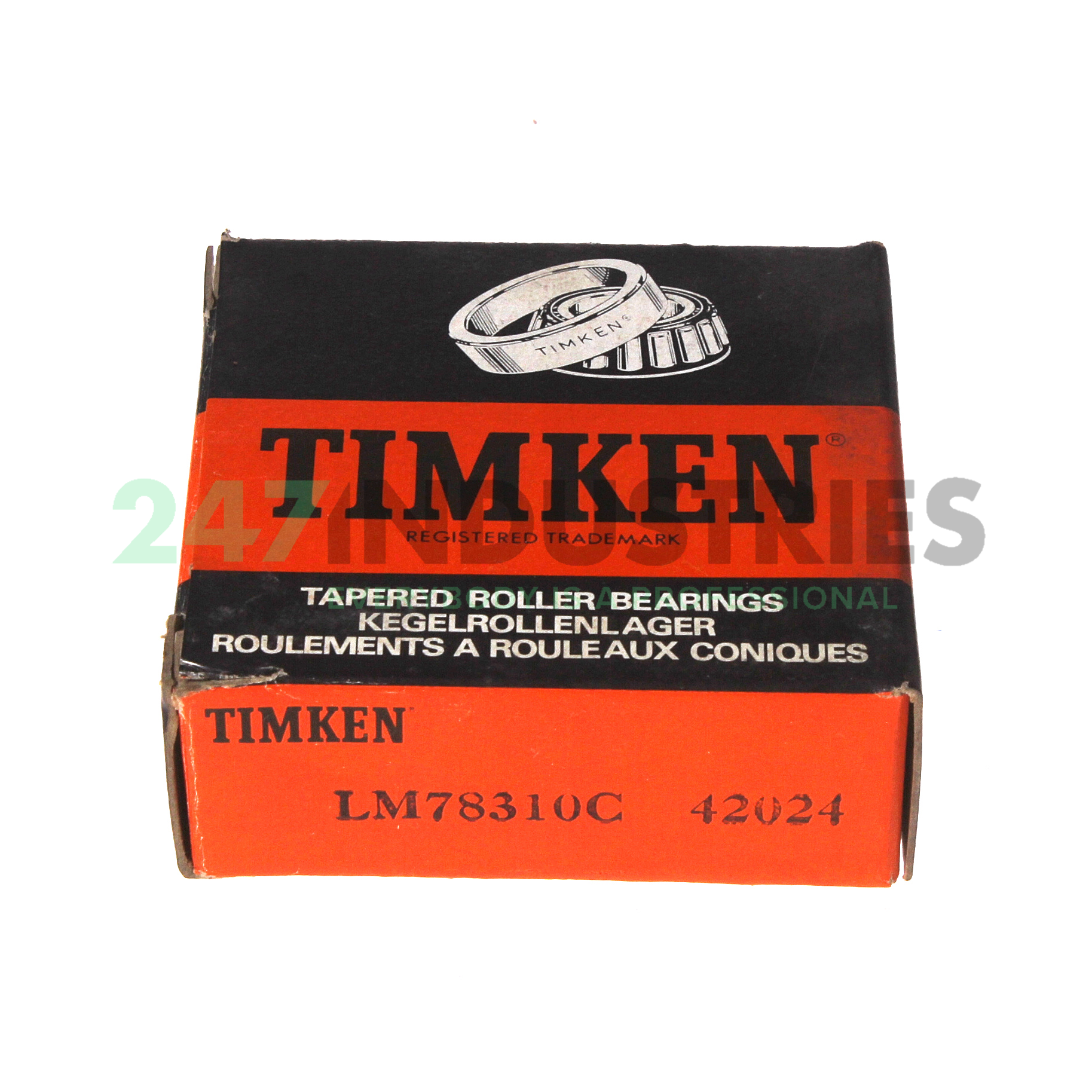

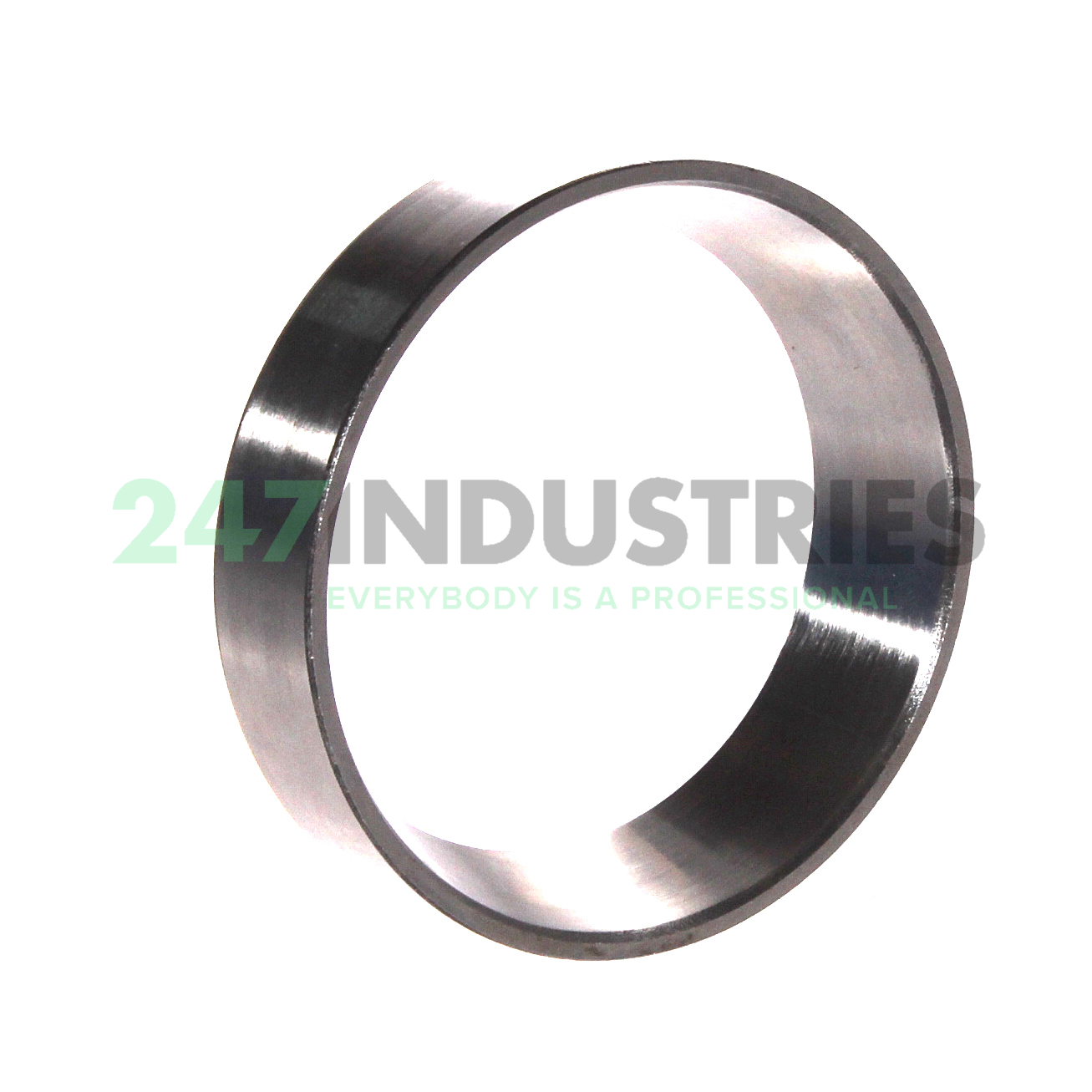

LM78310C Timken

Cup for single-row tapered roller bearing

Stock
21 pcs in stock and ready for shipment
Brand Timken
Article number LM78310C Timken
Outside diameter 61,97mm
Width 15mm
Product description

The LM78310C Timken is a cup for a single-row tapered roller bearing. This cup is an outer ring that can be combined with a separately available cone (the cage with rolling elements), to form a complete tapered roller bearing. The outer and inner rings have conical raceways and the roller elements are conical as well. This design enables tapered roller bearings to absorb radial and axial forces (in one direction). The greater the angle between the outer ring and the centre line of the bearing, the greater the axial load capacity.

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the LM78310C Timken with a matching cone from the same manufacturer.

Read more Show less
Help with this product

Similar to: LM78310C Timken

Product
Dimensions/Properties
Stock
Price ex VAT
LM78310C-20024 Timken
LM78310C-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
15,03 ex VAT
  • Inside diameter 0mm
  • Outside diameter 61,97mm
  • Width 15mm
LM78310C-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

11 pcs
15,03 ex VAT

Product specifications

All dimensions

  1. Outer (D) MM 61,97
  2. Width (B) MM 15
  3. Outer (D) Inch 2.4399
  4. Width (B) Inch 0.5906

Suffix description

  1. C Dimensionally Different From Basic Part Number (Non-Interchangeable)

Technical details

  1. Availability 21 pcs
  2. Brand Timken
  3. Item number LM78310C Timken
  4. Also known as LM78310C-20024
    LM78310C-20471
  5. Category Cup for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.076
Show all details Show less
