LM72849F NTN

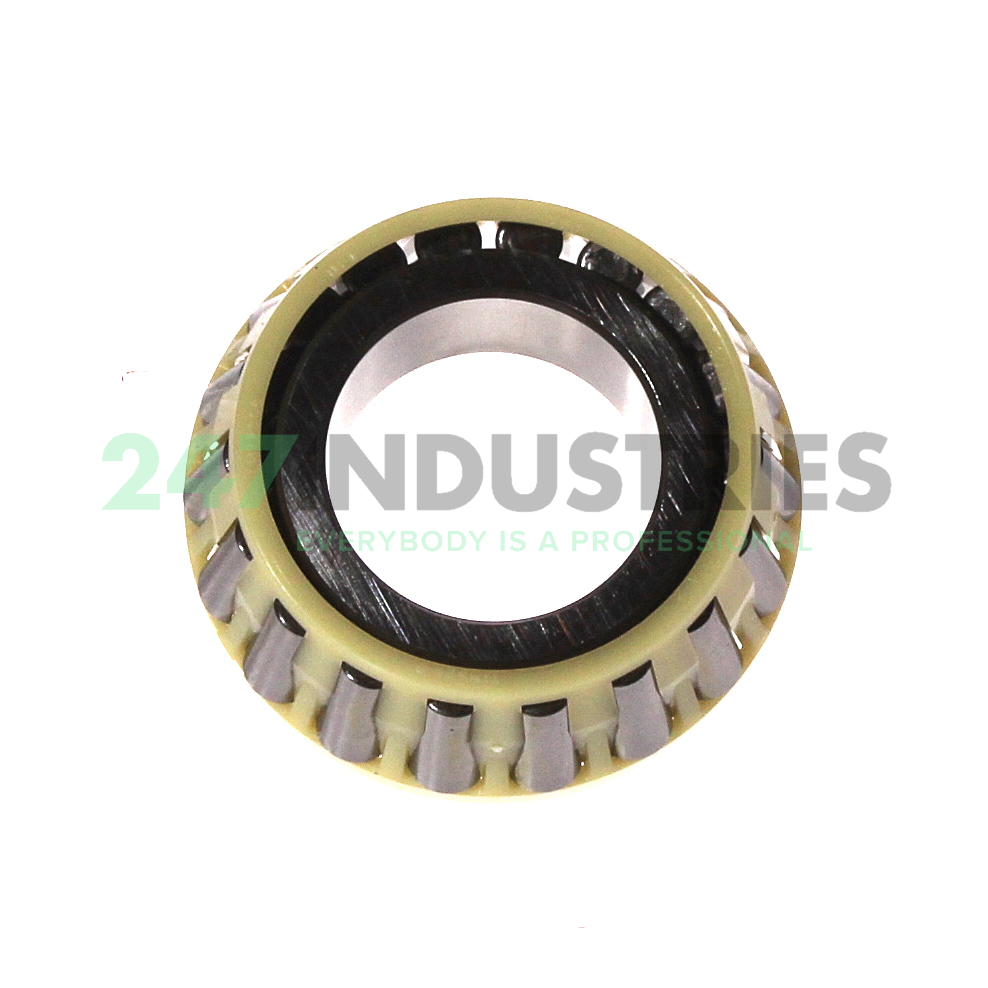

Cone for single-row tapered roller bearing

Stock
not in stock
Brand NTN
Article number LM72849F NTN
Inside diameter 22,61mm
Width 15,5mm
Product description

The LM72849F NTN is a cone for a single-row tapered roller bearing. This removable cone consists of the inner ring and rollers of the bearing. Together with a separately available cup (or outer ring), these parts make up a complete tapered roller bearing. The inner and outer rings have conical raceways and the rollers are tapered. This design enables tapered roller bearings to absorb radial and axial forces (in one direction).

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the LM72849F NTN with a matching cup from the same manufacturer.

Read more Show less
Help with this product

Similar to: LM72849F NTN

Product
Dimensions/Properties
Stock
Price ex VAT

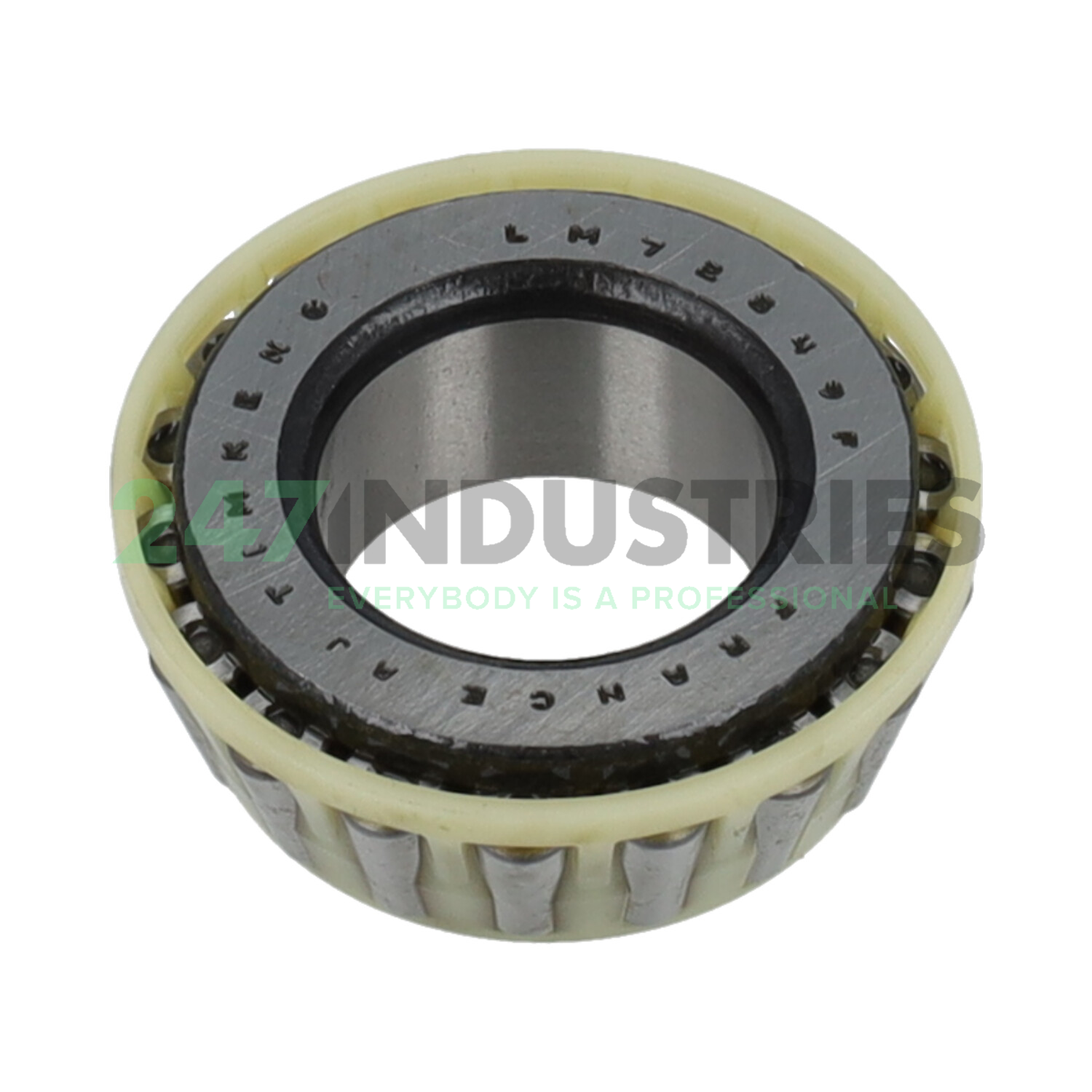

LM72849F Timken
LM72849F Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
35,96 ex VAT
  • Inside diameter 22,61mm
  • Outside diameter 0mm
  • Width 15,5mm
LM72849F Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

8 pcs
35,96 ex VAT
LM72849F 40024 Timken
LM72849F 40024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
35,96 ex VAT
  • Inside diameter 22,61mm
  • Outside diameter 0mm
  • Width 15,5mm
LM72849F 40024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

13 pcs
35,96 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 22,61
  2. Width (B) MM 15,5
  3. Inner (d) Inch 0.89
  4. Width (B) Inch 0.6102

Suffix description

  1. F Assembled With Polymer Cage

Technical details

  1. Availability 0 pcs
  2. Brand NTN
  3. Item number LM72849F NTN
  4. Category Cone for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.174
