LM603014 NTN

10,40 ex VAT
€ 12,58 in VAT
€ 12,58 in VAT
10,40 ex VAT

4 similar products for LM603014 NTN in stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

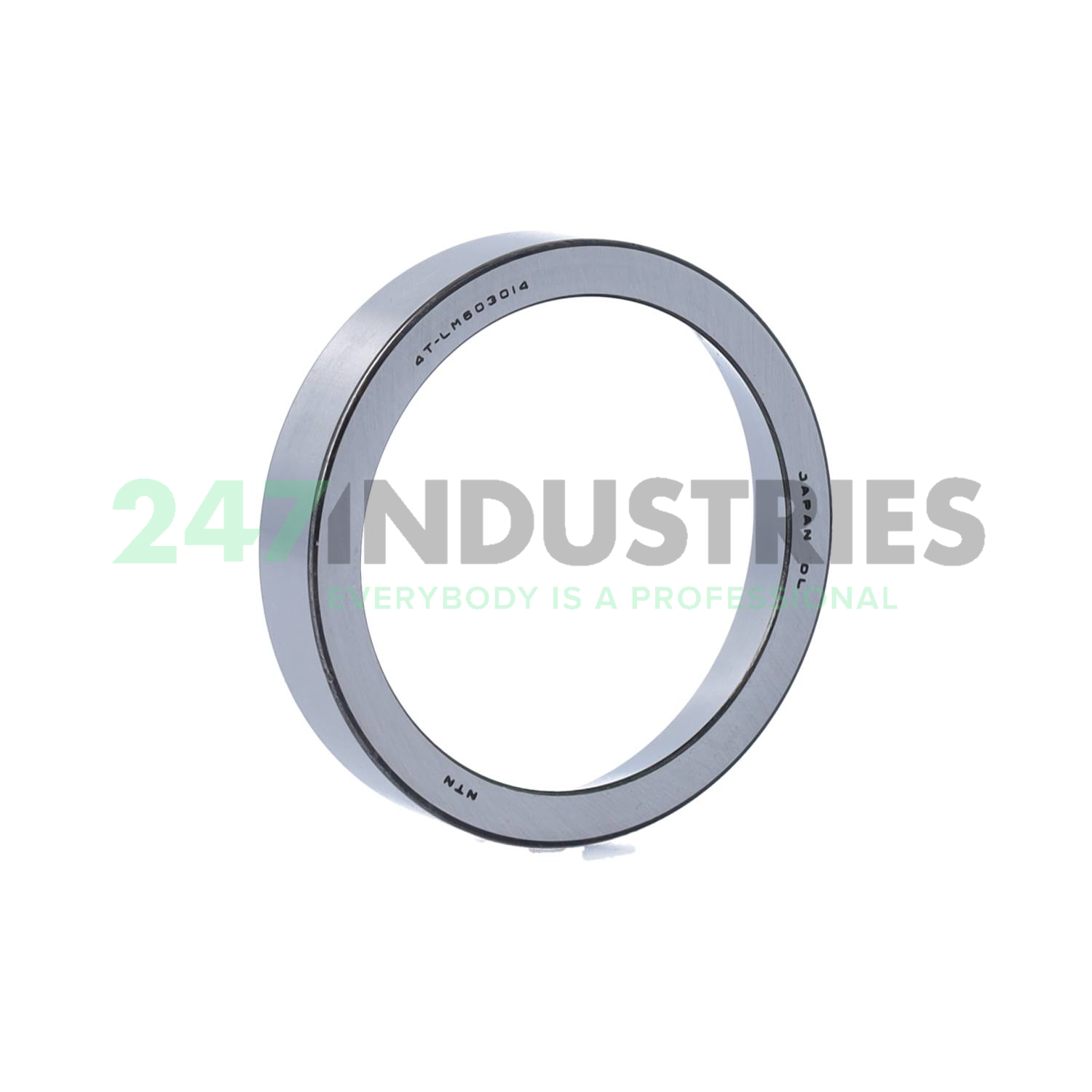

LM603014 NTN

Cup for single-row tapered roller bearing

Stock
not in stock
Brand NTN
Article number LM603014 NTN
Outside diameter 79,97mm
Width 17,08mm
Product description

The LM603014 NTN is a cup for a single-row tapered roller bearing. This cup is an outer ring that can be combined with a separately available cone (the cage with rolling elements), to form a complete tapered roller bearing. The outer and inner rings have conical raceways and the roller elements are conical as well. This design enables tapered roller bearings to absorb radial and axial forces (in one direction). The greater the angle between the outer ring and the centre line of the bearing, the greater the axial load capacity.

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the LM603014 NTN with a matching cone from the same manufacturer.

Read more Show less
Help with this product

Similar to: LM603014 NTN

Product
Dimensions/Properties
Stock
Price ex VAT

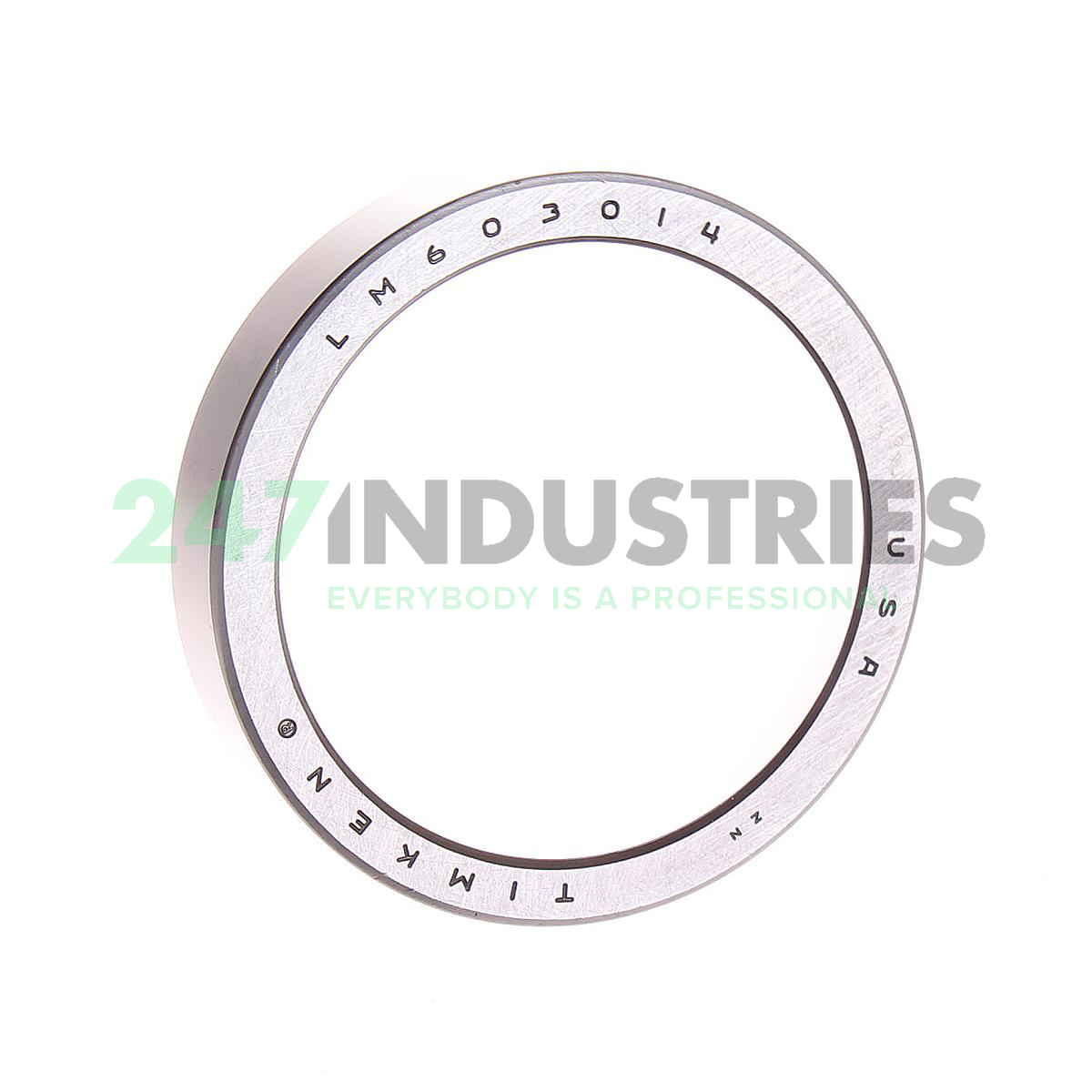

LM603014 Timken
LM603014 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
29,19 ex VAT
  • Inside diameter 0mm
  • Outside diameter 79,97mm
  • Width 17,08mm
LM603014 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
29,19 ex VAT
4T-LM603014 NTN
4T-LM603014 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
10,40 ex VAT
  • Inside diameter 0mm
  • Outside diameter 79,97mm
  • Width 17,08mm
4T-LM603014 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
10,40 ex VAT

Product specifications

All dimensions

  1. Outer (D) MM 79,97
  2. Width (B) MM 17,08
  3. Outer (D) Inch 3.1486
  4. Width (B) Inch 0.5937

Suffix description

  1. A
  2. PX2 Special Tolerance (From PX1 Onward)

Technical details

  1. Availability 0 pcs
  2. Brand NTN
  3. Item number LM603014 NTN
  4. Also known as 4T-LM603014
  5. Category Cup for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.155
Show all details Show less
