LM503349/LM503310 Timken

Single-row tapered roller bearing

Stock
34 pcs in stock and ready for shipment
Brand Timken
Article number LM503349/LM503310 Timken
Inside diameter 45,99mm
Outside diameter 74,98mm
Width 18mm
Product description

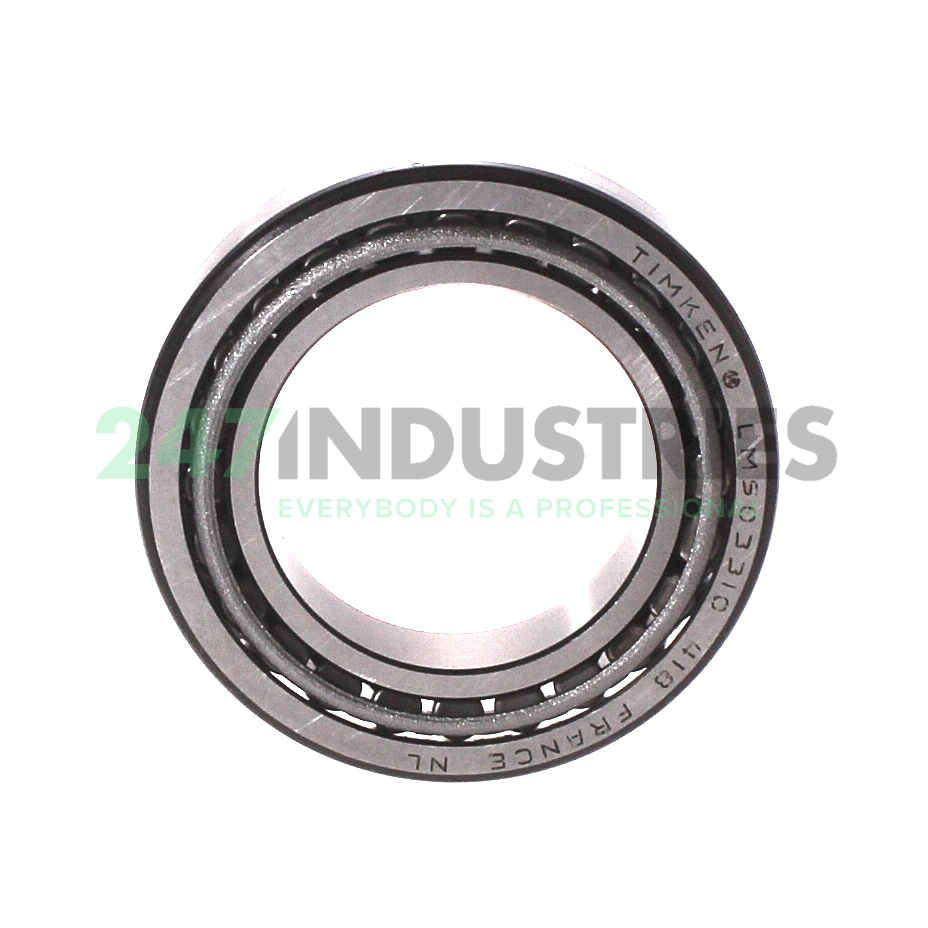

The LM503349/LM503310 Timken is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

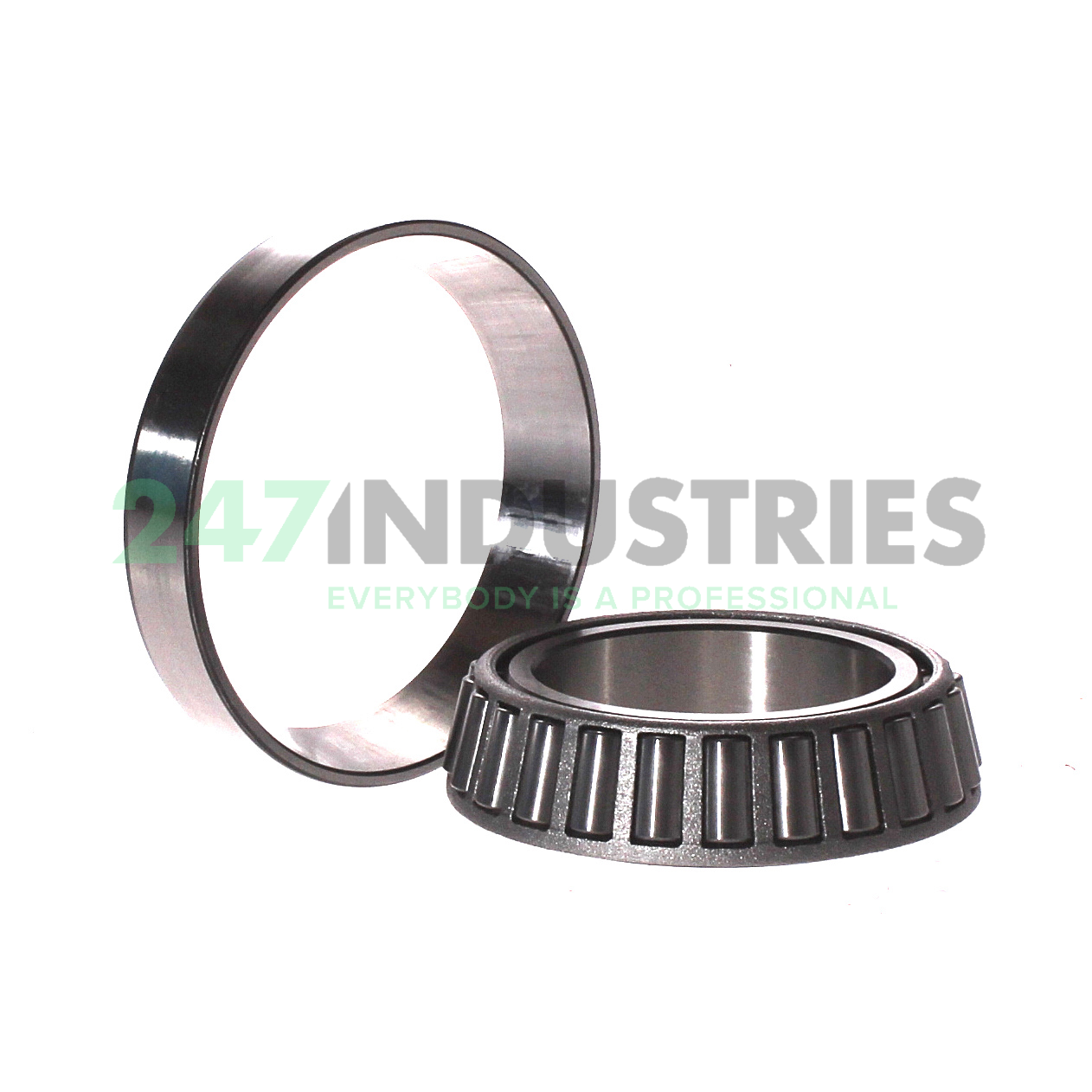

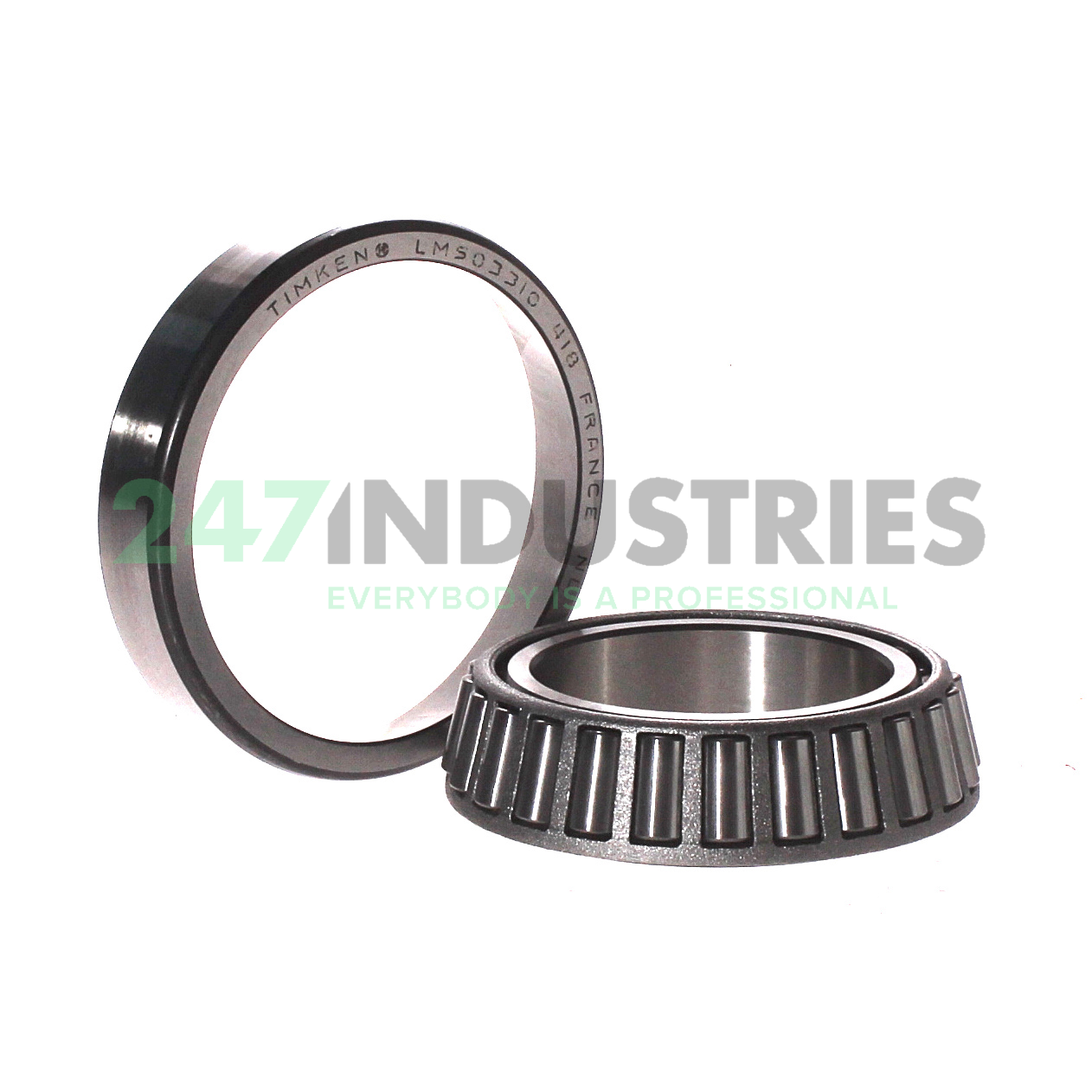

The LM503349/LM503310 Timken is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: LM503349/LM503310 Timken

Product
Dimensions/Properties
Stock
Price ex VAT
4T-LM503349/LM503310 NTN
4T-LM503349/LM503310 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
19,88 ex VAT
  • Inside diameter 45,99mm
  • Outside diameter 74,98mm
  • Width 18,00mm
4T-LM503349/LM503310 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
19,88 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 45,99
  2. Outer (D) MM 74,98
  3. Width (B) MM 18
  4. Inner (d) Inch 1.8105
  5. Outer (D) Inch 2.9518
  6. Width (B) Inch 0.7087

Technical details

  1. Availability 34 pcs
  2. Brand Timken
  3. Item number LM503349/LM503310 Timken
  4. Also known as LM503349/310
    LM503349-20024/310-20024
    LM503349-90402
    LM503349-90404
    LM503349-99404
    LM503349-9T402
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.3

Product Properties

  1. Precision Standard Precision
