LM29749.LM29710CZ FAG

Single-row tapered roller bearing

Stock
not in stock
Brand FAG
Article number LM29749.LM29710CZ FAG
Inside diameter 38,1mm
Outside diameter 65,09mm
Width 18,29mm
Product description

The LM29749.LM29710CZ FAG is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The LM29749.LM29710CZ FAG is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Downloads and links

Similar to: LM29749.LM29710CZ FAG

Product
Dimensions/Properties
Stock
Price ex VAT

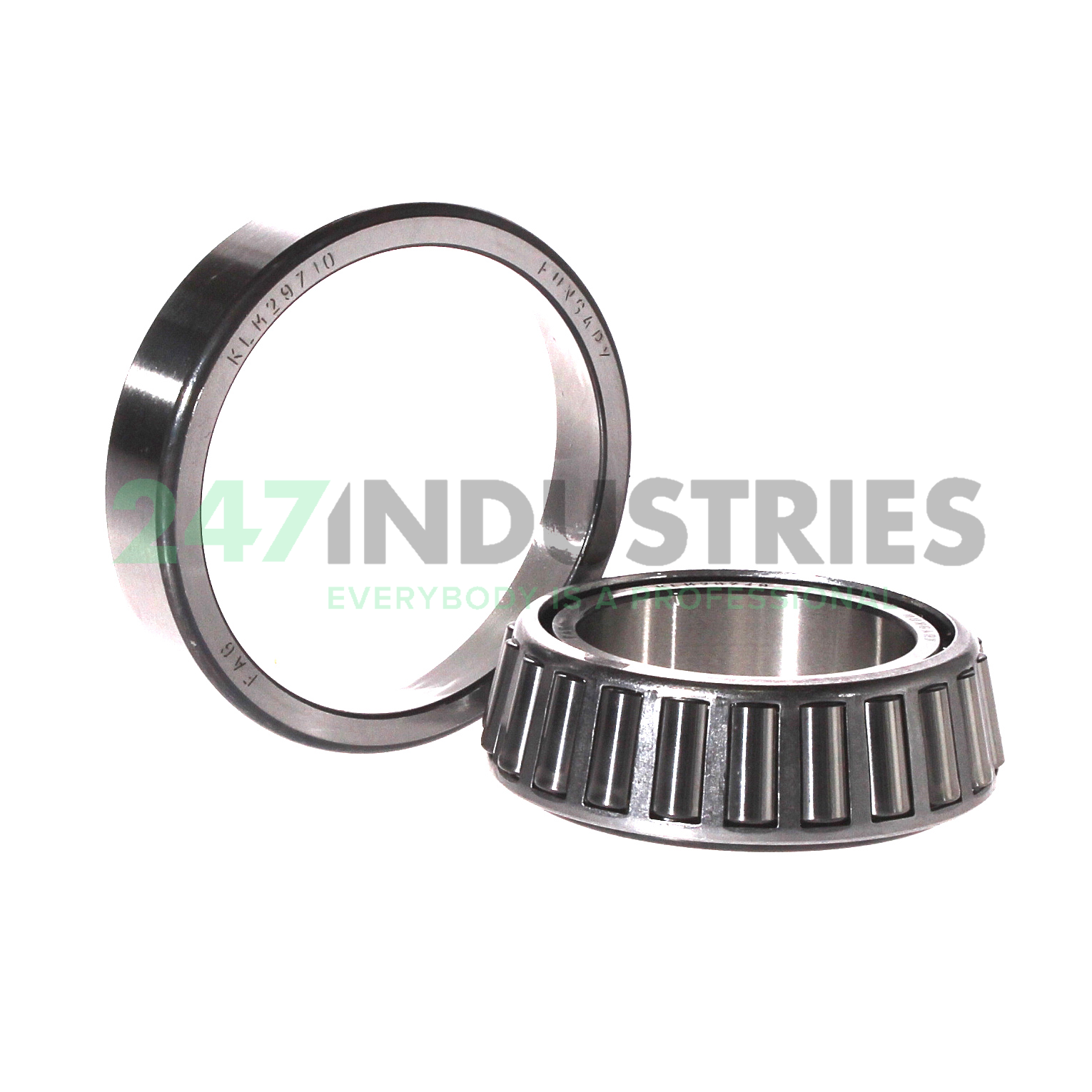

KLM29749-LM29710 FAG
KLM29749-LM29710 FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)
19,66 ex VAT
  • Inside diameter 38,1mm
  • Outside diameter 65,09mm
  • Width 18,29mm
KLM29749-LM29710 FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)

60 pcs
19,66 ex VAT

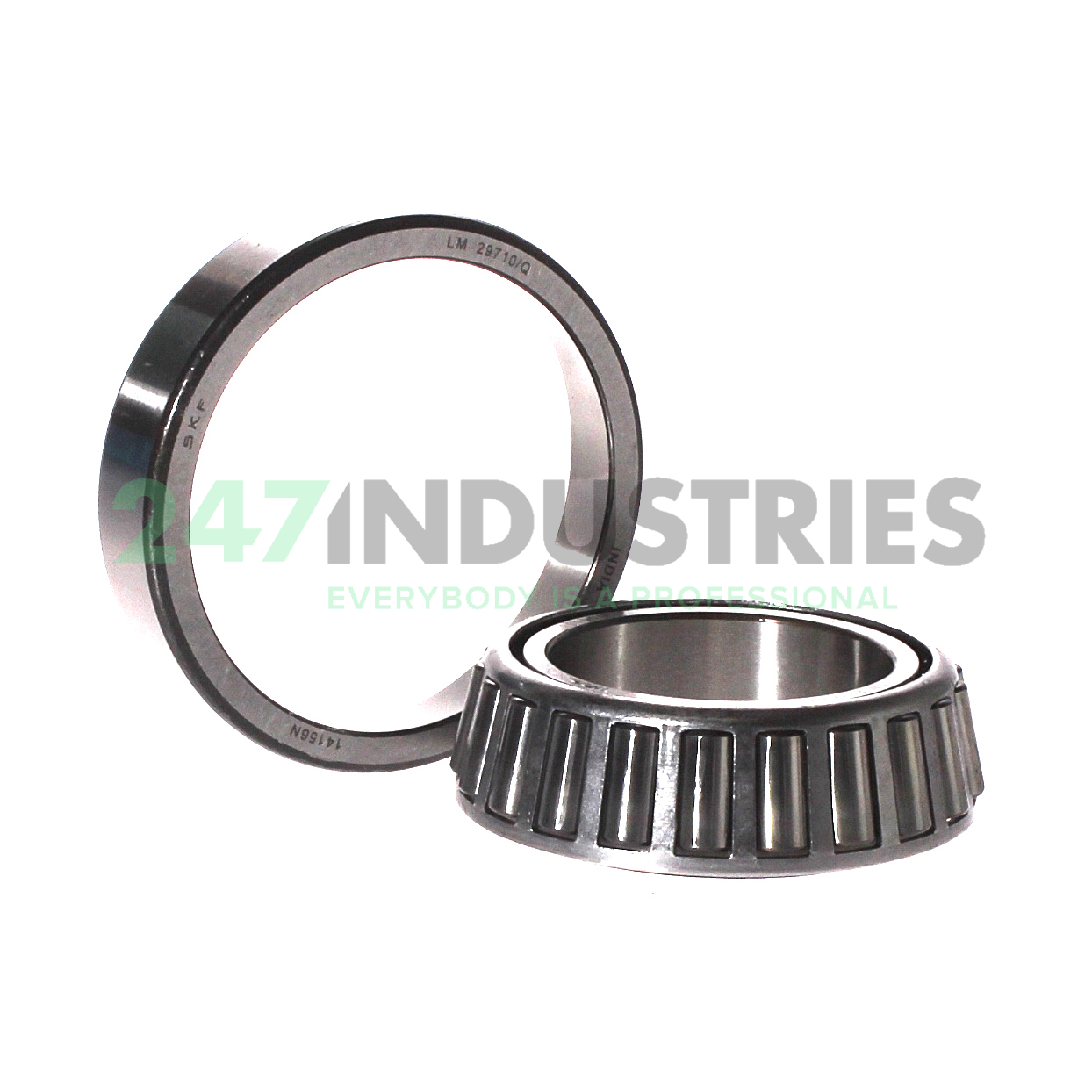

LM29749/710/Q SKF
LM29749/710/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
15,47 ex VAT
  • Inside diameter 38,1mm
  • Outside diameter 65,09mm
  • Width 18,29mm
LM29749/710/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

56 pcs
15,47 ex VAT
LM29749/LM29710 Timken
LM29749/LM29710 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
34,56 ex VAT
  • Width 18,29mm
LM29749/LM29710 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

266 pcs
34,56 ex VAT
LM29749/LM29710 Koyo (JTEKT)
LM29749/LM29710 Koyo (JTEKT)
Guaranteed same day shipment on orders placed before 18:00h (CET)
15,78 ex VAT
LM29749/LM29710 Koyo (JTEKT)
Guaranteed same day shipment on orders placed before 18:00h (CET)

11 pcs
15,78 ex VAT
LM29749R/LM29710R NSK
LM29749R/LM29710R NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)
12,30 ex VAT
  • Inside diameter 38,1mm
  • Outside diameter 65,09mm
  • Width 18,29mm
LM29749R/LM29710R NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)

40 pcs
12,30 ex VAT
Show more (2) Show less

Product specifications

All dimensions

  1. Inner (d) MM 38,1
  2. Outer (D) MM 65,09
  3. Width (B) MM 18,29
  4. Inner (d) Inch 1.5
  5. Outer (D) Inch 2.5625
  6. Width (B) Inch 0.72

Suffix description

  1. CZ Unknown

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number LM29749.LM29710CZ FAG
  4. Also known as LM29749.710CZ
    LM29749/710
    LM29749/LM29710
    LM29749-20024 / 710-20024
    LM29749-99401
    SET70
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.235

Product Properties

  1. Precision Standard Precision

Downloads and links

  1. Link to manufacturer Link to manufacturer
