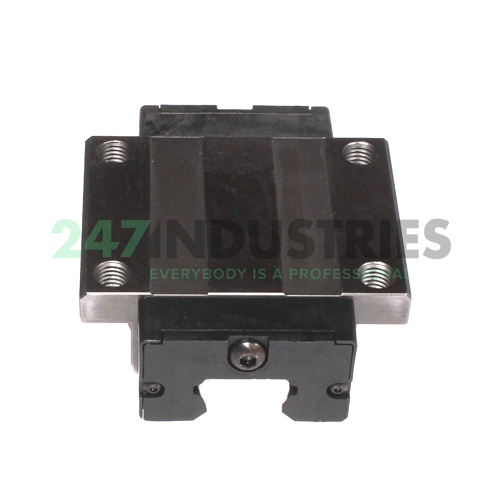

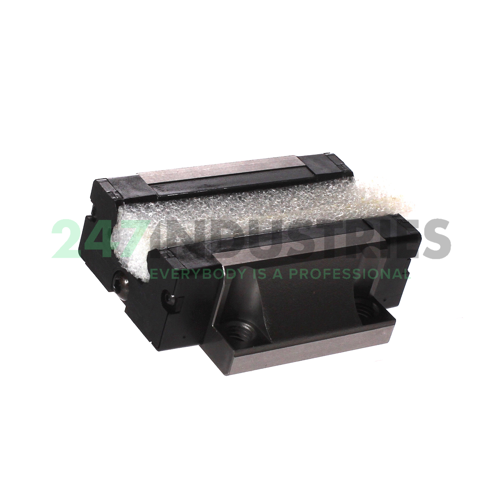

LLTHC30A-T0P5 SKF

All dimensions

1. Inner (d) MM 28
2. Outer (D) MM 90
3. Width (B) MM 100,4
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 3.5433
6. Width (B) Inch 3.9528

Suffix description

1. A Flange Normal. Standard Height
2. T0 Clearance (For Particularly Smooth-Running Guide Systems With Low Friction And Low External Influences. Designs With Clearance Are Only Available In The Accuracy Classes P5 And P3)
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number LLTHC30A-T0P5 SKF
4. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.1

Product Properties

1. Seal No Seal
