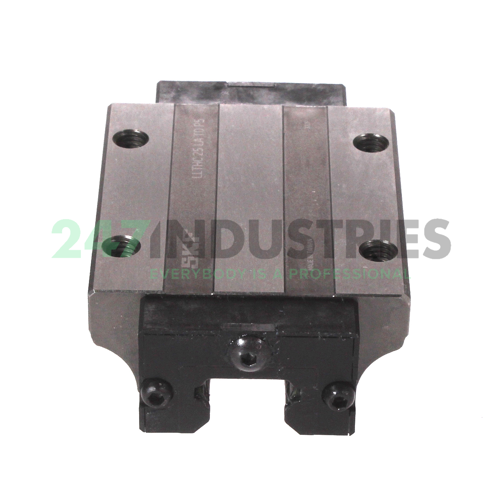

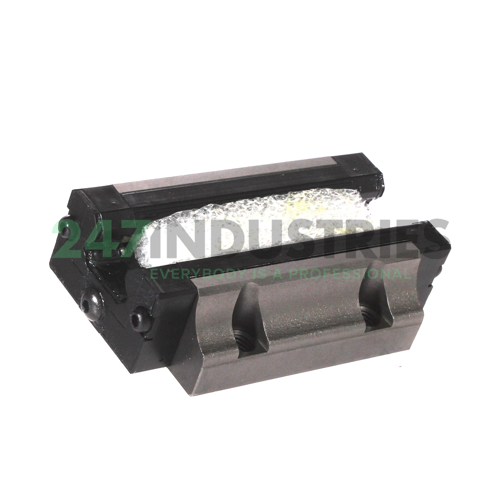

LLTHC25LA-T0 P5 SKF

All dimensions

1. Inner (d) MM 23
2. Outer (D) MM 70
3. Width (B) MM 106,5
4. Inner (d) Inch 0.9055
5. Outer (D) Inch 2.7559
6. Width (B) Inch 4.1929

Suffix description

1. LA Flanged Carriage, Extended Length, Standard Height
2. T0 Clearance (For Particularly Smooth-Running Guide Systems With Low Friction And Low External Influences. Designs With Clearance Are Only Available In The Accuracy Classes P5 And P3)
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number LLTHC25LA-T0 P5 SKF
4. Also known as M/P010666

5. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.72

Product Properties

1. Seal No Seal
