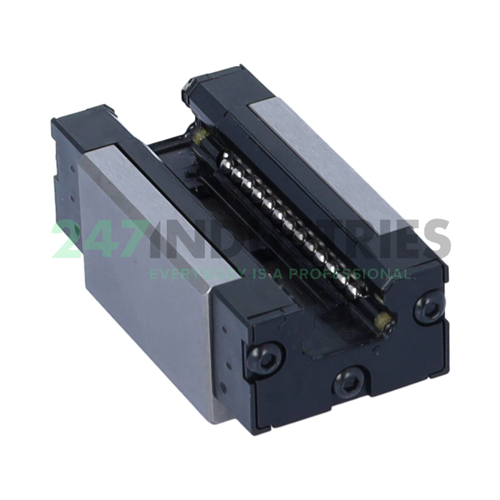

LLTHC 15 R-T0 P5 Ewellix

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 34
3. Width (B) MM 63,3
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.3386
6. Width (B) Inch 2.4921

Suffix description

1. R Slim-Line Carriage, Standard Length, Extended Height
2. T0 Clearance (For Particularly Smooth-Running Guide Systems With Low Friction And Low External Influences. Designs With Clearance Are Only Available In The Accuracy Classes P5 And P3)
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 16 pcs
2. Brand Ewellix
3. Item number LLTHC 15 R-T0 P5 Ewellix
4. Also known as M/P010702

5. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.19

Product Properties

1. Seal No Seal
