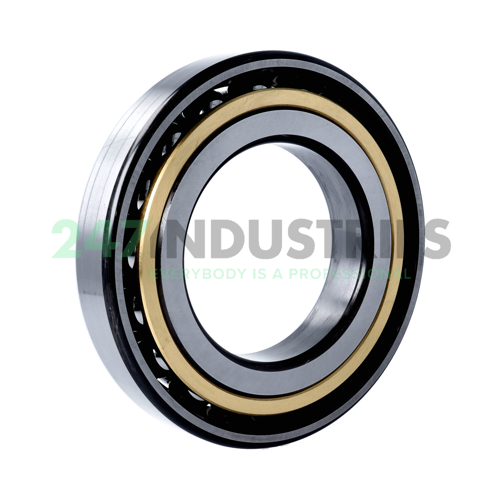

LJT4MB RHP

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 184,15
3. Width (B) MM 31,75
4. Inner (d) Inch 4
5. Outer (D) Inch 7.25
6. Width (B) Inch 1.25

Suffix description

1. MB Machined Brass Cage, Centered On The Inner Ring

Technical details

1. Availability 0 pcs
2. Brand RHP
3. Item number LJT4MB RHP
4. EAN 00747023004454
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 3.58

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle Standard Contact Angle
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
