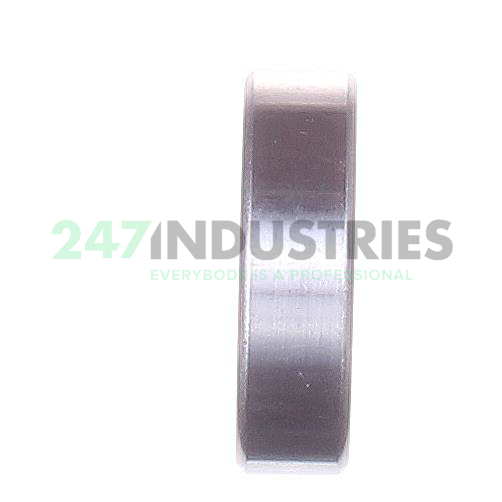

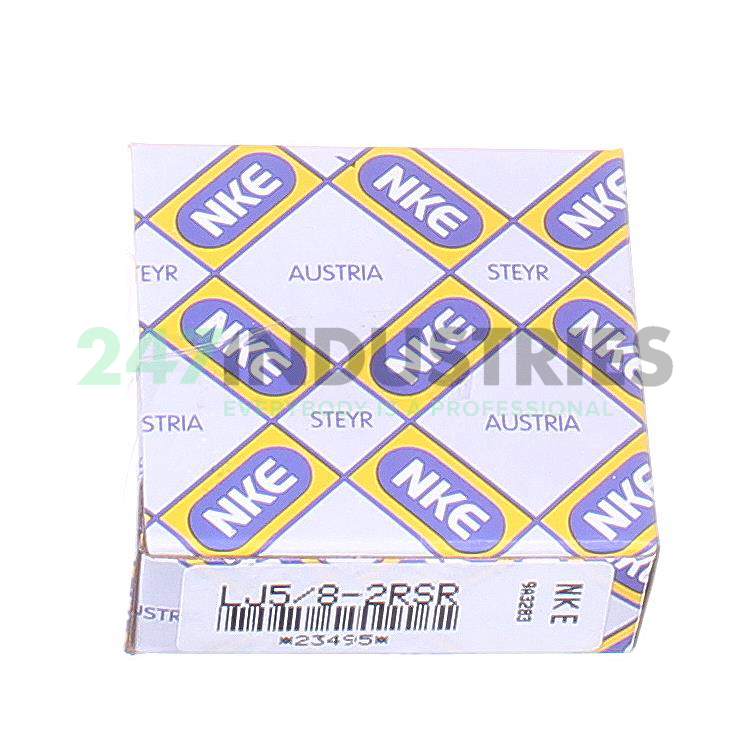

LJ5/8-2RSR NKE

All dimensions

1. Inner (d) MM 15,88
2. Outer (D) MM 39,69
3. Width (B) MM 11,11
4. Inner (d) Inch 0.6250
5. Outer (D) Inch 1.5625
6. Width (B) Inch 0.4375

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 166 pcs
2. Brand NKE
3. Item number LJ5/8-2RSR NKE
4. Also known as RLS5-2RS1

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
