Guideway LFSR, solid profile, curved guideway
| Stock |
|
| Brand | INA |
| Article number | LFSR32-100/360-ST INA |
| Outside diameter | 32,00mm |

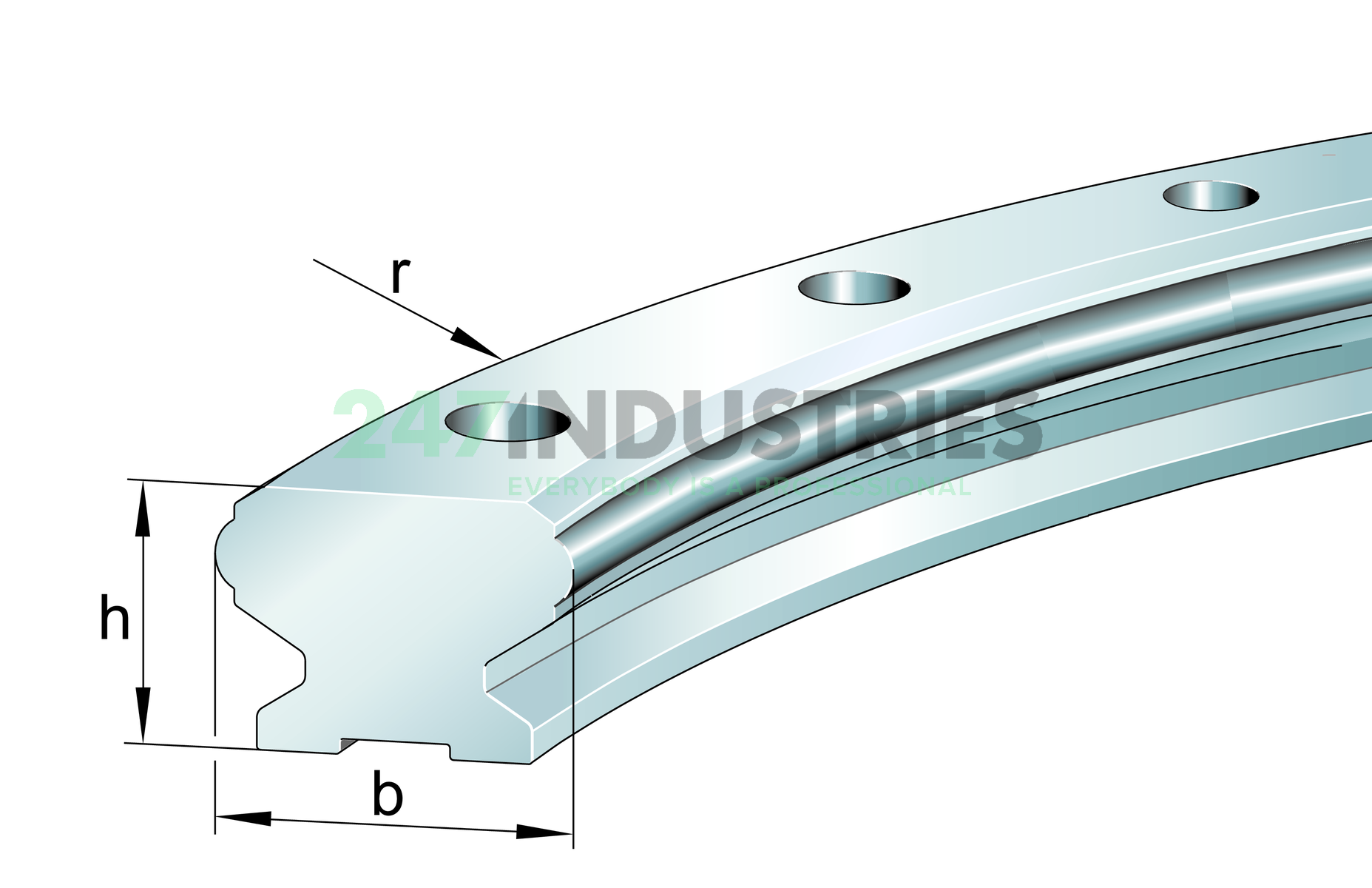

The LFSR32-100/360-ST INA is a curved steel profile with two raceway shafts for use with INA LFDL carriages. Use this profile series to construct curved, oval and circular guideways as desired. Straight INA profile sections will connect seamlessly to the curved parts. The top side has fixing holes. The raceway shafts of INA profile sections must be lubricated even before initial operation. Lubrication is made easy with separately available lubrication- and wiper units for carriages. Frequency of lubrication of shafts depends on the conditions of use.
Using INA LFS profiles, you can design a guidance system where all parts fit together seamlessly. Each section will exceed the strict tolerances of DIN EN 120120. You will be guaranteed of dimensions that are exactly right. No surprises during assembly or use.
