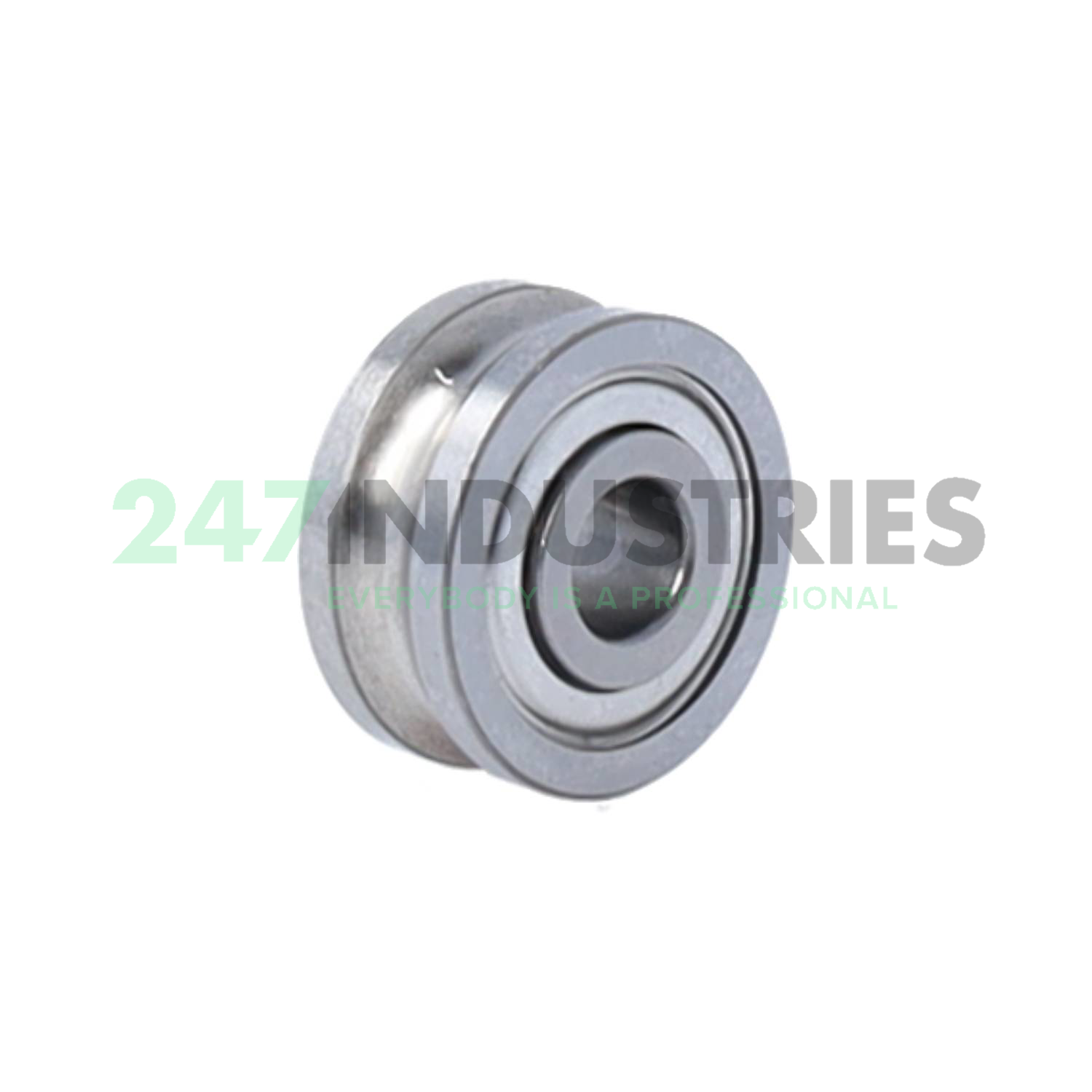

Track rollers LFR, locating bearing track rollers
| Stock |
|
| Brand | INA |
| Article number | LFR50/5-4-2Z-HLC INA |
| Inside diameter | 5,00mm |
| Outside diameter | 16,00mm |
| Width | 8,00mm |
The LFR50/5-4-2Z-HLC INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring. With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.
The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers are self-lubricating and maintenance-free during their service-life.
