Track rollers LFR, non-locating bearing track rollers, contact seals on both sides
| Stock |
|
| Brand | INA |
| Article number | LFR2204-10-2RSR-RNA INA |
| Inside diameter | 25,00mm |
| Outside diameter | 47,00mm |
| Width | 20,00mm |

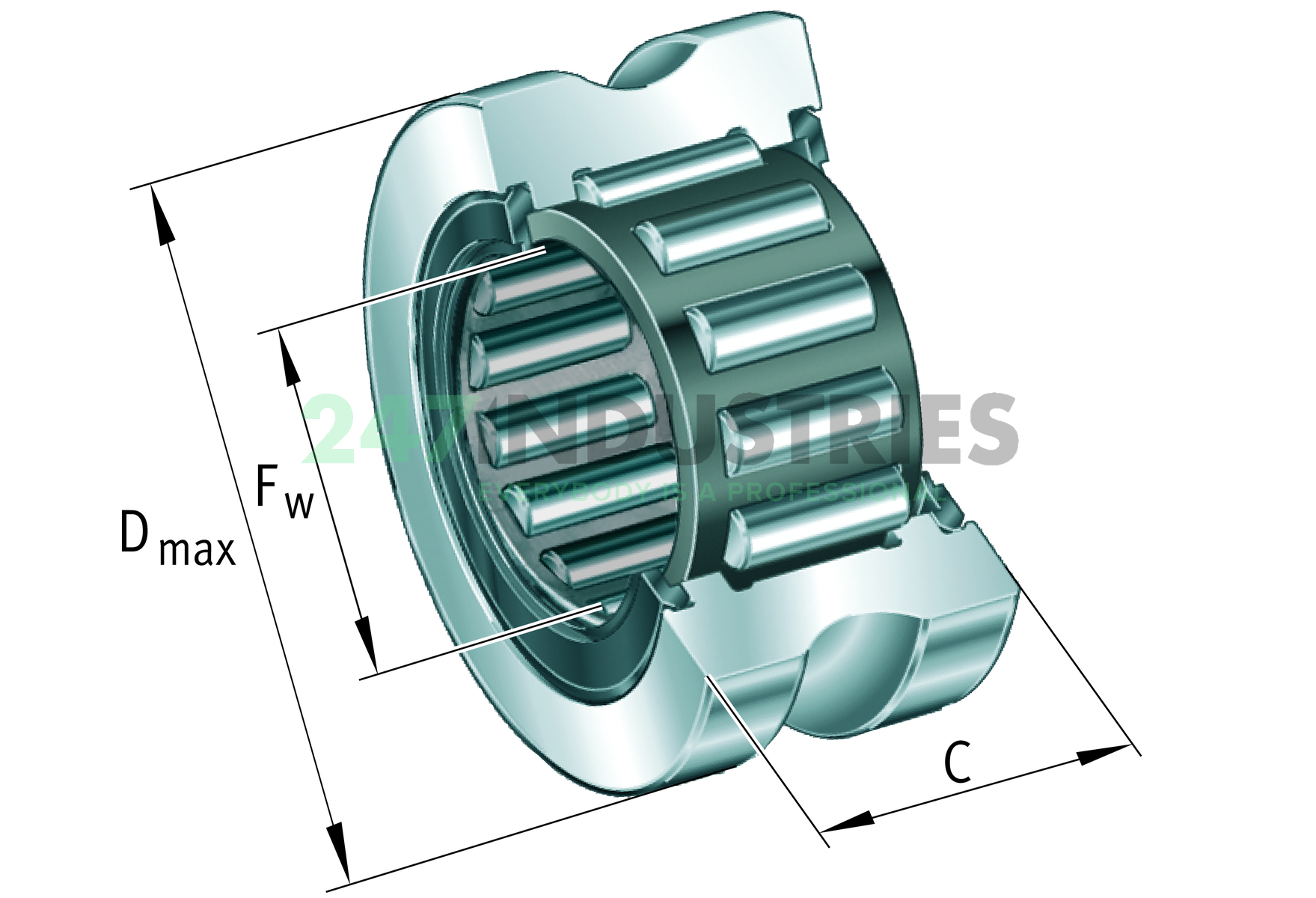

The LFR2204-10-2RSR-RNA INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring. With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.
The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers are self-lubricating and maintenance-free during their service-life.
