Carriage LFL, open carriage, clearance-free
| Stock |
|
| Brand | INA |
| Article number | LFL20-SF-RB INA |
| Inside diameter | 0,00mm |
| Outside diameter | 55,00mm |
| Width | 20,50mm |

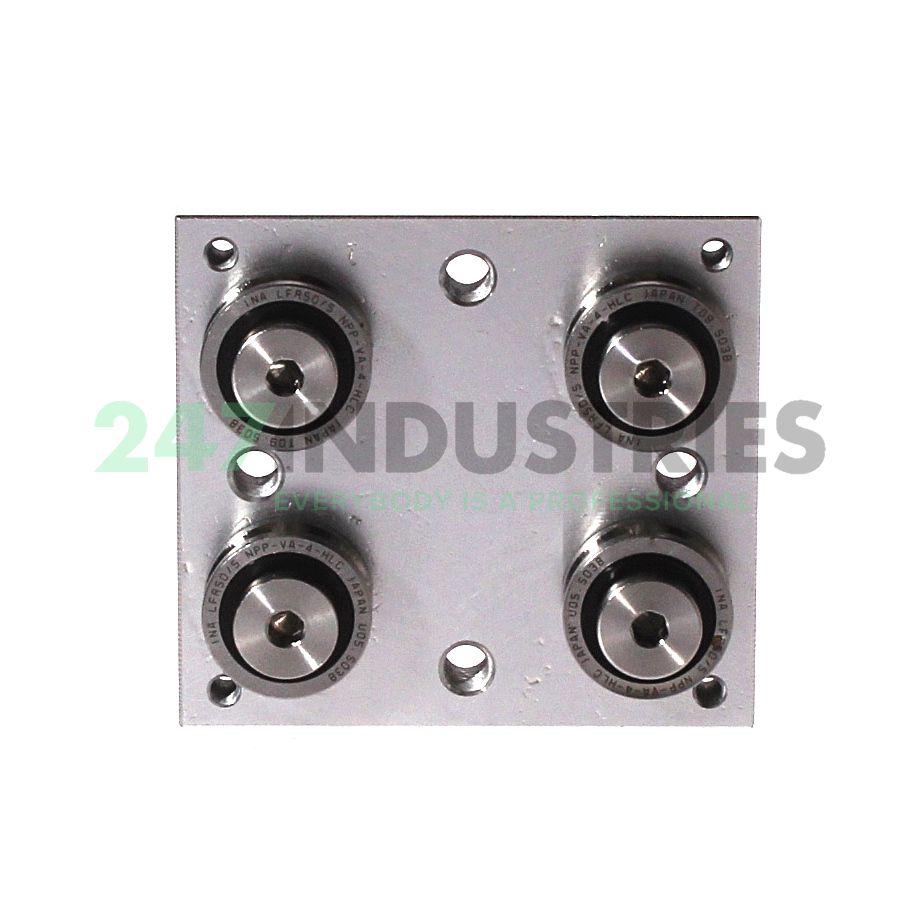

The LFL20-SF-RB INA is an open carriage with a simple, solid design. This model with corrosion-resistant design is an excellent choice for accurate track roller guidance systems with a simple set-up. The carriage consists of an anodized carriage plate, four bolts and four track rollers. The track rollers come pre-assembled.
LFL20-SF-RB INA carriages run silent and clearance-free on INA profiles, at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in conjunction with all rail segments of appropriate size except for curved LFSR rail segments. Thanks to the particularly accurate dimensions of INA rails no clearance adjustments are required. Additionally, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.
