LCJT40-XL-N-SML INA

€ 74,16 ex VAT
€ 89,74 incl. VAT
€ 89,74 incl. VAT
€ 74,16 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

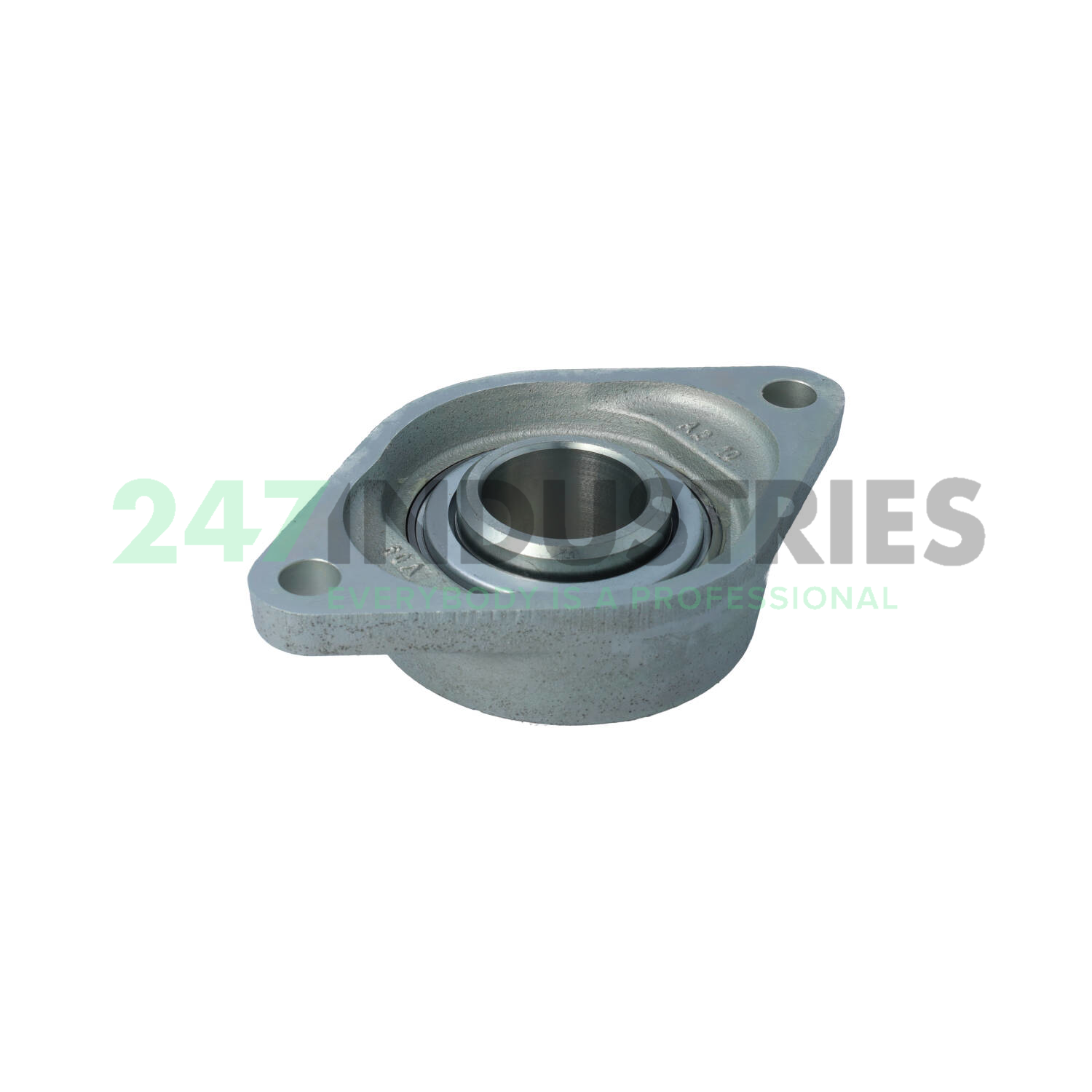

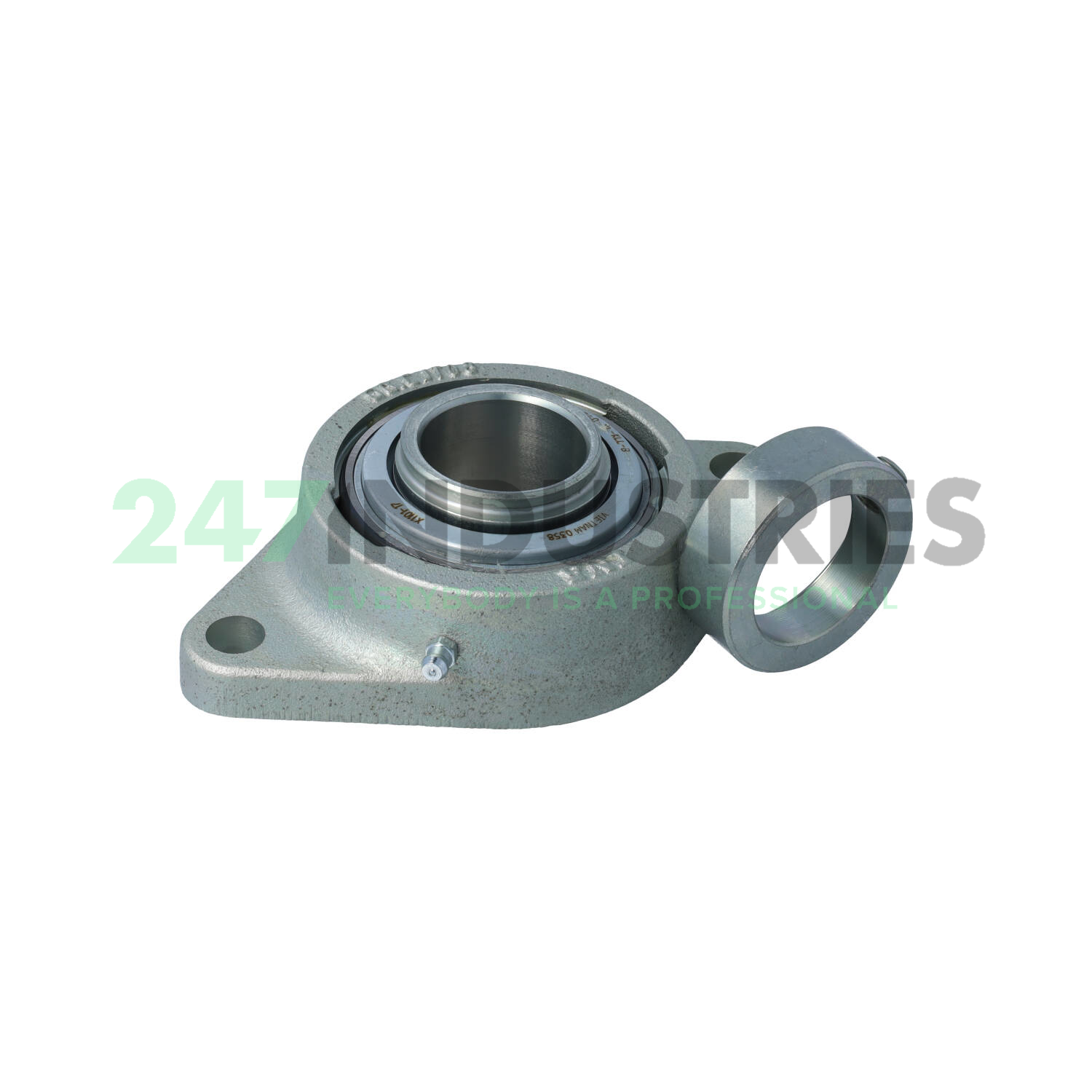

LCJT40-XL-N-SML INA

Housing unit

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number LCJT40-XL-N-SML INA
Inside diameter 40,00mm
Outside diameter 172,00mm
Width 59,10mm
Product description

The LCJT40-XL-N-SML INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: LCJT40-XL-N-SML INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40,00
  2. Outer (D) MM 172,00
  3. Width (B) MM 59,10
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 6.7717
  6. Width (B) Inch 2.3268
  7. Flange width (L) mm 105,00
  8. Height flange (H) mm 172,00
  9. Total height unit (U) mm 59,10

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. SML More Clearance Between Bearings And Housing, This Has No Influence On The Item Without The Suffix SML

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number LCJT40-XL-N-SML INA
  4. Also known as 0008578070319
    LCJT40-N-SML
  5. EAN 4012802798111
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.66

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "19800.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units LCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, L seals, for temperatures from -40°C to +180°C

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
