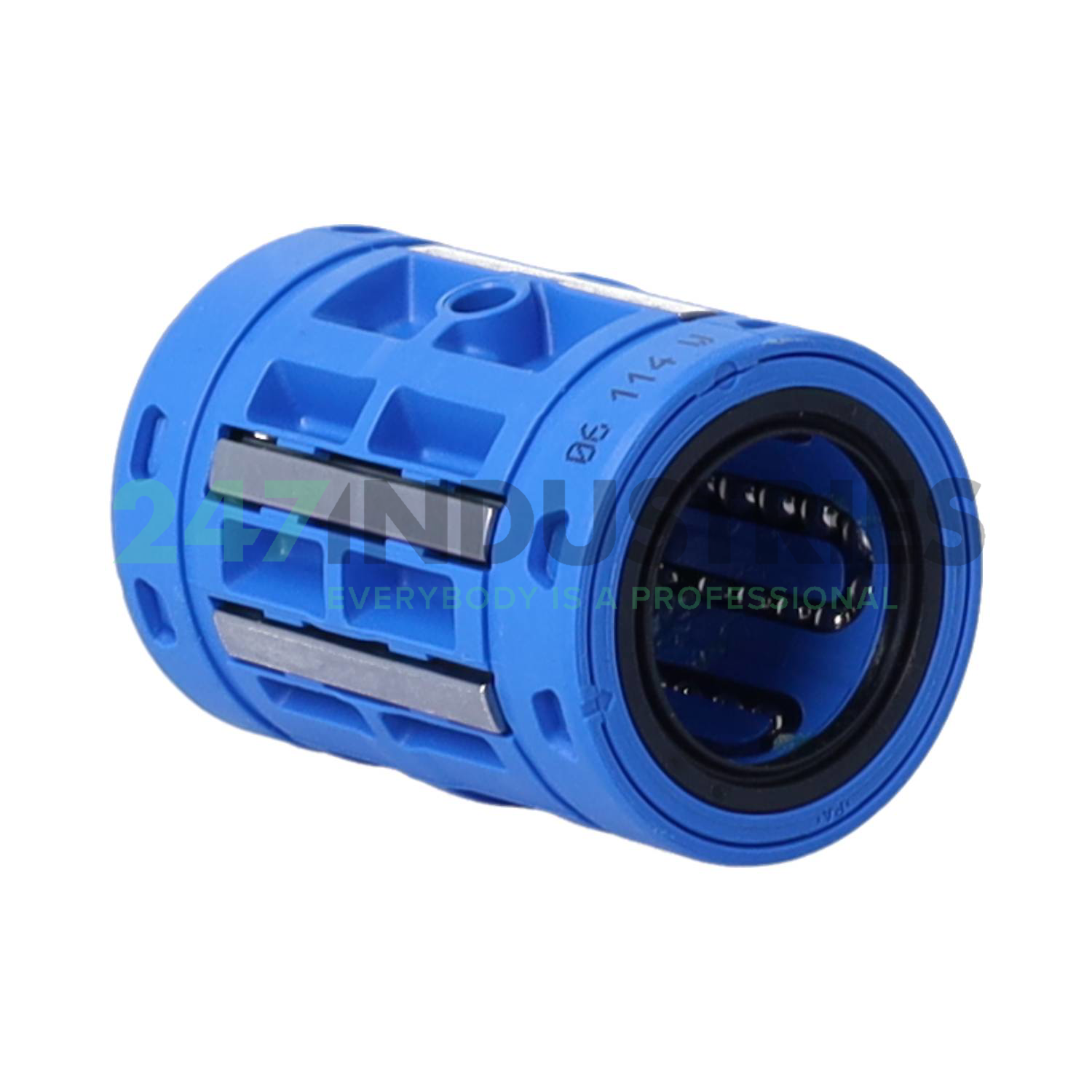

LBCR16D-2LS Ewellix

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 26
3. Width (B) MM 36
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 1.0236
6. Width (B) Inch 1.4173

Suffix description

1. D D-Type (Blue)
2. 2LS LS Contact Seal On Both Sides Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand Ewellix
3. Item number LBCR16D-2LS Ewellix
4. Also known as KB16-PP

5. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.0475

Product Properties

1. Seal 2L - LS-seal at Both Sides
